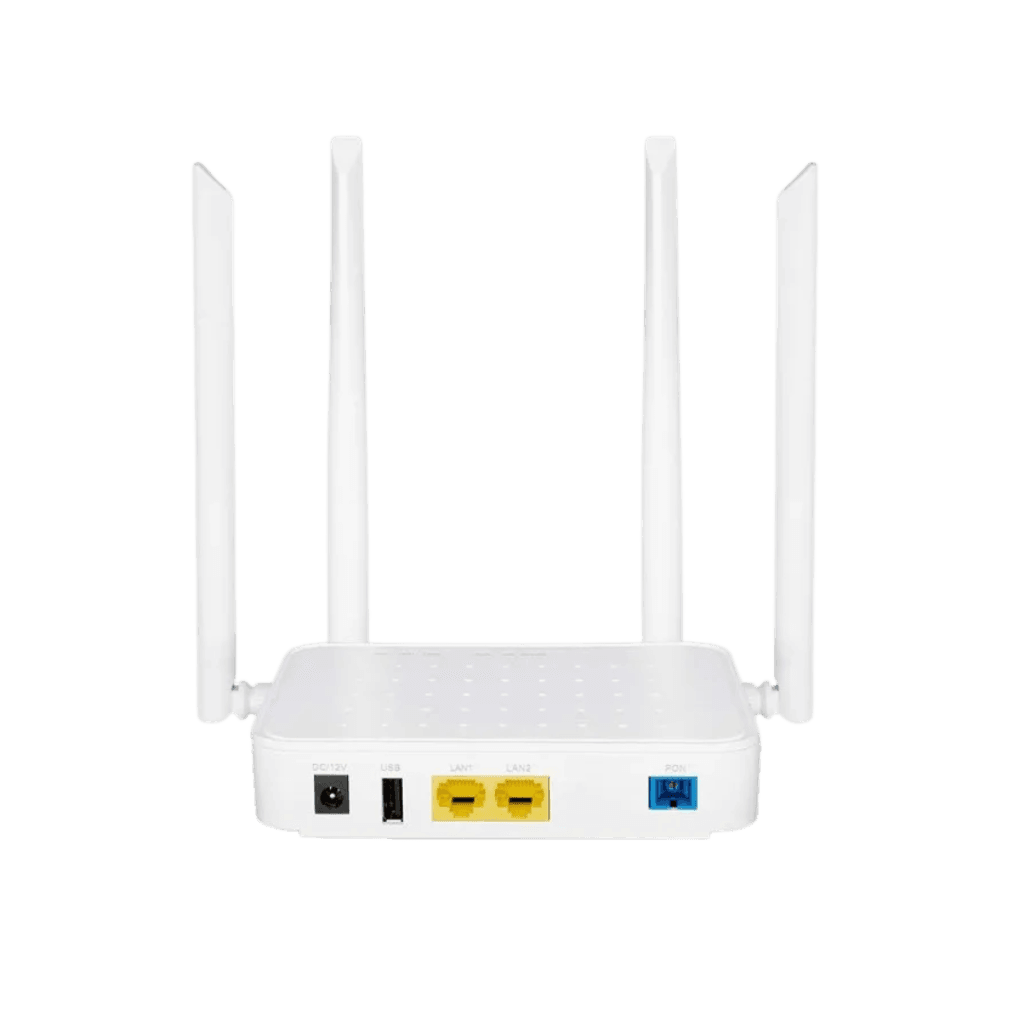

BDCOM GP1705-2G is a smart HGU with integrated wireless, VoIP and CATV function.
BDCOM GP1705-2G is oriented for the integrated multi-service network in telecom operator network.
ITU-T G.984/G.988
IEEE802.3ah
GBT33845-2017, YD/T 1475-2006
IEEE 802.1Q, VLAN
ITU-T Y.1291
4K VLAN
Port based VLAN
IEEE 802.1Q VLAN
Tag/Transparent/Aggregation/Trunk/Translation mode VLAN
CTC2.0 defined VLAN
DHCP server/client
Routing/Bridging/Hybrid mode
DNS, DDNS
PPPOE
NAT/NAPT
AES128 algorithm encryption
MAC/Loid/Hybrid authentication
Backpressure flow control (half-duplex)
IEEE 802.3x flow control (full duplex)
Against Head of Line mechanism
IEEE 802.1p, CoS
Four priority queues on each port
WR, SP and FIFO queue schedule algorithms
Port rate limit
SLA and DBA
Management modes including CLI, HTTP, SNMP, TR069 and TELNET
Software upgrade through TFTP and WEB, OMCI, etc.
Local or server syslog
MAC address number limit
MAC filter
Port protect
IGMP-Snooping
CTC defined dynamic multicast function
MLD-Snooping
Multicast group limitation
Multicast fast-leave
Loop detection
Dying-Gasp
TX/RX optical power alarm
802.11b/g/n/ac
2x2 MIMO
Multi SSID
SSID encryption
Wireless channel (configurable)
