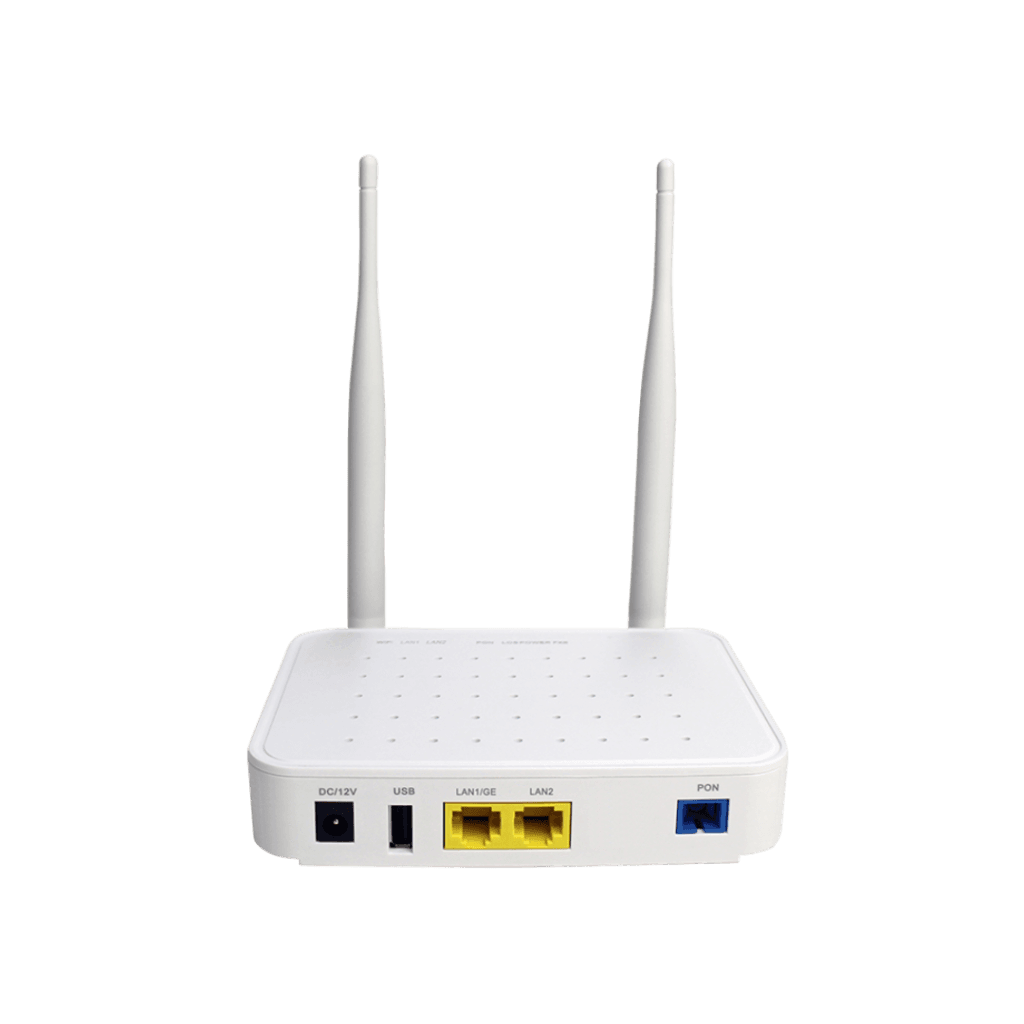

xPON FTTH Home Gateway Unit(HGU)

GP1704-2F-E

BDCOM GP1704 Series is a smart HGU with integrated wireless, VoIP and CATV function.

  • Supports the PON transmission rate of downlink 2.5Gbps/ uplink 1.25Gbps.
  • For ensuring the secure service carrying ability of ONU, BDCOM has developed techniques including VLAN, STP, port isolation, ACL, QoS and Broadcast Storm Control.
PON ports1 SC/APC
UNI ports1-Port Gigabit RJ45
1-Port 100M RJ45
1-Port RF(British system)
WIFI300Mbps
Optical power
TX power0.5~5dBm
RX sensitive< -28dBm
CATV
TX level≥70dbuv
Receiver AGC Range-15~-5dbm
AC adaptorInput: 100-240V AC
Output: 12V/1A
Max. consumption (W)10
Chassis
Dimensions (WxDxH mm)140 x 105 x 30
Weight(Kg)(empty)0.2
Package
Dimensions (WxDxH mm)277 x 176 x 38
Weight (Kg)0.3
Operating Temperature Humidity-0℃ -45℃ 10%~85% (non-condensing )
Storage Temperature Humidity-40℃ -85℃ 5%-95% (non-condensing )
AccessoriesPower adaptor

Standards

ITU-T G.984/G.988,

IEEE802.3ah

GBT33845-2017, YD/T 1475-2006

IEEE 802.1Q, VLAN

ITU-T Y.1291

VLAN

4K VLAN

Port based VLAN

IEEE 802.1Q VLAN

CTC2.0 defined VLAN

IP Service

DHCP server/client

Routing/Bridging/Hybrid mode

DNS, DDNS

PPPOE

NAT/NAPT

QoS

Backpressure flow control (half-duplex)

IEEE 802.3x flow control (full duplex)

Against Head of Line mechanism

IEEE 802.1p, CoS

Four priority queues on each port

WR, SP and FIFO queue schedule algorithms

Port rate limit

SLA and DBA

Management

Management modes including CLI, HTTP, SNMP, TR069 and TELNET

Software upgrade through TFTP and WEB, OMCI, etc.

Local or server syslog

GPON Service

AES128 algorithm encryption

MAC/Loid/Hybrid authentication

Voice Service

SIP, T.38 FAX

Three-way calling

Call waiting

Hot-line calling

Network Security

MAC address number limit

MAC filter

Port protect

Multicast

IGMP-Snooping

CTC defined dynamic multicast function

MLD-Snooping

Multicast group limitation

Multicast fast-leave

Reliability

Loop detection

Dying-Gasp

TX/RX optical power alarm

Wireless

802.11 b/g/n

802.11 ac(-22A models)

2x2 MIMO

Multi SSID

SSID encryption

Wireless channel (configurable)
