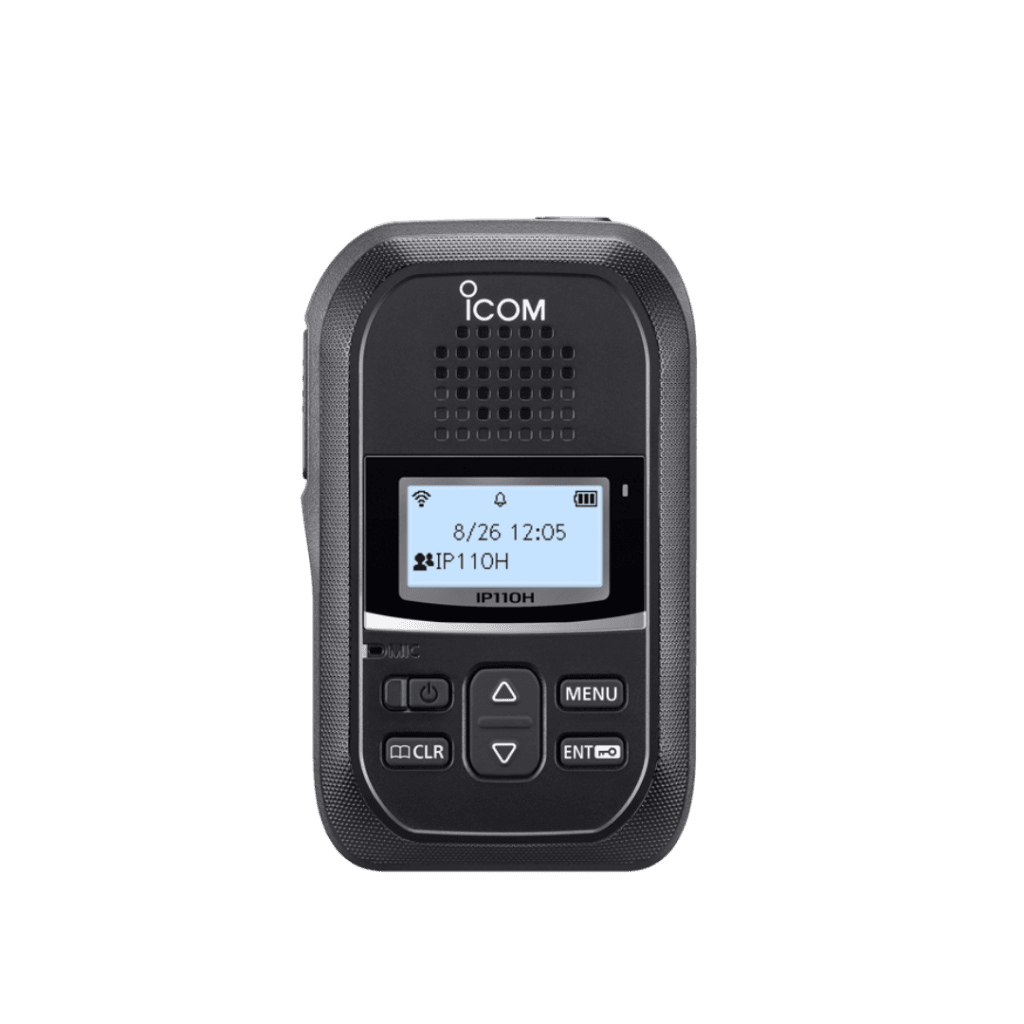

IP110H

Wi-Fi TRANSCEIVER

The Icom IP110H is a compact and lightweight WLAN radio designed for seamless indoor communication over Wi-Fi networks. It offers clear audio, secure encryption, and efficient push-to-talk functionality, making it ideal for businesses, warehouses, and hospitality environments. With its long battery life and easy integration, the IP110H ensures reliable and cost-effective team communication.

WLAN Radio System Features

Scalable System Using Wireless LAN Network

Deploying wireless access points over an IP network, the WLAN radio system can expand the communication range.

License-Free Communication

The WLAN radio uses common wireless LAN network frequencies, which do not need communication fees for running the system.

Communication with Dispersed Sites

When connected over the Internet VPN, an WLAN radios can communicate between dispersed sites.

Simultaneous TalkListen Function

The WLAN radio provides full duplex communication like a telephone conversation and one-to-many communication.
TalkListen works with or without external headset.

IP110H Features

・All, Group, Talkgroup, Individual and Telephone Calls

・1000 mW loud audio from internal speaker

・Optional Bluetooth® headset, VS-3

・IP67 / IP54 waterproof and dust-tight

・Battery can be charged through the USB Type-C™ cable

・More than 20 hours of operating time (Tx 1: Rx 1: Stand-by 8 duty ratio)

・WPA2, WPA-Enterprise security

・Other features

  • Audio is recorded for instant review
  • Vibration alert function
  • Motion/Stationary detection, man down and lone worker functions
  • Over-the-Air programming
  • Compatible with the IP100H WLAN radio

Specifications

IP110H
Wireless Standards

IEEE802.11 a/b/g/n/ac

Frequency Range *12.4–2.4835 GHz, 5.15–5.35, 5.47–5.85 GHz
SecurityWEP (64/128-bit), WPA2-Enterprise, WPA-Enterprise, WPA-PSK, WPA2-PSK
AF Output Power1000 mW typ. (Internal SP) / 300 mW typ. (External SP)
Operating Temperature

–10°C to +60°C, +14°F to +140°F

Charging Temperature0°C to + 60°C, + 32°F to + 140°F
Dimensions57 × 96.9 × 25.1 mm, 2.2 × 3.8 × 1.0 in (W × H × D; Projections are not included)
Weight (approximate)146 g, 5.2 oz
Operating TimeMore than 20 hours (TX 1 : RX 1 : Stand-by 8 duty ratio)
Charging Time4 hours (With BC-257 and BC-228)
Supplied AccessoriesOPC-2480 USB charger cable, MBB-1 belt clip

*1 Authorized frequency range and channels may differ depending on the country.

You can scroll

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 G
MethodProcedure
Low Pressure

500.5

I, II

High Temperature

501.5

I, II

Low Temperature

502.5

I, II

Temperature Shock

503.5

I-C

Solar Radiation

505.5

I

Rain Blowing/Drip

506.5

I, III

Humidity

507.5

II

Salt Fog

509.5

Dust Blowing

510.5

I

Immersion

512.5

I

Vibration

514.6

I

Shock

516.6

I, IV

Also meets equivalent MIL-STD-810 -C, -D, -E and -F.


Ingress Protection Standard
Dust & Water

IP67 (Dust-tight and Immersion)
IP54 (Dust and Water resistant)

You can scroll

All stated specifications are subject to change without notice or obligation.
