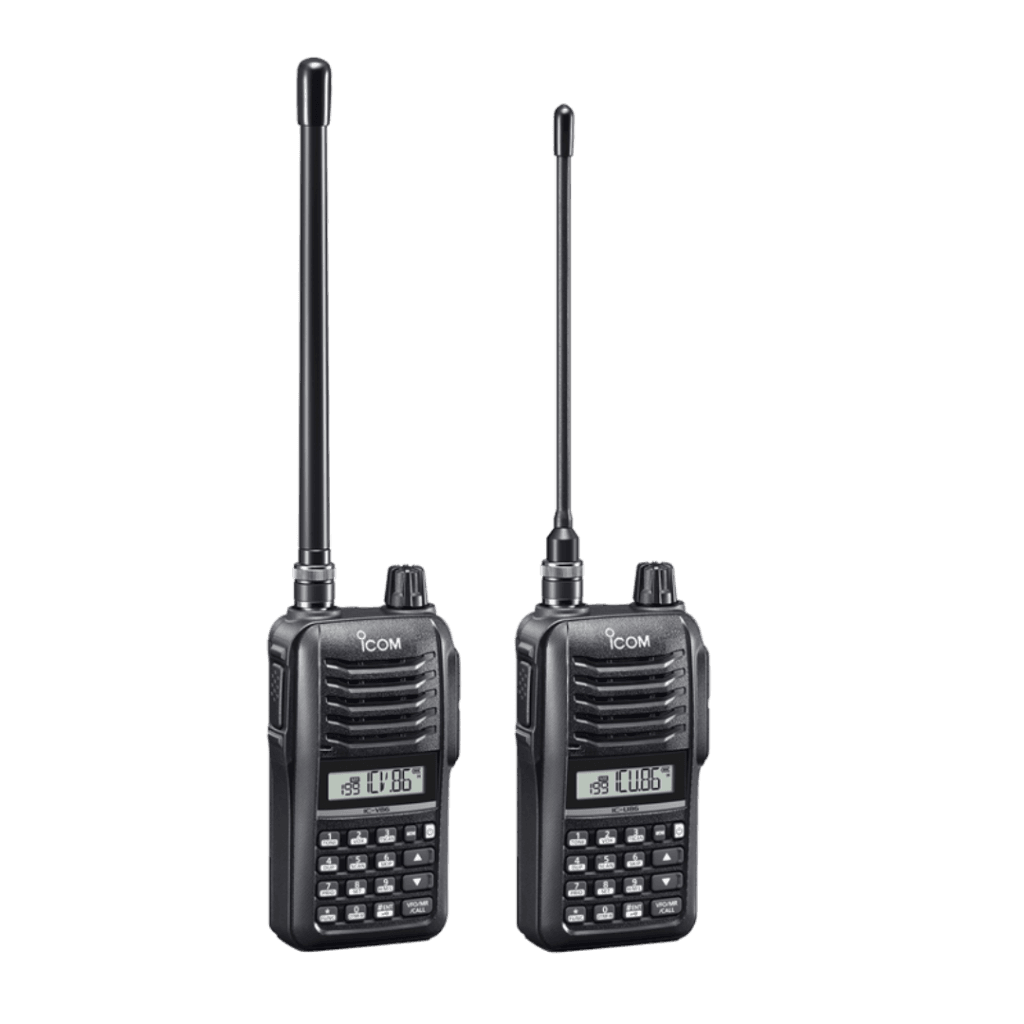

IC-V86/IC-U86

VHF/UHF TRANSCEIVERS

The Icom IC-V86 (VHF) and IC-U86 (UHF) are rugged, high-powered handheld radios designed for reliable communication in demanding environments. With an impressive 7-watt output, loud 1500mW audio, and long battery life, they ensure clear and uninterrupted communication. Built for durability, these radios are ideal for outdoor adventures, security teams, and professional use where strong, dependable connectivity is essential.

7 W Output Power and 1500 mW Audio

* Wide open space. Approximate, comparing the IC-V86 with the IC-V80. Communication range may differ depending on operating environment or weather conditions, etc. 7 W output power is only for theIC-V86.

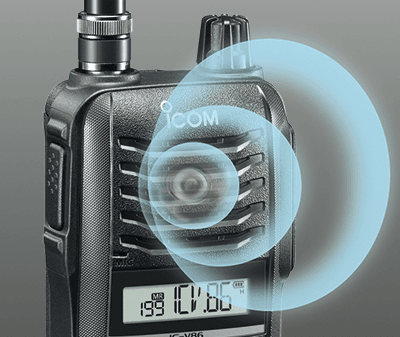

1500 mW powerful audio

1500 mW Powerful Audio and 1.5 Times* Higher Sound Pressure

* Approximate, comparing the IC-V86 with the IC-V80.

Optional 1500 mW Speaker-Microphone, HM-222HLWP

The combination of the optional HM-222HLWP and the IC-V86/U86* also provides 1500 mW (typ.)  loud audio from the attached speaker-microphone.

* For the transceiver  with a "U" mark on the serial number label.

Dust-Protection, Water Resistance and a Tough Body
(IP54 and MIL-STD 810G)

19 hours* of Long Lasting Battery Life

* EX Hi power with BP-298. TX : RX : standby = 5 : 5 : 90 (3 sec. : 3 sec. : 54 sec. ) (The Power Save function is set to "P–S.16")

No PC Programming Necessary, Settings Changeable from the Radio*

* PC programming is also available.

Durable BNC Type Antenna Connector

Made in Japan Quality and Reliability

Other Features

  • Audio volume/VFO mode/Memory channel mode can be changed with the rotary knob
  • Supplied BC-240, battery charger with a charging control function that prolongs the life of the battery
  • Integrated VOX function
  • 200 memory channels, 1 Call channel and 6 scan edges
  • Built-in CTCSS and DTCS encoder/decoder
  • Priority, program, memory, skip and tone scanning

General

IC-V86IC-U86
Frequency range
(TX/RX guaranteed range)

TX: 144–148 MHz
RX: 136–174 MHz

TX: 430–450 MHz
RX: 400–472 MHz

Type of emissions

F2D, F3E (FM, FM-N)

Number of channels

207 channels (200 memory channels, 1 call channel and 6 scan edges)

Antenna impedance

50Ω

Power supply requirement

7.5V DC

Operating temperature range

–20 ˚C to +60 ˚C, –4 °F to +140 °F

Frequency stability

±2.5ppm (–20 ˚C to +60 ˚C, –4 °F to +140 °F)

Current drain

(For the transceiver  with a "U" mark on the serial number label)

TX
(EX Hi/Hi/Mid/Low)
1.6/1.4/1.0/0.5 A typicalEXP1: 1.6/1.5/1.0/0.5 A typ.
EXP2: 1.6/1.4/0.9/0.5 A typ.
RX
(Max. audio)

450 mA typ. (INT SP),
190 mA typ. (EXT SP, Single end)
450 mA typ. (EXT SP, BTL)

450 mA typ. (INT SP),
190 mA typ. (EXT SP, Single end)
450 mA typ. (EXT SP, BTL)

Dimensions (W×H×D)
(Projections not included)

58.6 × 112 × 30.5 mm,
2.3 × 4.4 × 1.2 in
(with BP-298)

Weight (Approximate)

300 g, 10.6 oz
(with BP-298, FA-B57V)

290 g, 10.2 oz
(with BP-298, FA-B57U)

You can scroll

Transmitter

IC-V86IC-U86
Output power
(EX Hi/Hi/Mid/Low)

7.0/5.5/2.5/0.5 W

5.5/4/2/0.5 W

Maximum frequency deviation

±5.0 kHz/±2.5 kHz (Wide/Narrow)

Spurious emissions

Less than –60 dB

External microphone connector

3-conductor 2.5 (d) mm (1/10")/2.2 kΩ

You can scroll

Receiver

IC-V86IC-U86
Sensitivity

–124 dBm typical

EXP1: –121 dBm typical
EXP2: –123 dBm typical

Squelch sensitivity

–126 dBm typical

EXP1: –123 dBm typical
EXP2: –125 dBm typical

Selectivity (Wide/Narrow)

75 dB typical/
70 dB typical

70 dB typical/
68 dB typical

Intermodulation

65 dB typical

Audio output power
(For the transceiver  with a "U" mark on the serial number label)
Internal SP

1500 mW typical (with 8 Ω load)

External SP

450 mW typical (single end)
1500 mW typical (BTL, HM-222HLWP connected)

External speaker connector

3-conductor 3.5(d)mm (1/8″)/8Ω

You can scroll

Applicable U.S. Military Specifications

Standard

MIL-810 G
MethodProcedure
Low Pressure500.5I, II
High Temperature501.5I, II
Low Temperature502.5I, II
Temperature Shock503.5I-C
Solar Radiation505.5I
Rain Blowing/Drip506.5I, III
Humidity507.5II
Salt Fog509.5
Dust Blowing510.5I
Vibration514.6I
Shock516.6I, IV

Also meets equivalent MIL-STD-810-C, -D, -E and -F.

You can scroll

Applicable IP Rating

Ingress Protection Standard
Dust and WaterIP54 (Dust-protection, water resistance)

All stated specifications are subject to change without notice or obligation

You can scroll

Supplied Accessories

  • BP-298/BP-264, battery pack*
  • BC-240, Desktop charger
  • BC-242, AC adapter
  • MB-124, belt clip
  • Antenna*

* May differ, depending on transceiver version
