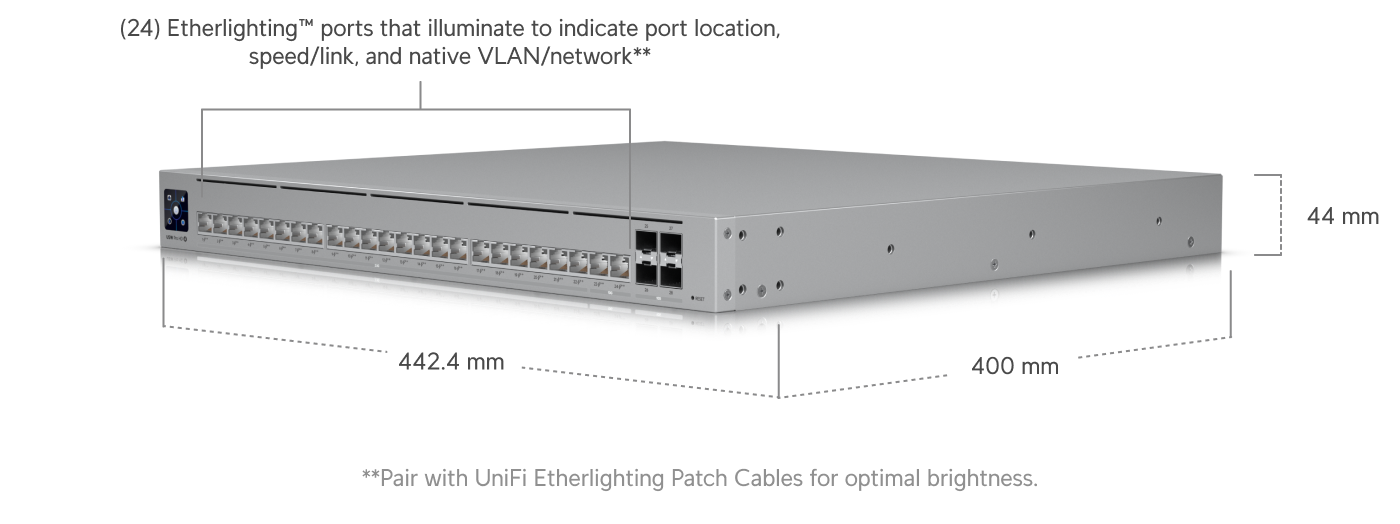

Dimensions
442 x 400 x 44 mm
(17.4 x 15.7 x 1.7")
2.5 GbE RJ45
22 (All PoE++)
(2.5G/1G/100M/10M)
10 GbE RJ45
2 (All PoE++)
(10G/5G/2.5G/1G/100M)
Max. PoE Output
Up to PoE++
Total PoE Availability
600W
Redundancy
DC Power Backup
Form Factor
Rack mount (1U)
Switching Capacity
230 Gbps
Total Non-Blocking Throughput
115 Gbps
MAC Address Table Size
32,000
DHCP Server (Local Networks)
Yes
Inter-VLAN Routing (Local Networks)
Yes
Static Routing (Local Networks)
Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
Yes
MAC-Based ACLs & Device Isolation
Yes
DHCP Snooping & Guarding
Yes
Multicast & Broadcast Rate Limiting
Yes
IP-Based ACLs & Network Isolation
Yes
MAC-Based Port Restriction
Yes
Max. PoE Wattage per Port by PSE
Max. Power Consumption
60W (Excluding PoE Output)
660W (Including PoE Output)
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 660W
Supported Voltage Range
100—240V AC
Weight
Without mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material
SGCC steel
Supported Rack Depth
600 - 1,200 mm
(23.6- 47.2" )
LCM Display
1.3" touchscreen
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
UniFi Network
Version 9.0.114 and later
