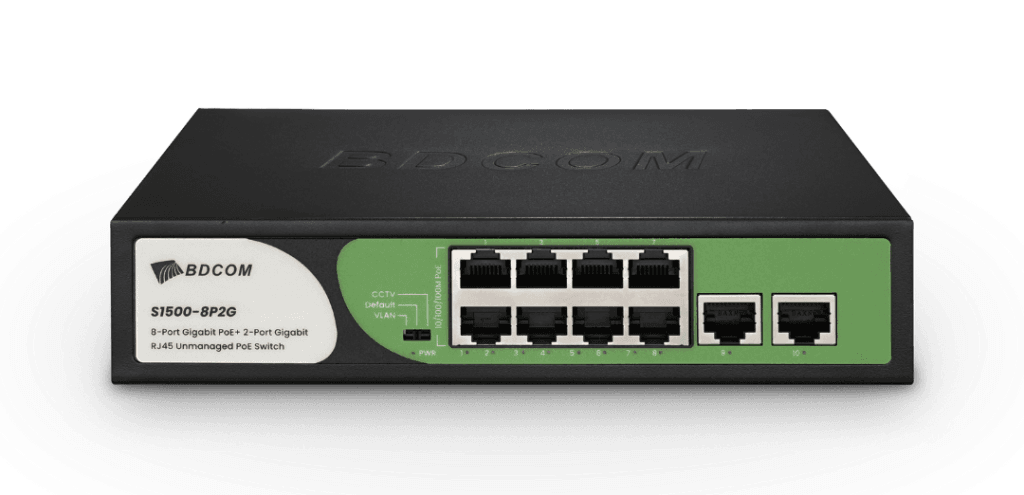

Unmanaged Full-Giga PoE+ Switch

S1500-8P2G

BDCOM S1500-P Unmanaged PoE series is no-brainer design for CCTV plug-&-play network with great stability and security.

Non-blocking switching architecture, and line-speed forwarding of all ports
Large buffer design, ensures smooth playback of high-definition videos
Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control

Switching capacity	20Gbps
MAC	2K
Buffer size	448Kb
PoE Port	8 Gigabit
Uplink RJ45	2 Gigabit
Dimensions (mm)	200x118x44
PoE budget	≤90W
PoE standard	802.3af/at, maximum output of 30W per port
Power supply	Built-in AC: 100~240V, 50/60Hz
Working mode	VLAN mode, Default mode, CCTV mode
Environment requirements	Operating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan	Fanless
Lightning protection	6KV
