Dimensions
442 x 325 x 87 mm (17.4 x 12.8 x 3.4")
Weight (Without Mounting Brackets)
9.2 kg (20.3 lb)

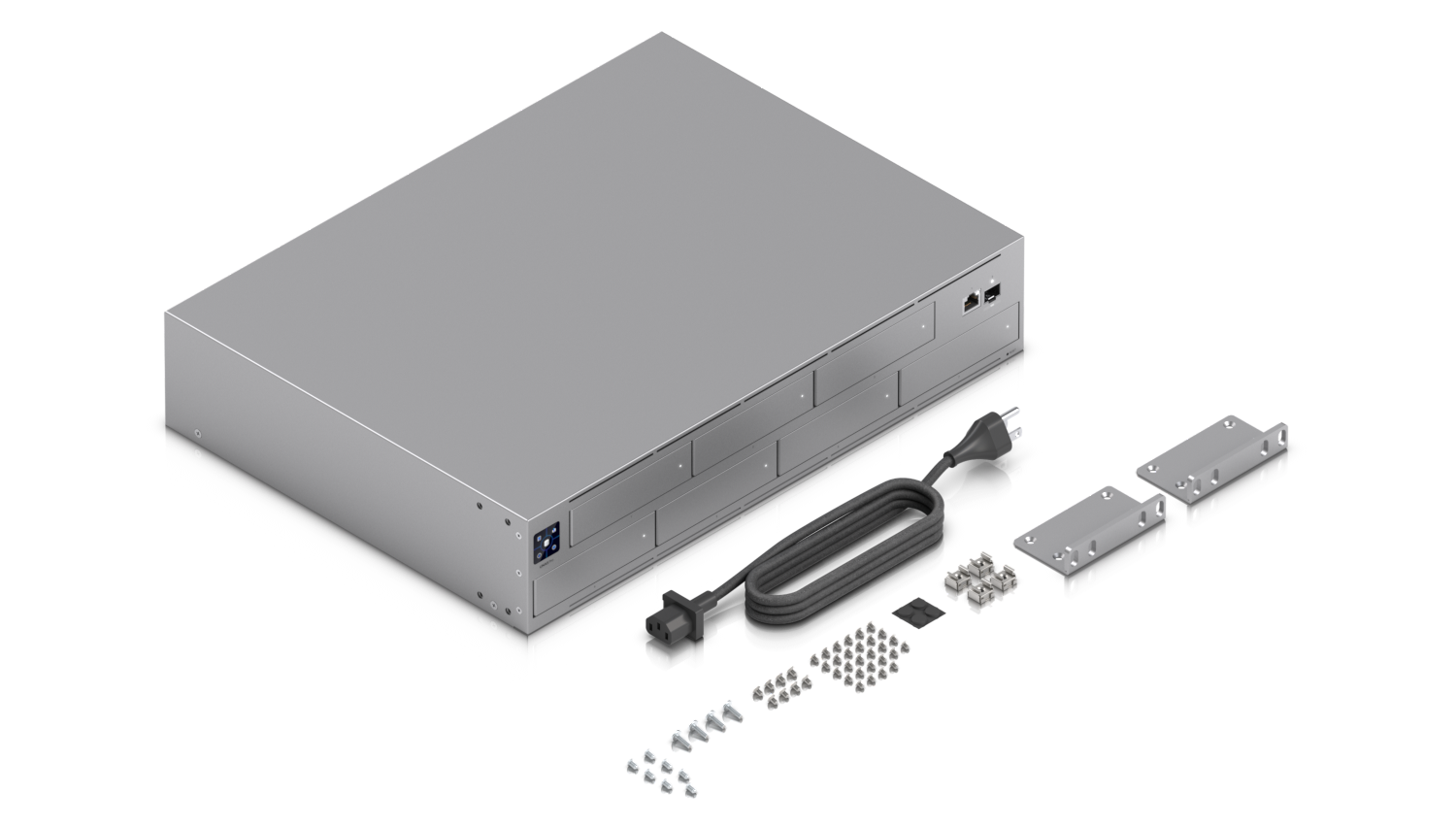

Weight (With Mounting Brackets)
9.5 kg (20.8 lb)
Enclosure Material
SGCC Steel
Processor
Quad-Core ARM® Cortex®-A57 at 1.7 GHz
Management Interface
Ethernet In-Band
Networking Interface
(1) GbE RJ45 port, (1) 1/10 GbE SFP+ port
RF Interface
Bluetooth 4.1
Power Method
(1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 13.91A
Power Supply
AC/DC, internal, 200W
Supported Voltage Range
100–240V AC
Max. Power Consumption
160W
Max. Power Budget for Drives
135W
ESD/EMP Protection
Air: ±12kV, contact: ±8kV

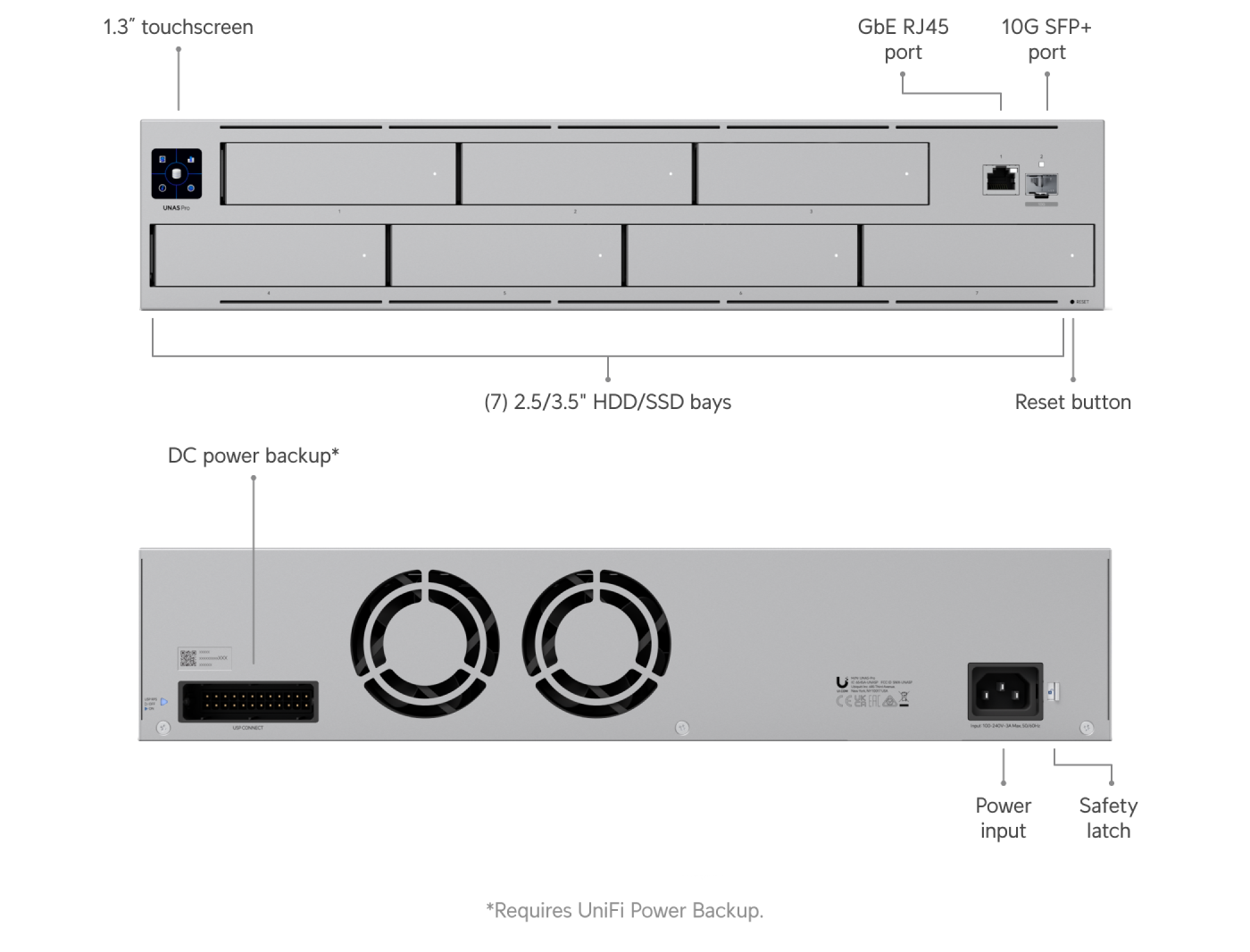

LCM Display
(1) 1.3" touchscreen
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
FCC, CE, IC
Ethernet
Green: 1 Gbps, Amber: 10/100 Mbps
SFP+
White: 10 Gbps, Green: 1 Gbps
HDD
White: disk detected, Amber: disk error
System
Green: normal, Amber: system error
Power
Green: power on, Amber: power failure
Temperature
Green: normal, Amber: overheating
Reset Button
System reset button to initiate reset
