Dimensions

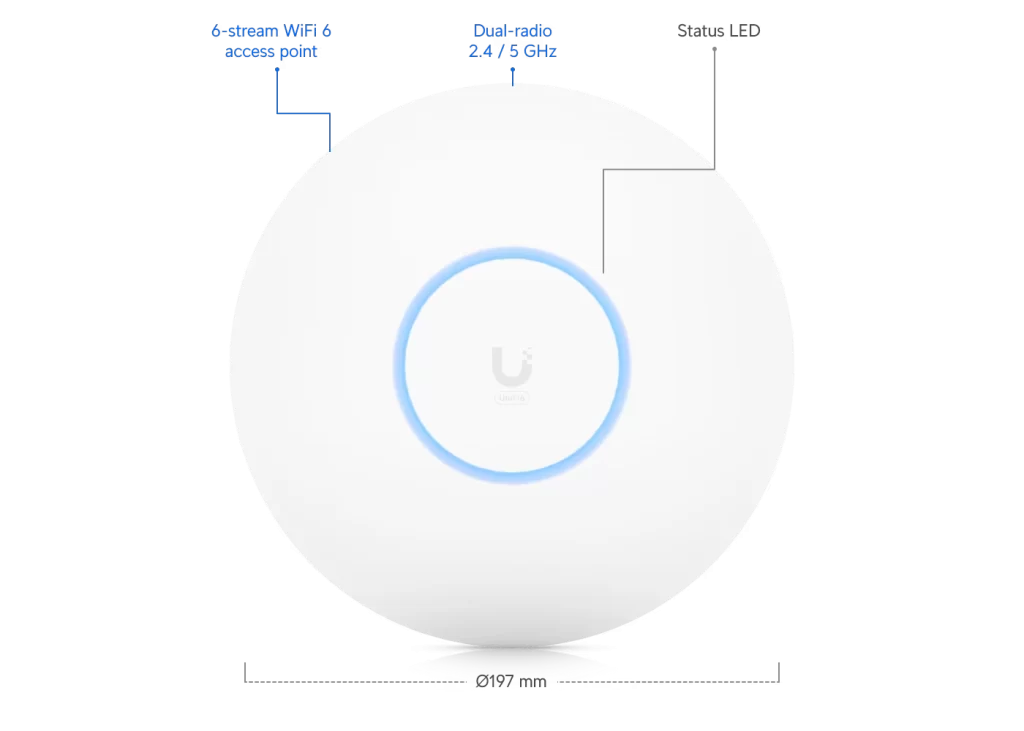

Ø197 x 35 mm
(Ø7.8 x 1.4")
Coverage Area
140 m² (1,500 ft²)
Mounting Locations

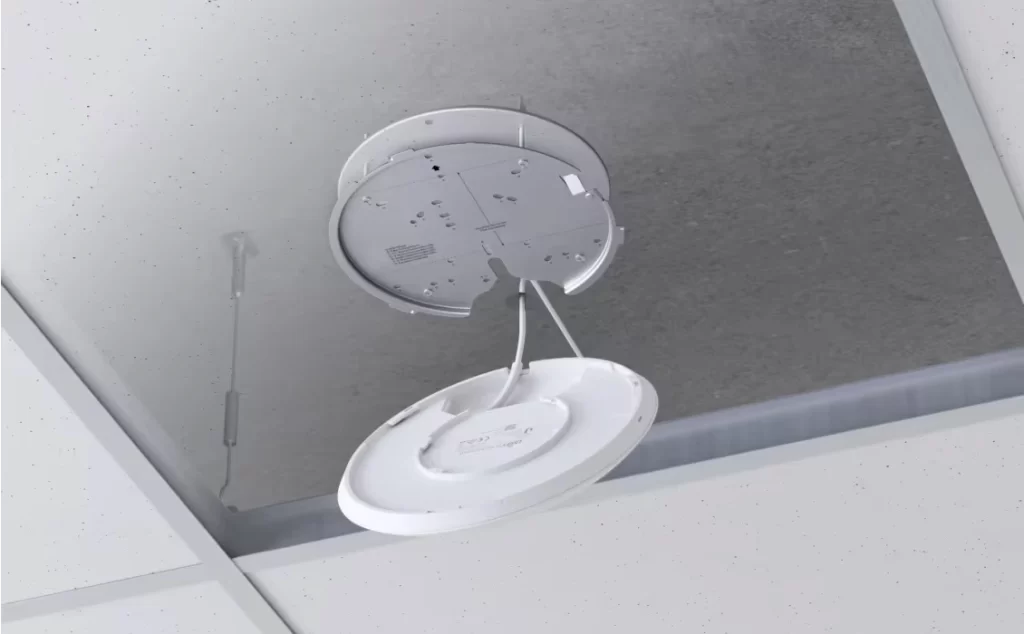

Ceiling, wall
Mounting Plate

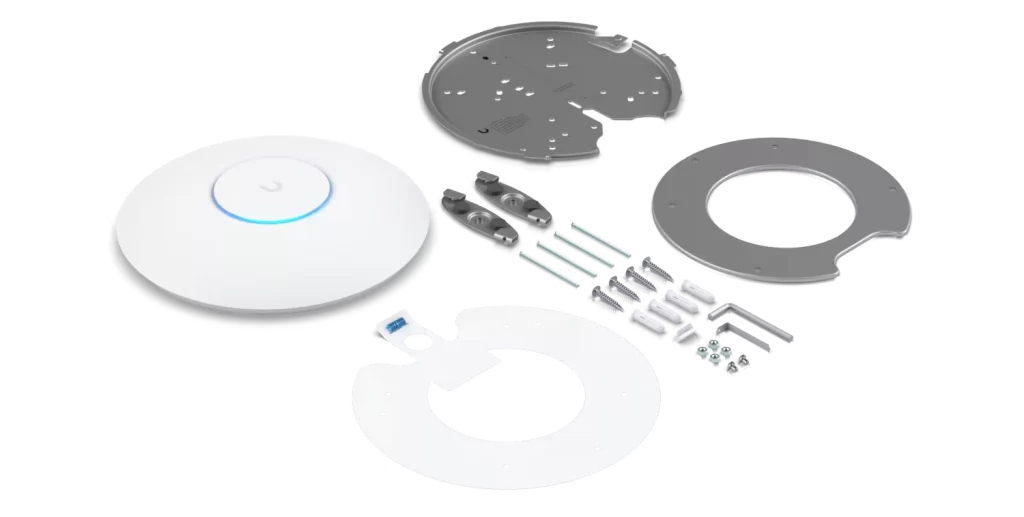

Pro mounting plate (Included)
5 GHz
4 x 4 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (UL MU-MIMO)
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11v BSS Transition Management
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Custom Branding Landing Page
Yes
Voucher Authentication
Yes
Payment-Based Authentication
Yes
External Portal Server Support
Yes
Password Authentication
Yes
Guest Network Isolation
Yes
Private Pre-Shared Key (PPSK)
Yes
Client Device Isolation
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes
Max. Power Consumption
13W
Supported Voltage Range
44—57V DC
Networking Interface

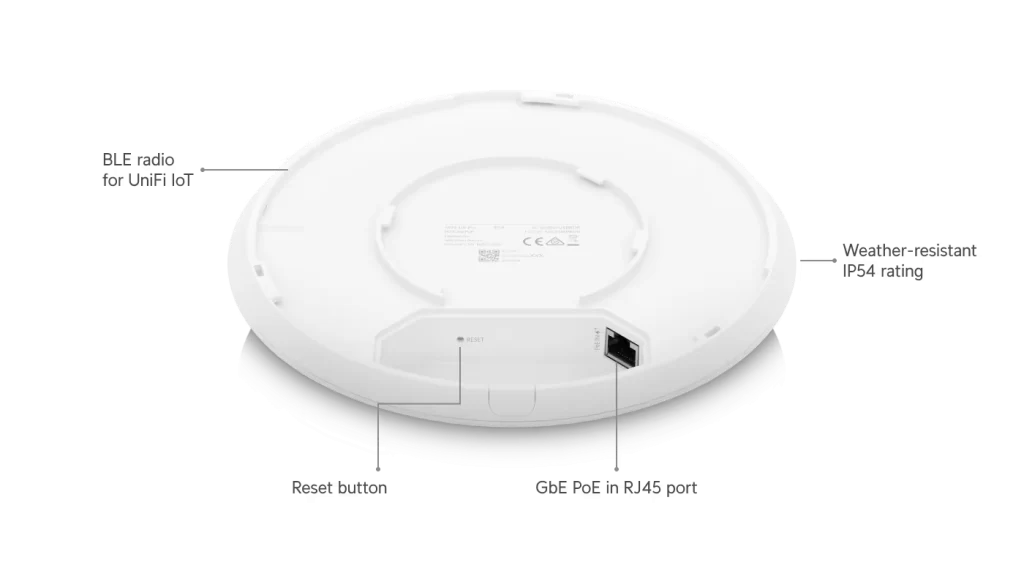

(1) GbE RJ45 port
Weight
Device: 580 g (1.3 lb)
With mount: 720 g (1.6 lb)
Management
Ethernet
Bluetooth
Enclosure Material
Polycarbonate
Mount Material
Stainless steel (SUS304)
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
Certifications
CE, FCC, IC
Operating Frequency
US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHzWorldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
