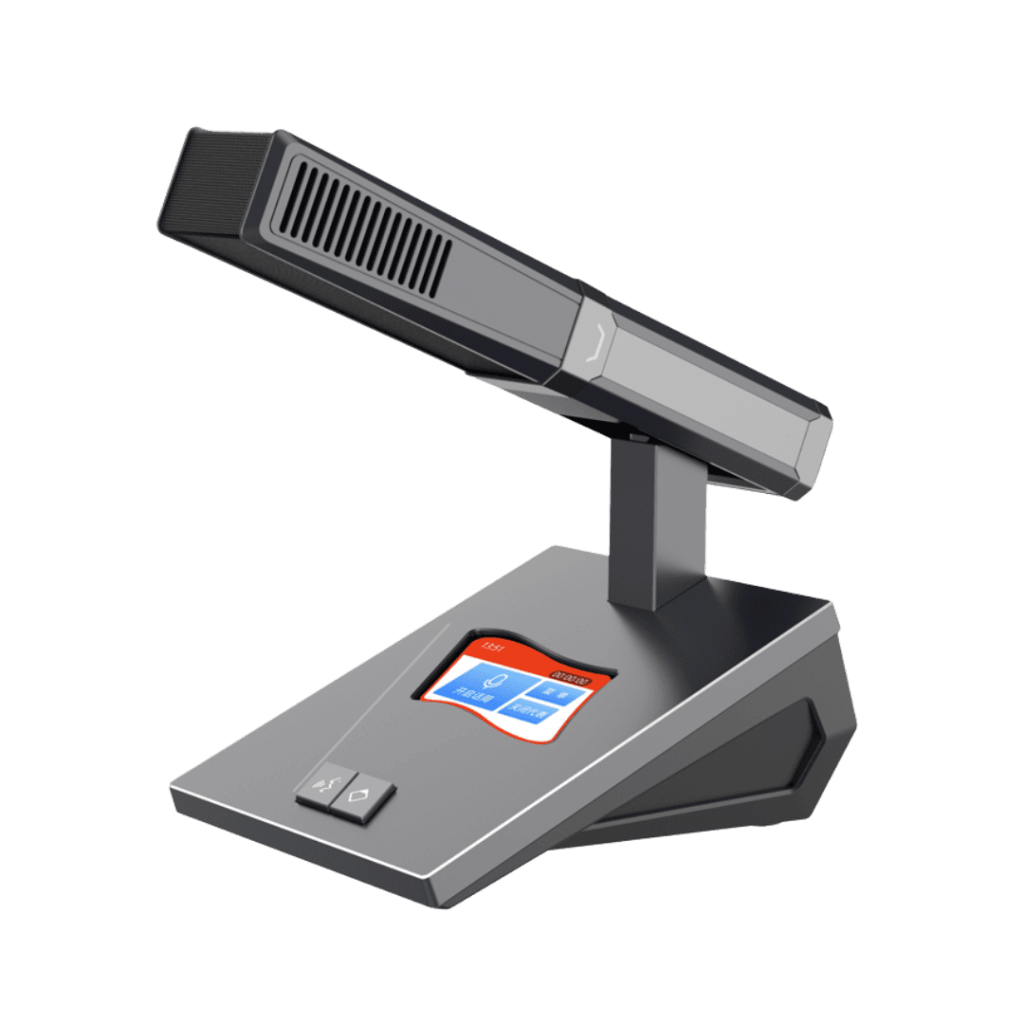

This intelligent conference microphone system delivers uncompressed 48kHz audio with a short microphone pole
for long-distance pickup and a flag-shaped 4.1-inch full-color touch screen for seamless operation. It supports
100M network transmission with a single-line ring network, 63+1 simultaneous interpretation channels, and PC or web-based control for microphone management, voting, and sign-in functions. With speech timekeeping,
feedback suppression, and adjustable voice control, it ensures a smooth and efficient conference experience.
* Short microphone pole design, long distance pickup.
* Adopt uncompressed audio transmission technology, 48K sampling rate, 80Hz-16KHz bandwidth perfect sound quality.
* Adopt 100M network transmission and single-line access to the ring network to improve the reliability of system operation.
* Adopt standard TCP/IP communication protocol, and support ping packet function.
* Designed with a 4.1-inch flag-shaped full-color touch screen.
* Support 63+1 simultaneous interpretation channels, all the speeches of the chairman and delegate units are listened to in channel 0, and channels 1 to 63 are the channels for listening to the interpreter machine.
* With 1 3.5mm headphones interfaces, support listening to the sound of the simultaneous interpretation channel or connecting an external microphone.
* Support PC software for microphone control, support voice control function.
* The chairman has the priority to turn off the speaking delegate unit.
* Built-in independent web server, support four language switching, adjustment of microphone ID and microphone sensitivity.
* Support the function of speech timekeeping and speech countdown, the delegate unit supports the function of requesting a speech.
* Support internal feedback suppression function, voice control function, and adjustable voice control sensitivity.
* Support sign-in function, support functions such as prohibiting unit sign-in and controlling unit sign-in through PC software.
* Support voting function, there are multiple optional voting modes, and the content of the options can be customized and sent to the unit for display.
* Support web page firmware upgrade function.
* Support IP address sniffing function, you can find unknown ID number, IP address, MAC address and other parameters through PC tools.
* Support modifying the device type (chairman/delegate) and setting the clock screen saver through the network.
| Feature | Value |
|---|---|
| Model | TS-0318C / TS-0318CA |
| Microphone type | Electret condenser microphone |
| Microphone directivity | Cardioid |
| Frequency response | 80Hz - 16kHz |
| Input impedance | 1KΩ |
| Sensitivity | -40±1dB (0dB=1V/Pa, at 1kHz) |
| Max SPL | 120dB (THD＜3%) |
| SNR | >80dB(A) |
| Crosstalk | >70dB |
| Dynamic range | >80dB |
| THD | <0.1% |
| Max power consumption | 4W |
| Power supply | Conference host power supply |
| Color | Fine sand graphite gray |
| Sign-in function | Key sign in |
| Installation method | Desktop |
| Microphone pole | 240mm integrated square short microphone rod (light black) |
| Dimension (L×W×H) | 100.9 × 130 × 54.3mm (base) |
| Weight | 1.2kg |
