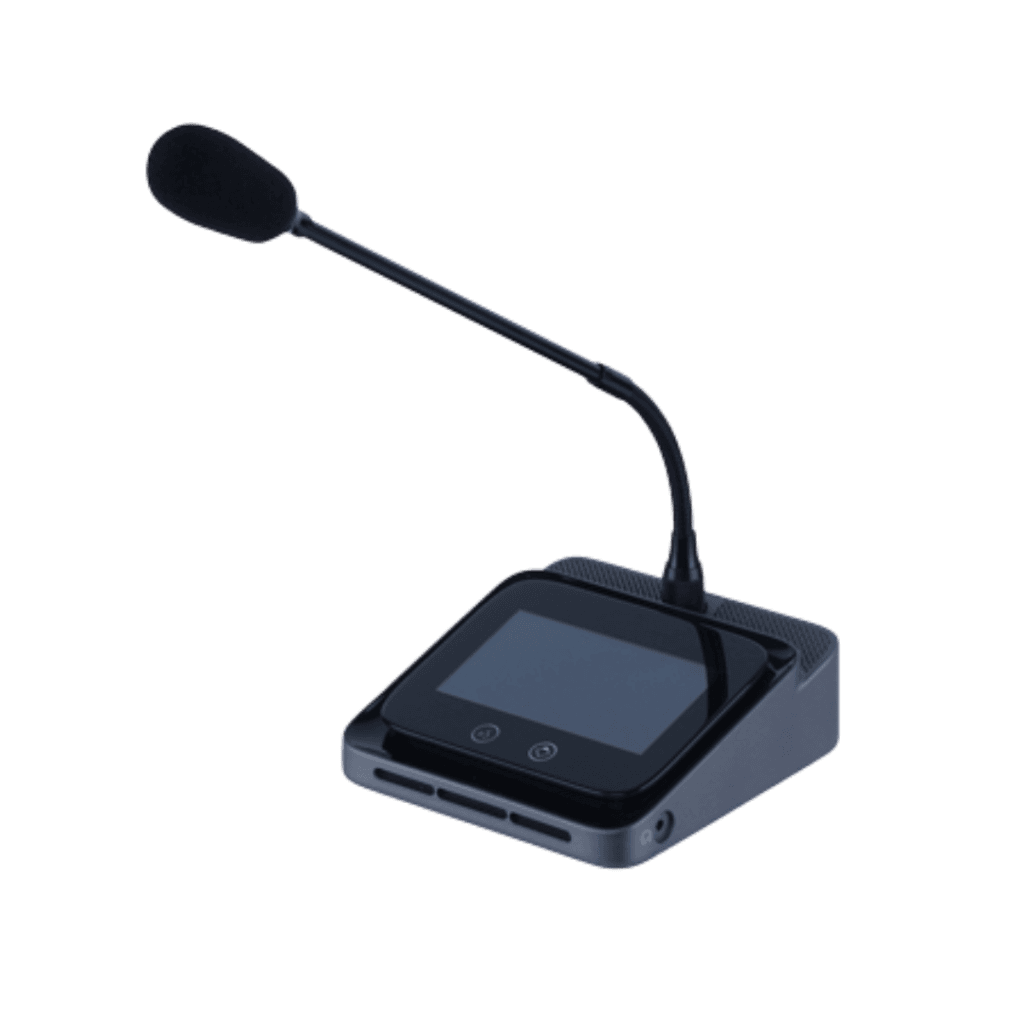

TS-0310/ TS-0310A

Conference Chairman/ Delegate Unit

This high-performance conference system delivers 48kHz uncompressed audio transmission with capacitive touch buttons for silent operation and crystal-clear sound. Featuring a 4.3-inch full-color touch screen, 63+1 simultaneous interpretation channels, and dual headphone jacks, it ensures seamless multilingual communication. With PC software control, voting functions, chairman priority, and web-based remote management, it offers a professional and efficient meeting experience.

  • Capacitive touch buttons eliminate noise for a quiet venue.
  • Uncompressed audio transmission with 48kHz sampling rate for excellent sound quality.
  • 100M network transmission with convenient hand-in-hand wiring.
  • Standard TCP/IP protocol, supports ping packets.
  • 4.3-inch full-color touch screen for easy operation.
  • Supports 63+1 simultaneous interpretation channels with dual-channel listening.
  • Two 3.5mm headphone jacks for simultaneous channel listening.
  • PC software control and adjustable voice control.
  • Chairman unit can mute speaking delegates.
  • Built-in web server for easy adjustment of settings and language switching.
  • Speech timing function for the chairman, with no restrictions on timing.
  • Feedback suppression and adjustable voice control sensitivity.
  • 5-band EQ for custom sound adjustments based on speaker characteristics.
  • Sign-in, voting, and customizable voting modes with display options.
  • Firmware upgrades via web page.
  • IP address sniffing to find unknown unit parameters.
FeatureValue
ModelTS-0310 / TS-0310A
Microphone typeCardioid Electret Condenser
Frequency response80Hz - 16kHz
Input impedance680Ω
Sensitivity-41±1.5dB (0dB=1V/Pa, at 1kHz)
Maximum SPL120dB
SNR>80dB(A)
Crosstalk>70dB
Dynamic range>80dB
THD<0.1%
Maximum power consumption3W
Power supplyConference server power supply
ColorFine sand graphite gray
Sign-in methodKey
Microphone rod409mm black
Installation methodDesktop
Dimension (L×W×H)250 × 55 × 85mm
Desktop opening size206 × 48mm
Weight0.55kg
