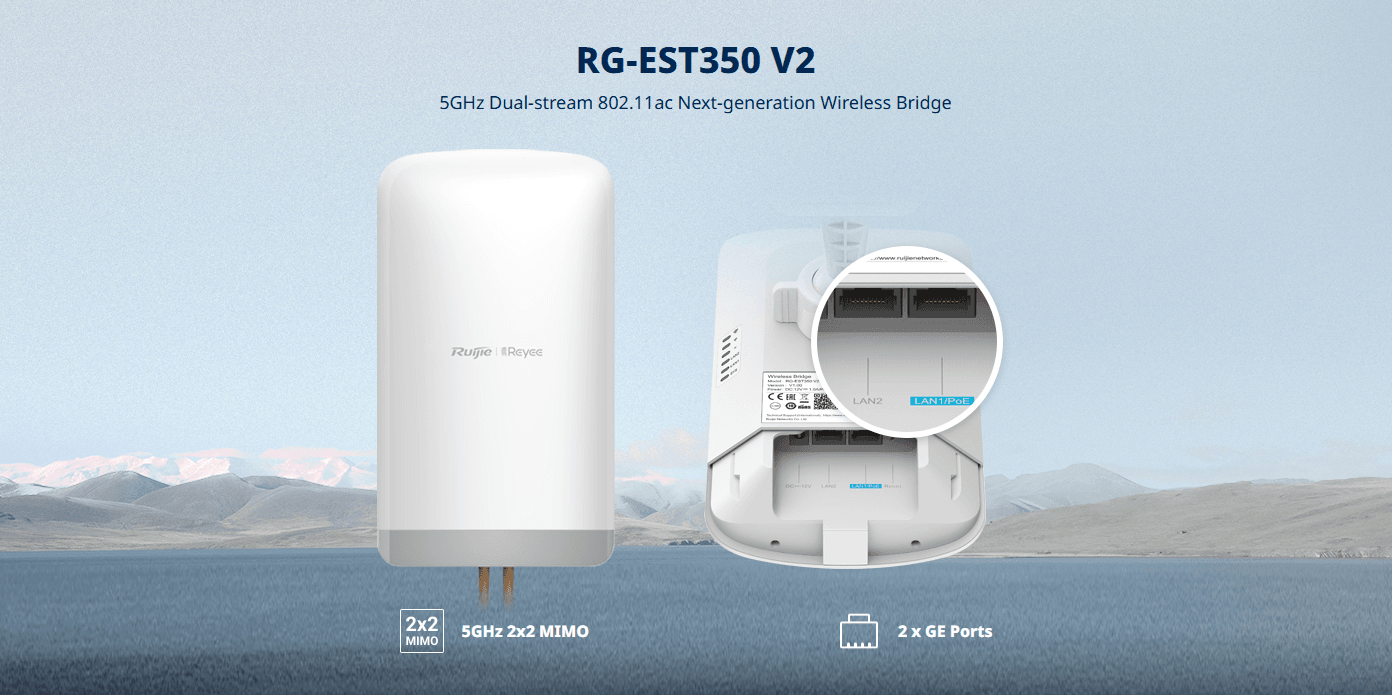

RG-EST350 V2

5GHz Dual-stream 802.11ac 5KM Wireless Bridge

Factory, Surveillance, Transportation, etc

RG-EST350 V2 can easily transmit data from 5KM away in real time
Factory-paired bridges for long-distance installation, without complex alignment

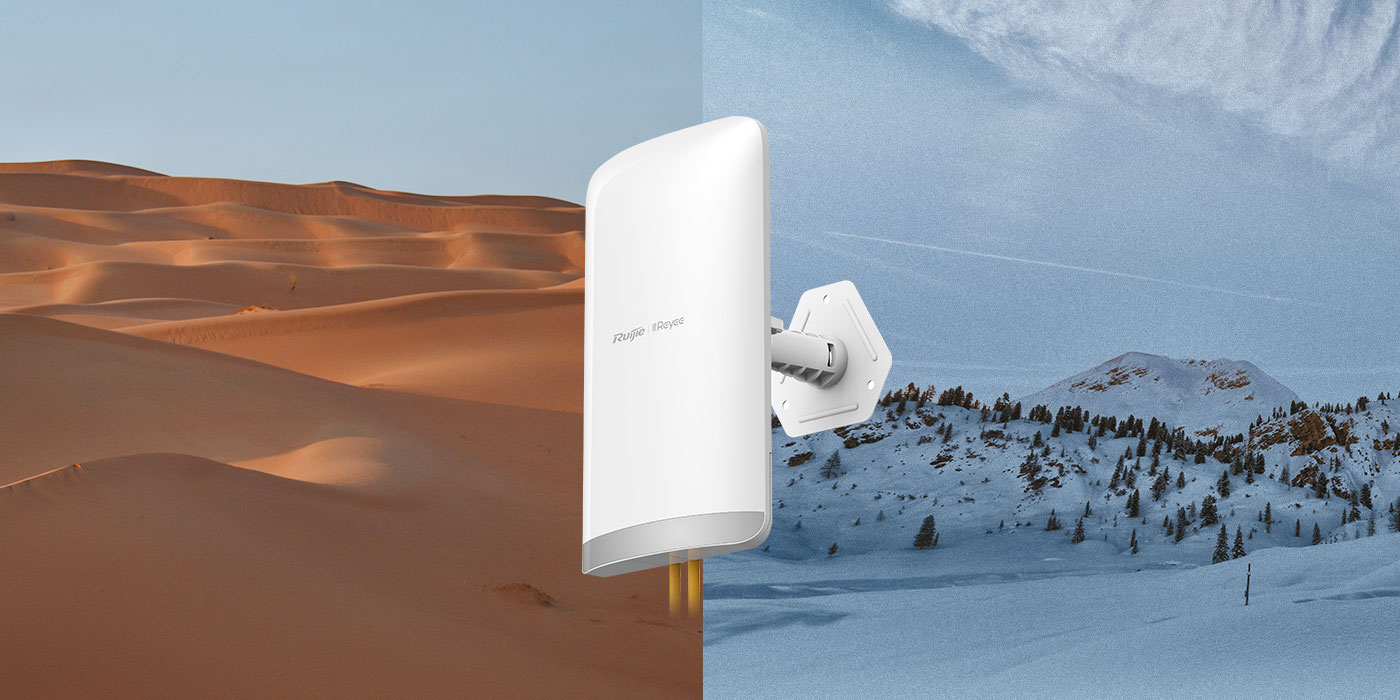

IP54 Weatherproof, -30℃~65℃ guarantee stable operating
Support maximum 45 * 2MP cameras loading at 3KM, 20 * 2MP cameras loading at 5KM

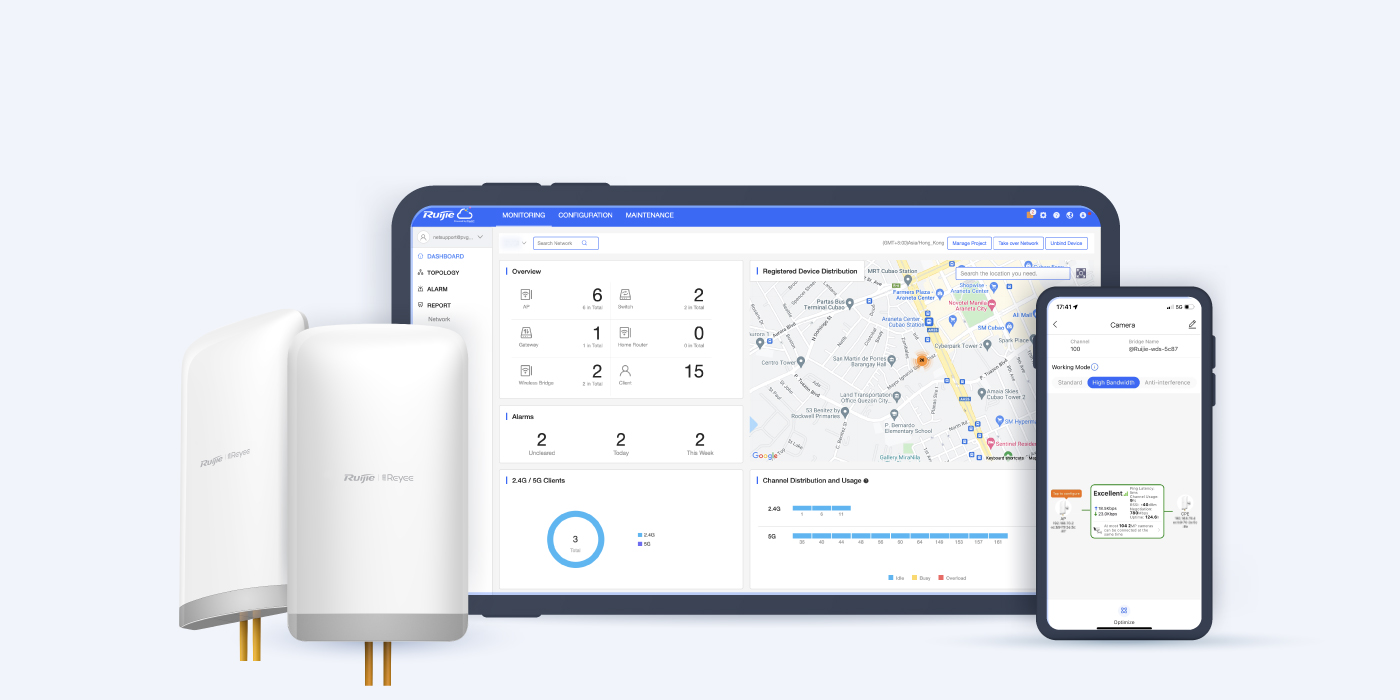

Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely

Wi-Fi Standards

Wi-Fi 5 (IEEE 802.11ac, Wave2)

MIMO

2X2, MU-MIMO

Max. Wireless Speed

5 GHz: 867Mbps

Antenna Gain

Directional, 15 dBi

Weatherproof

IP54

Polarization

Horizontal: 31°, Vertical: 14°

Operating Temperature

-30°C to 65°C (-22°F ~ 149°F)

Recommended Distance

5 KM

Fixed Ports

2 x 10/100/1000Base-T

Transmit Power

≤400 mW(26 dBm) (adjustable)

Demensions

230 mm × 132 mm × 48 mm

Weight

0.5 kg

Certification

CE, RoHS

Warranty

3 Years

Long Range

High-speed wireless data transmission at 5KM range

867 Mbps

PTP/PTMP

5KM Operating distance

High Capacity

45 cameras maximum at 3KM, 20 cameras maximum at 5KM*

*H.265, 2MP Cameras, 3Mbps. To guarantee the transmission quality, the environment should be kept as open as possible to reduce the interference.
At the same time, it is recommended to adjust it to the best alignment angle with the signal strength indicator or Ruijie Cloud APP.

Reliable
