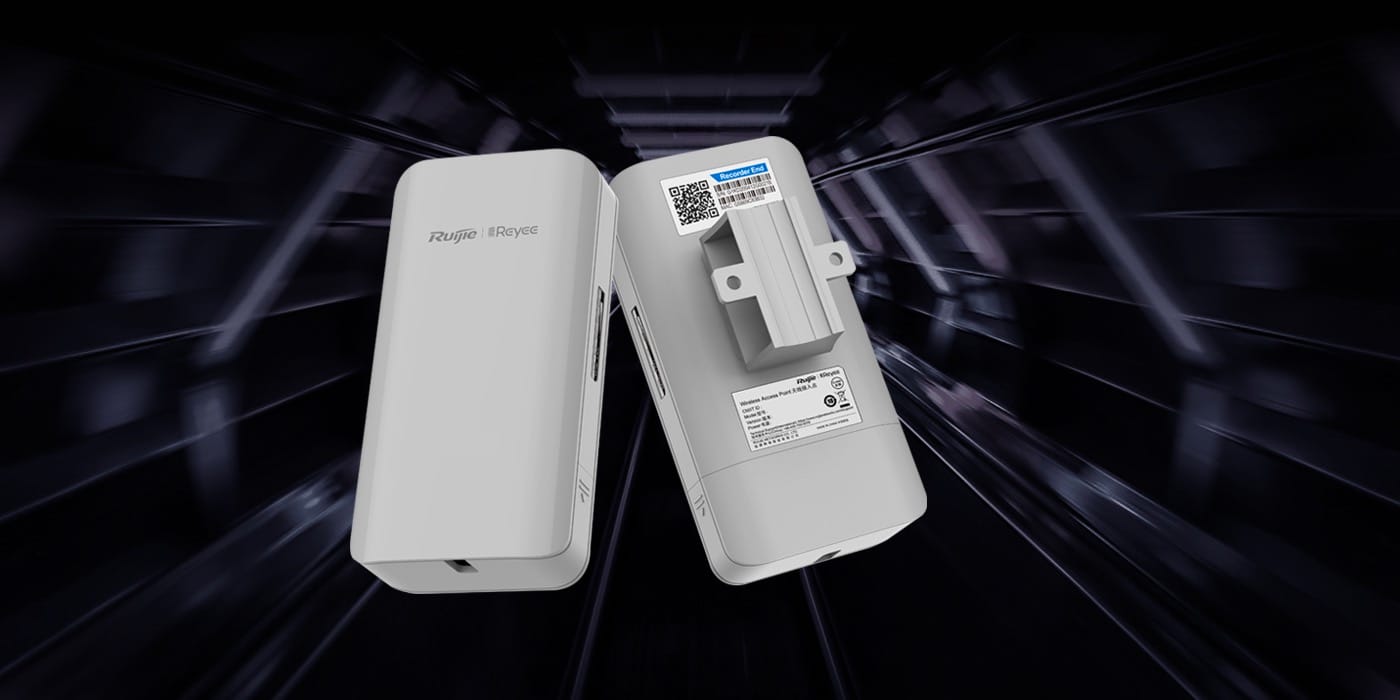

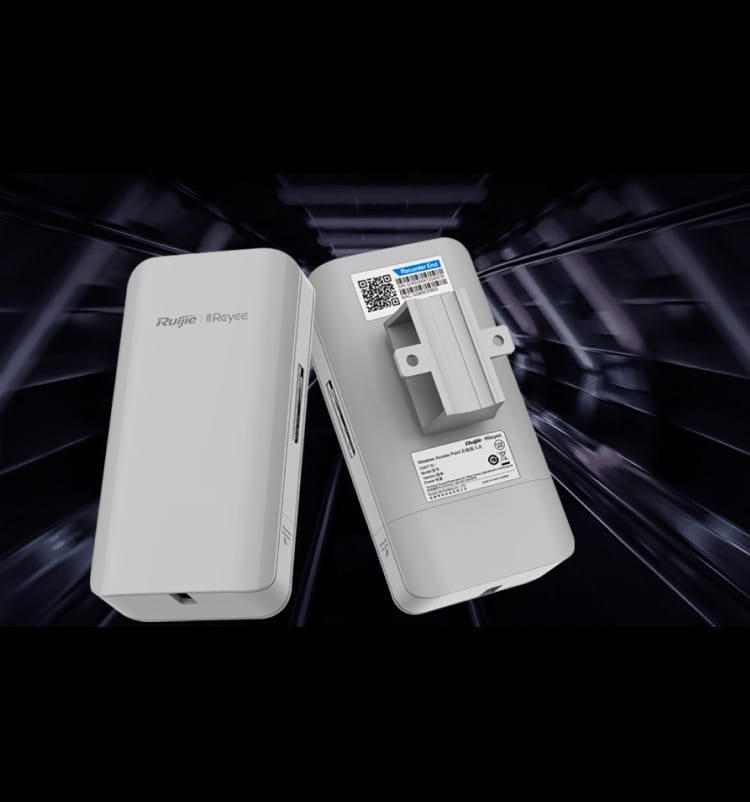

RG-EST310 V2

5GHz Dual-stream 802.11ac 1KM Wireless Bridge

Elevator, Campus, Building, etc.

RG-EST310 V2 provide stable traffic transmission from 1KM away.
Factory-paired, auto-rebridge upon power restoration
IP54 Weatherproof, -30℃~55℃ ensures stable operating
Cost-effective wireless solution for elevator CCTV to avoid cable loss

Wi-Fi Standards

Wi-Fi 5 (IEEE 802.11ac, Wave2)

MIMO

2X2, MU-MIMO

Max. Wireless Speed

5 GHz: 867Mbps

Antenna Gain

Directional, 10 dBi

Weatherproof

IP54

Polarization

Horizontal: 60°, Vertical: 30°

Operating Temperature

-30°C to 55°C (-22°F ~ 131°F)

Recommended Distance

1 KM

Fixed Ports

1 x 10/100Base-T

Transmit Power

≤400 mW(26 dBm) (adjustable)

Demensions

147 mm x 76 mm x 37 mm

Weight

0.35 kg

Certification

CE, RoHS

Warranty

3 Years

RG-EST310 V2

5GHz Single-band Dual-stream 802.11ac Wireless Bridge

5GHz 2x2 MIMO

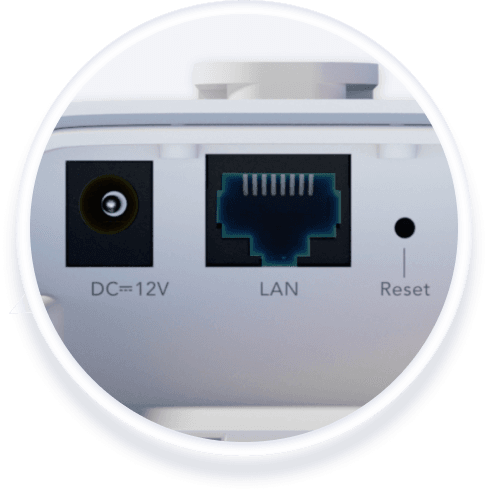

1 x FE Port

Not Limited to 1KM

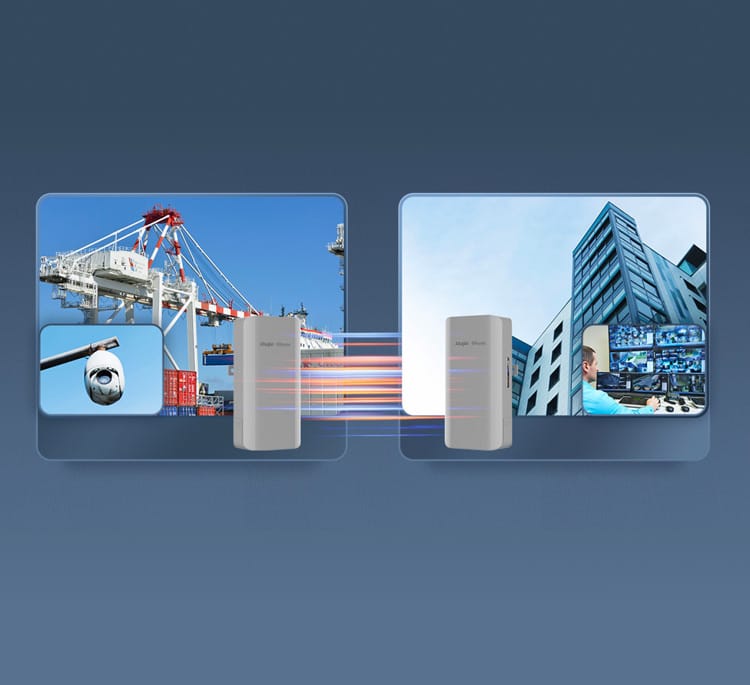

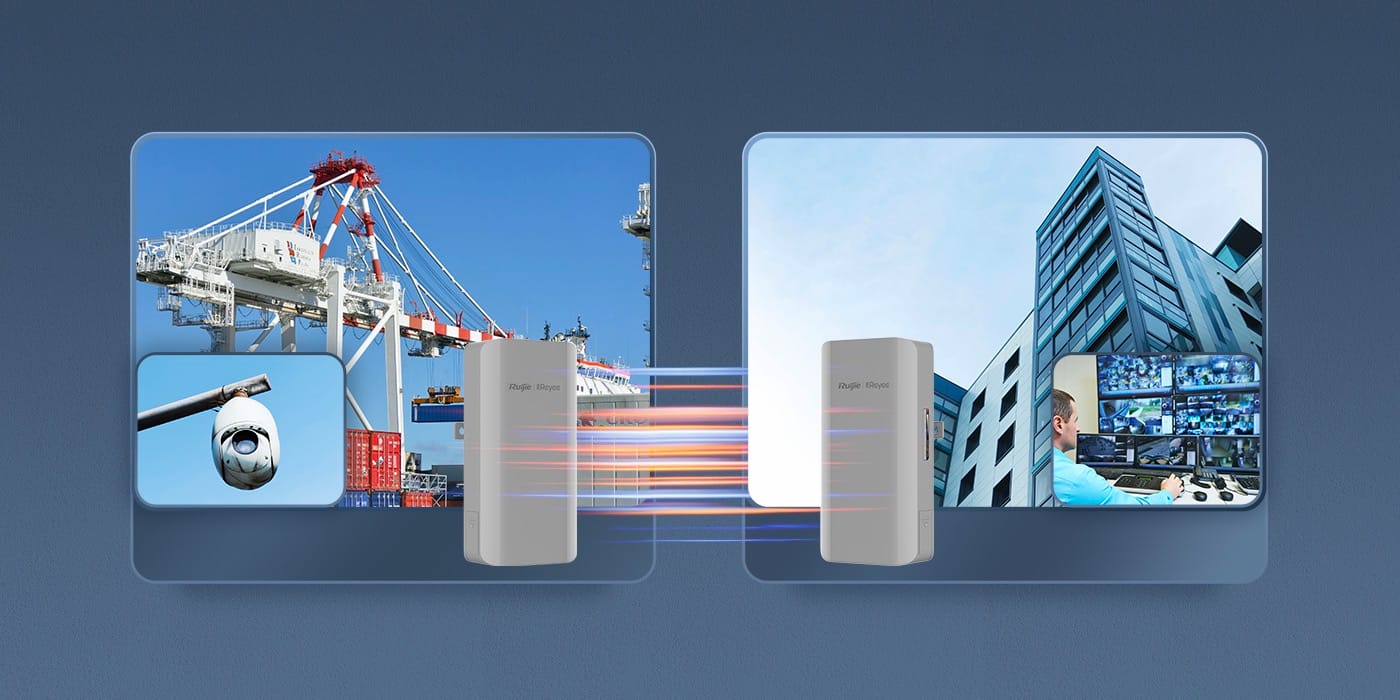

Wireless bridge expert for CCTV scenario

867 Mbps

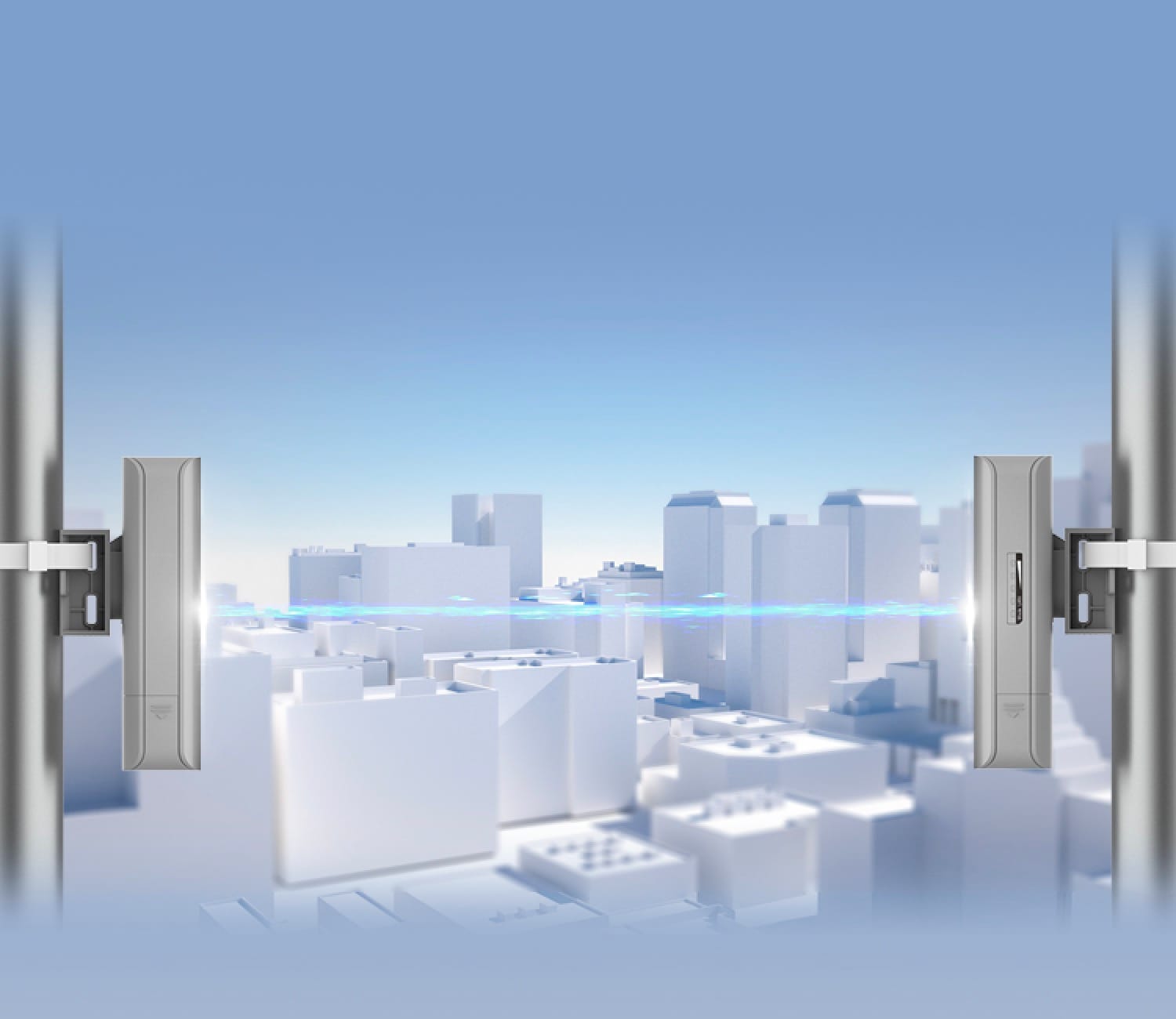

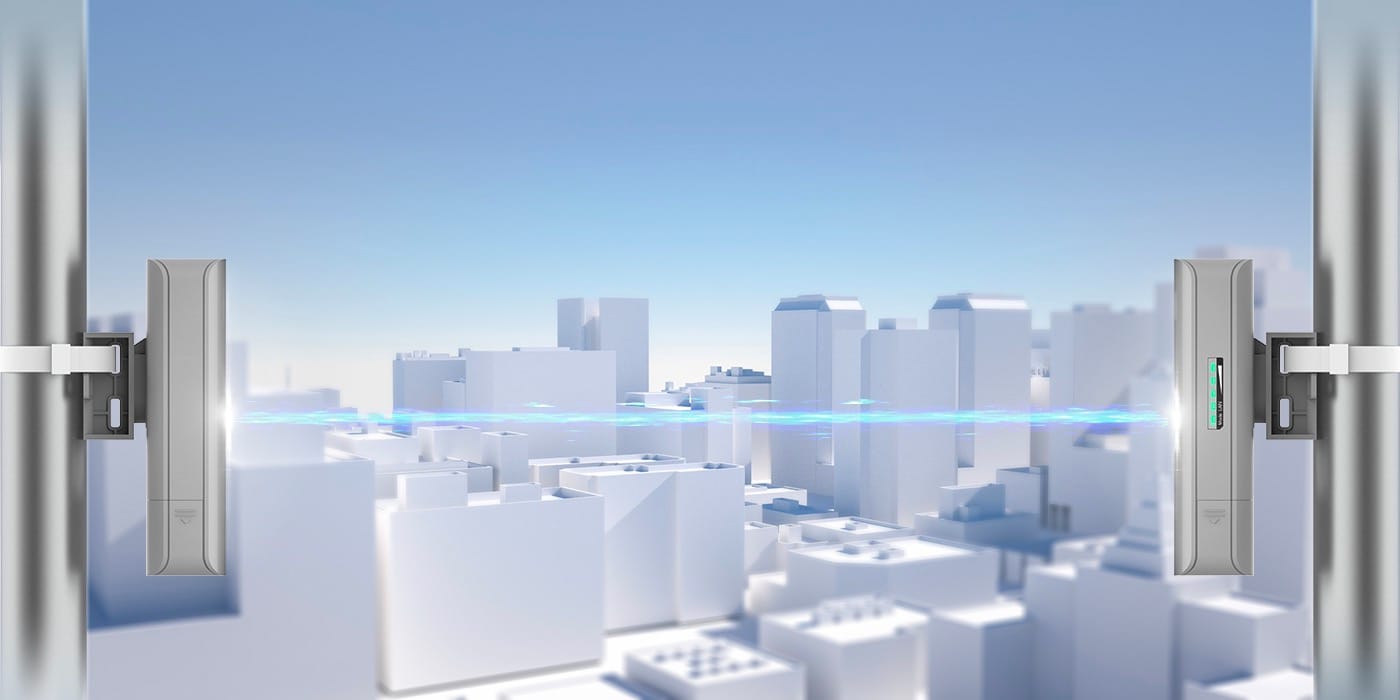

PTP/PTMP

Strong Adaptability and High Scalability

V0 Level
Flame Retardant
IP54
Weatherproof
-30 to 55℃ Operating
Temperature

High Quality
High Performance

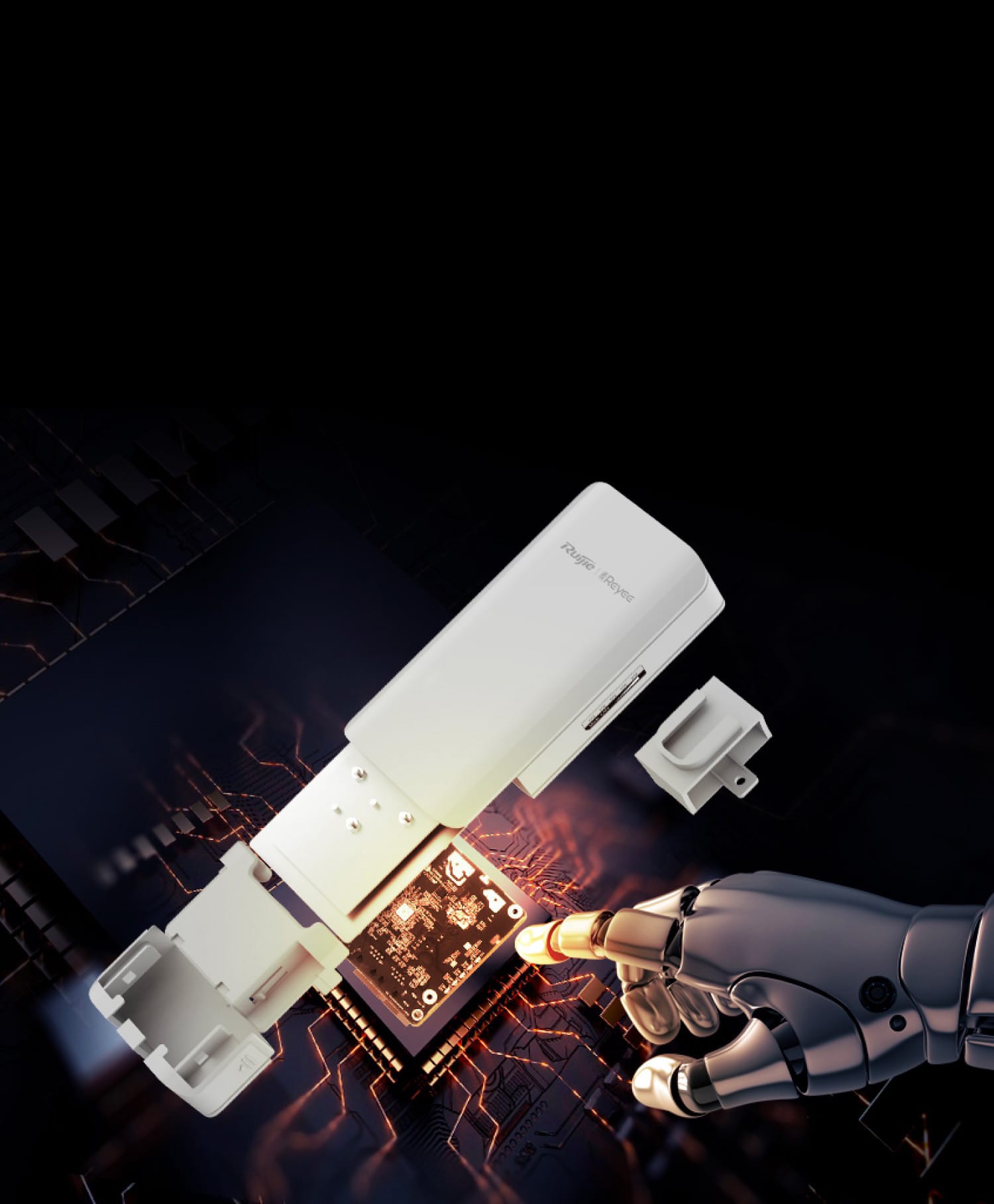

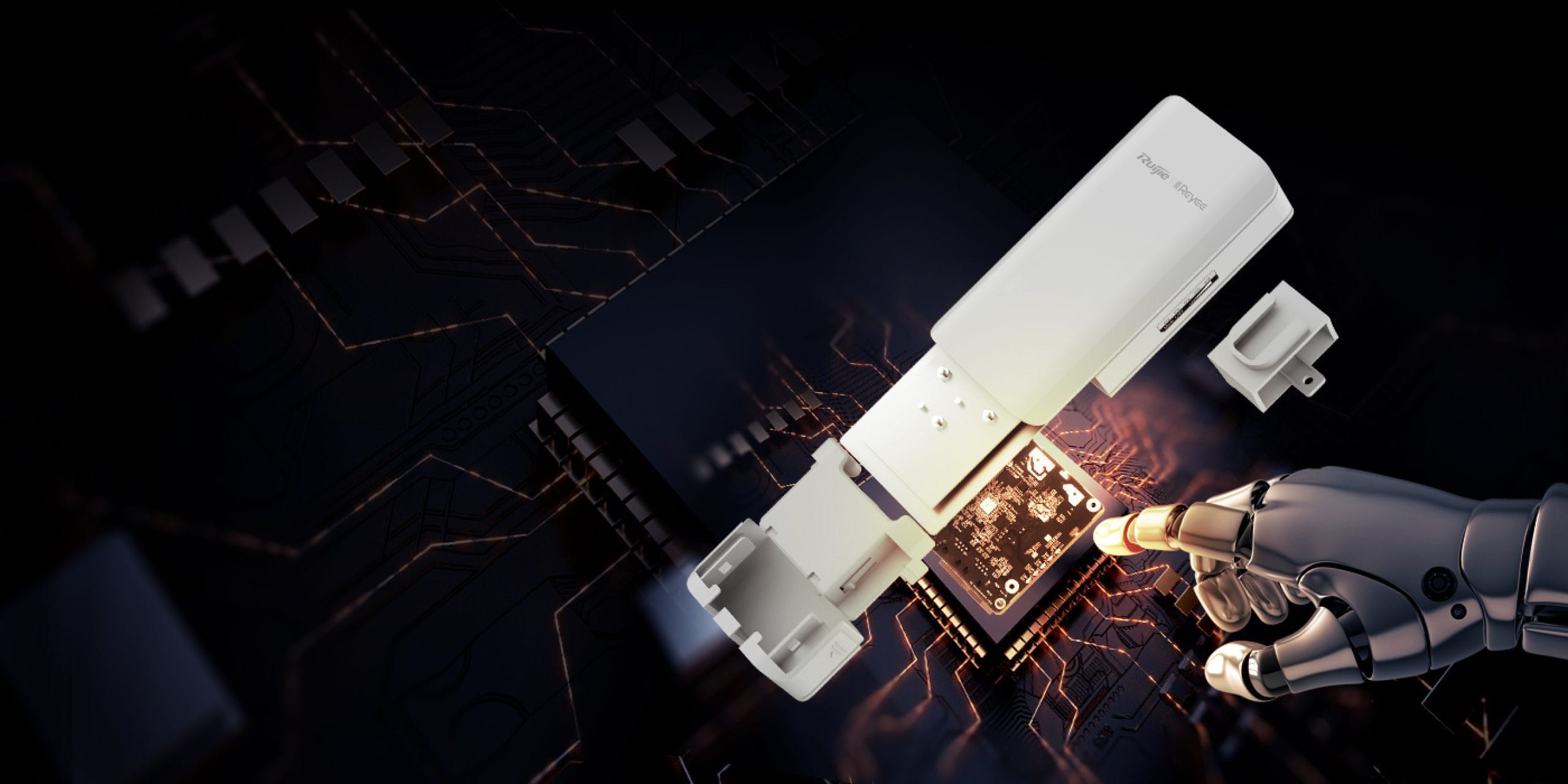

RG-EST310 V2 has adopted the new high-performance 5GHz single-band dual-stream chip solution, which offers up to 867Mbps wireless transmit rate and significantly enhances the efficiency and stability of network bridge data transmission.

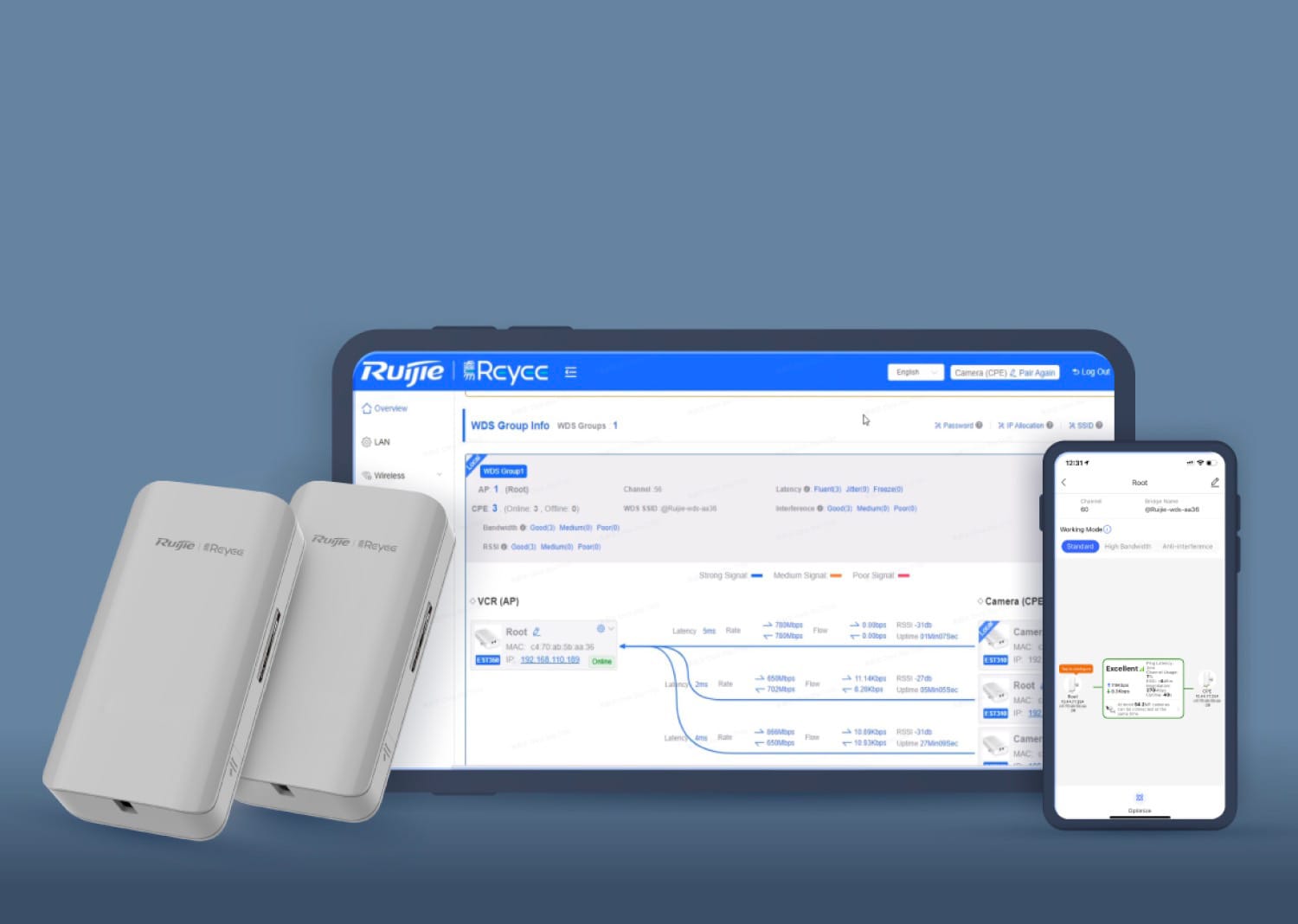

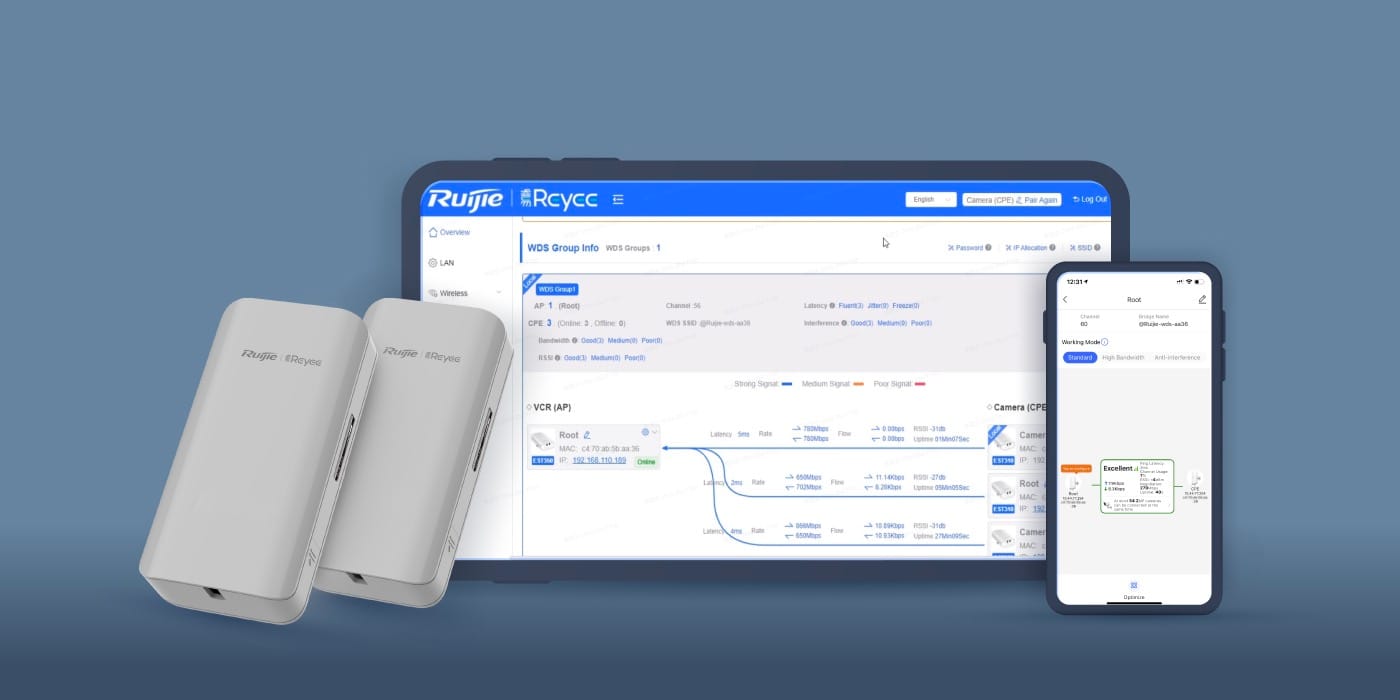

Cloud, Make Your Business Easy
