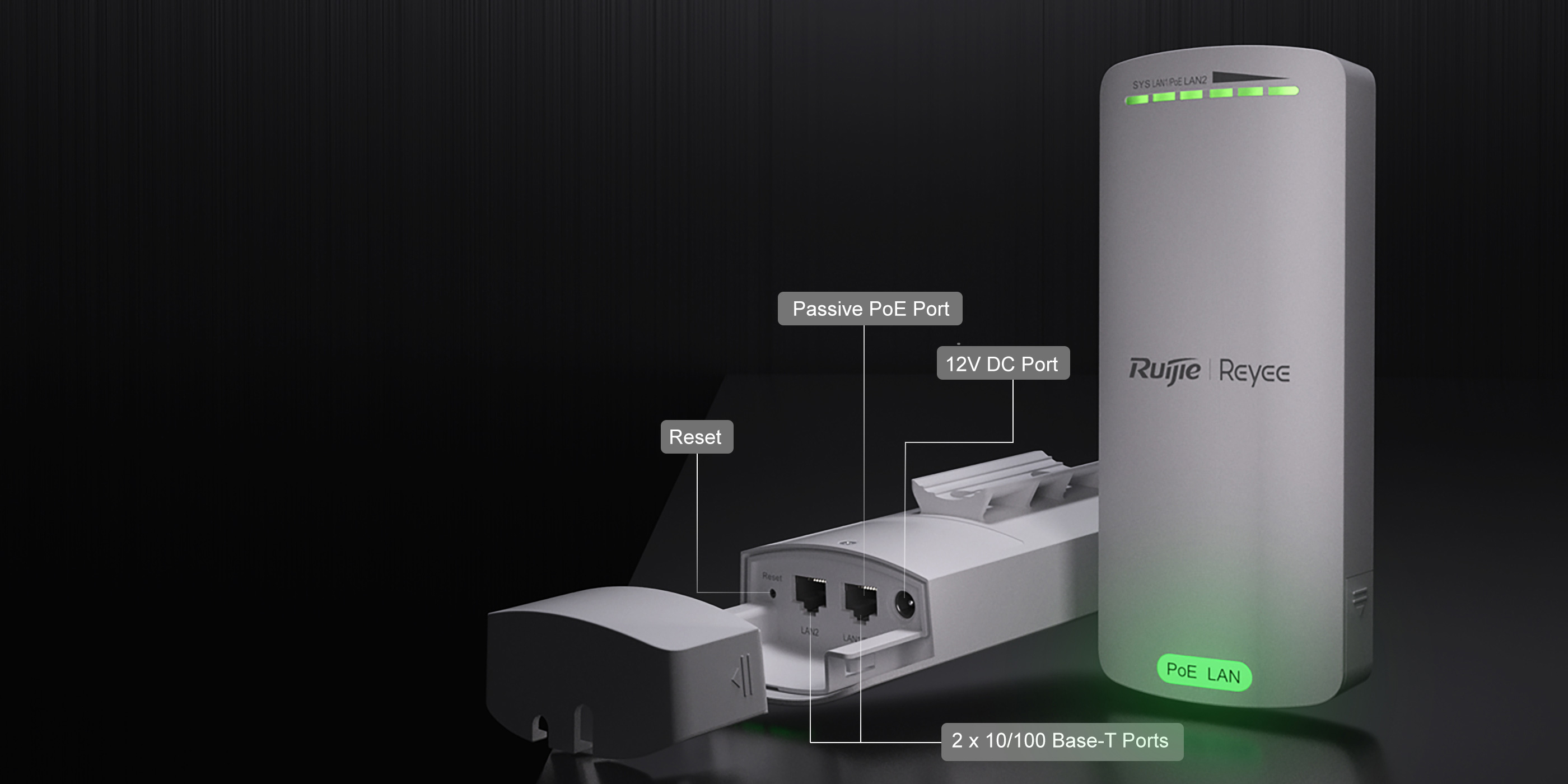

RG-EST100-E

2.4GHz Dual-stream 500m Wireless Bridge

Factory, Surveillance, Transportation, etc

RG-EST100-E can easily transmit data from 500m away in real time
Factory-free configuration, without complex alignment
IP55 Weatherproof, -30℃~60℃ guarantee stable operating at outdoor or elevator environment
Support maximum 10 * 3MP cameras loading at 100m, 5 * 3MP cameras loading at 500m
Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely

Radio Design

2.4 GHz Single-Band Dual-Stream

Transmission Protocol

IEEE 802.11b/g/n

Operating Band

802.11b/g/n: 2.400～2.483GHz

Antenna

Directional antennas, 8 dBi

Polarization

Horizontal: 70°, Vertical: 70°

Bridging Distance

500m (recommended)

Spatial Streams

2x2, MU-MIMO

Memory/Flash

64 MB/8 MB

Maximum Throughput

Up to 300 Mbps at 2.4 GHz

Max. Transmit Power

≤100 mW(20 dBm) (adjustable)

IP Rating

IP55

Lightning Protection

±6 KV(Common Mode)

Installation

Wall-mounted/ Pole-mounted

Dimensions （D x W x H）

165.5mm×68.7mm×42mm

Weight

0.3 kg

Certification

CE

Designed for Short
Distances PTP

Unique Value for CCTV Scenario

RG-EST100-E

Performance
Scenarios

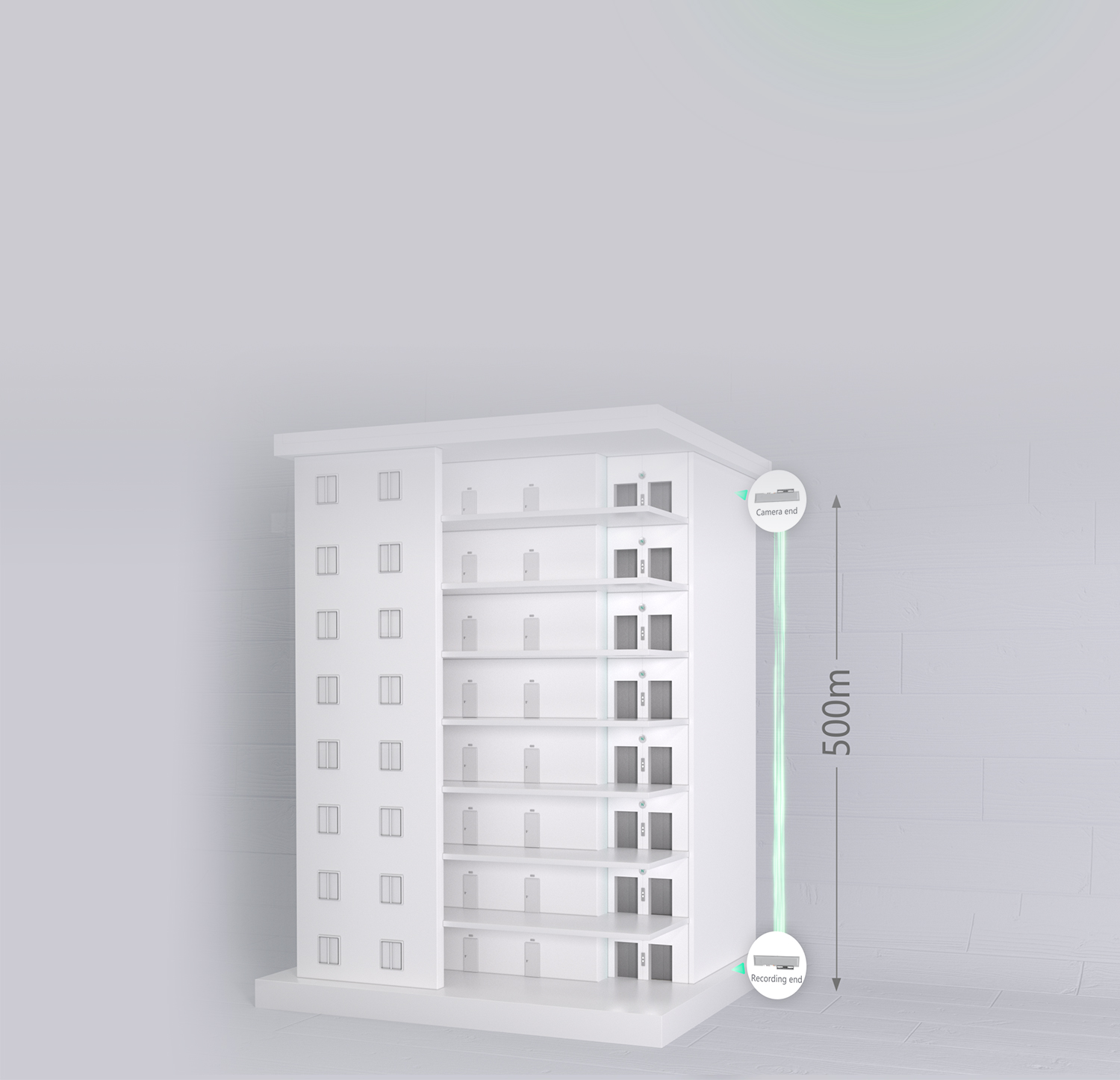

500 Meters Data
Transmission

Stable Signal for Wireless
Connection

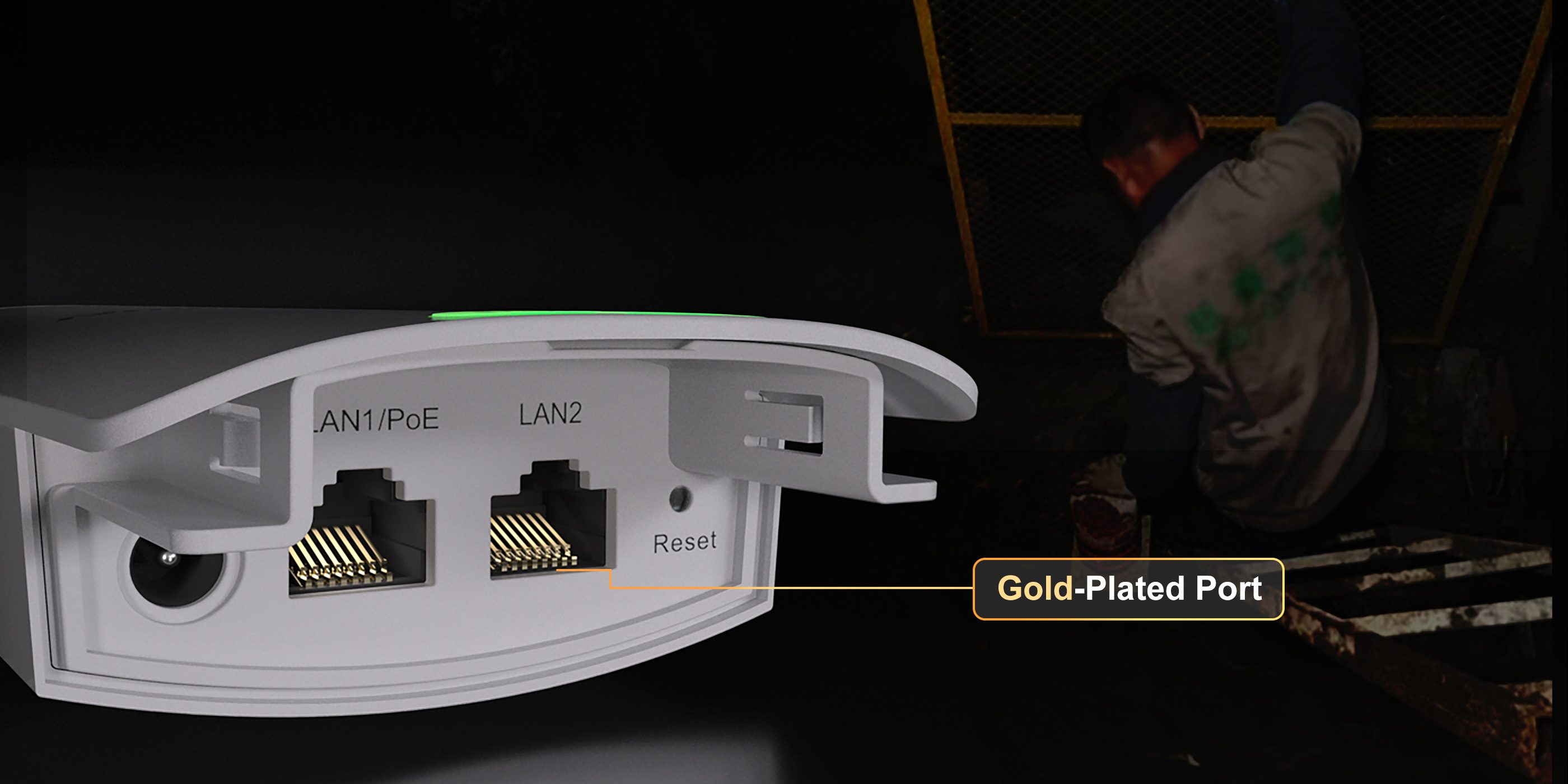

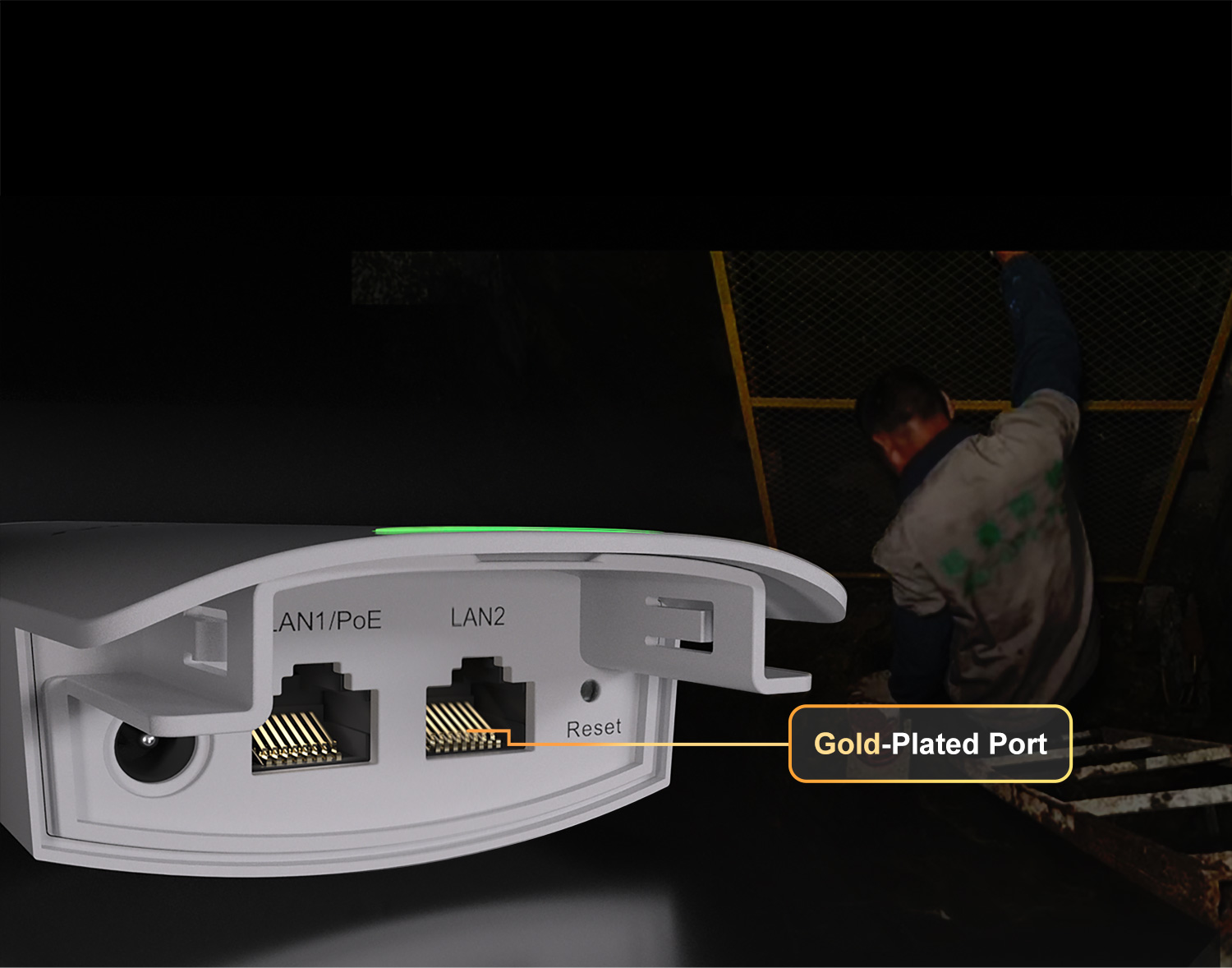

Rust-Proof Design

Higher Reliability, Lower Failure Rate

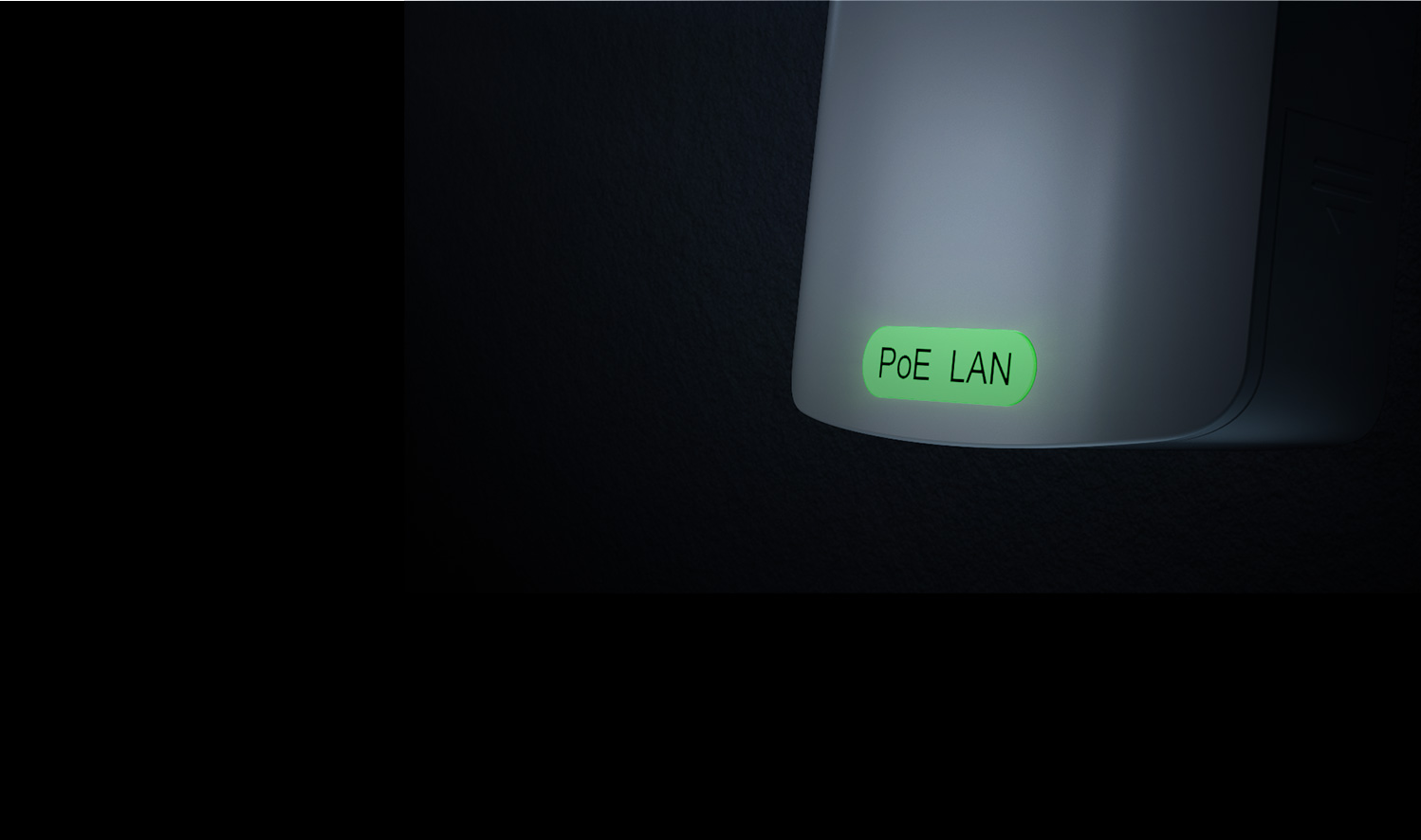

Fluorescent Stickers

Easy Recognition in the Dark

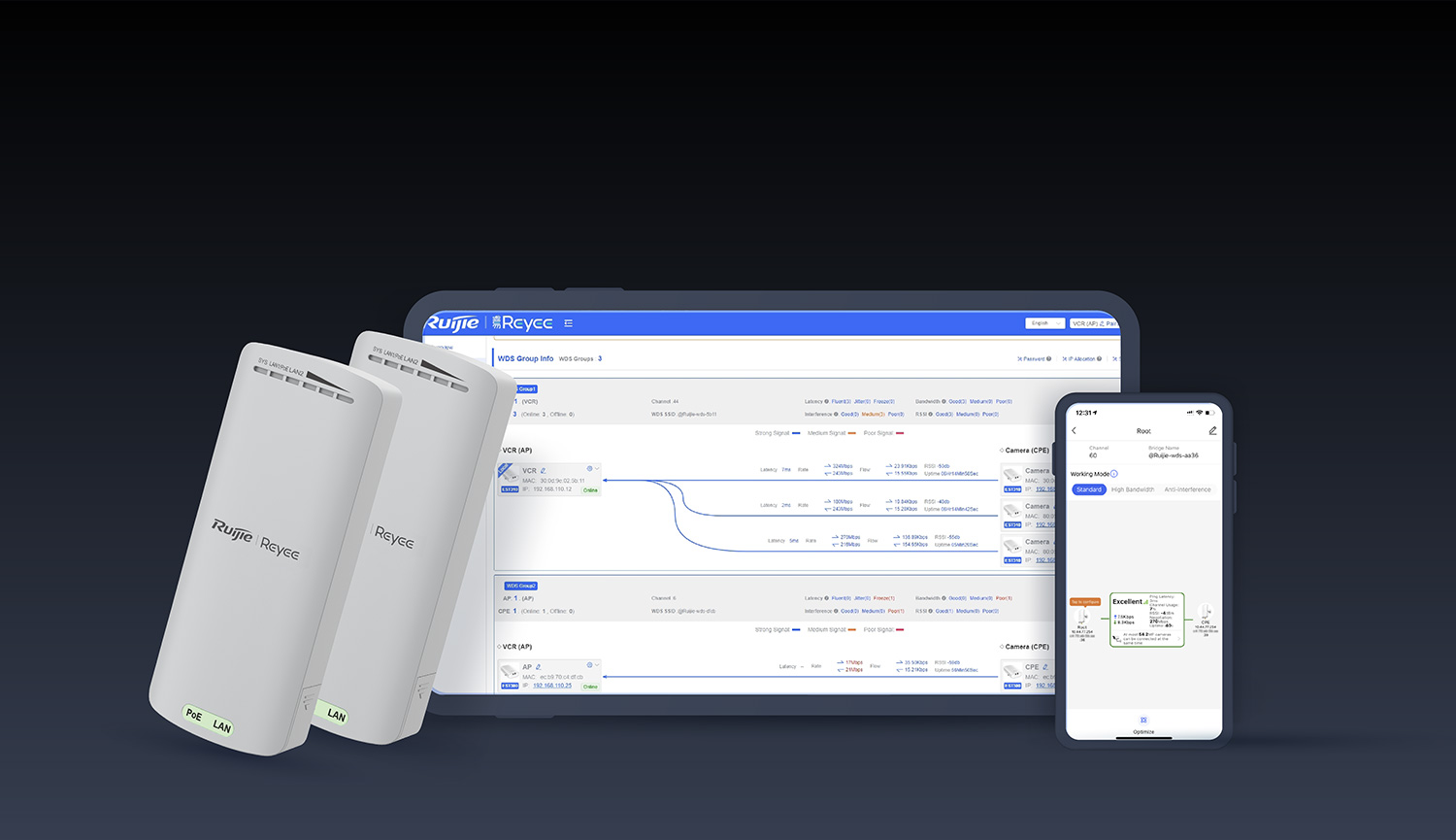

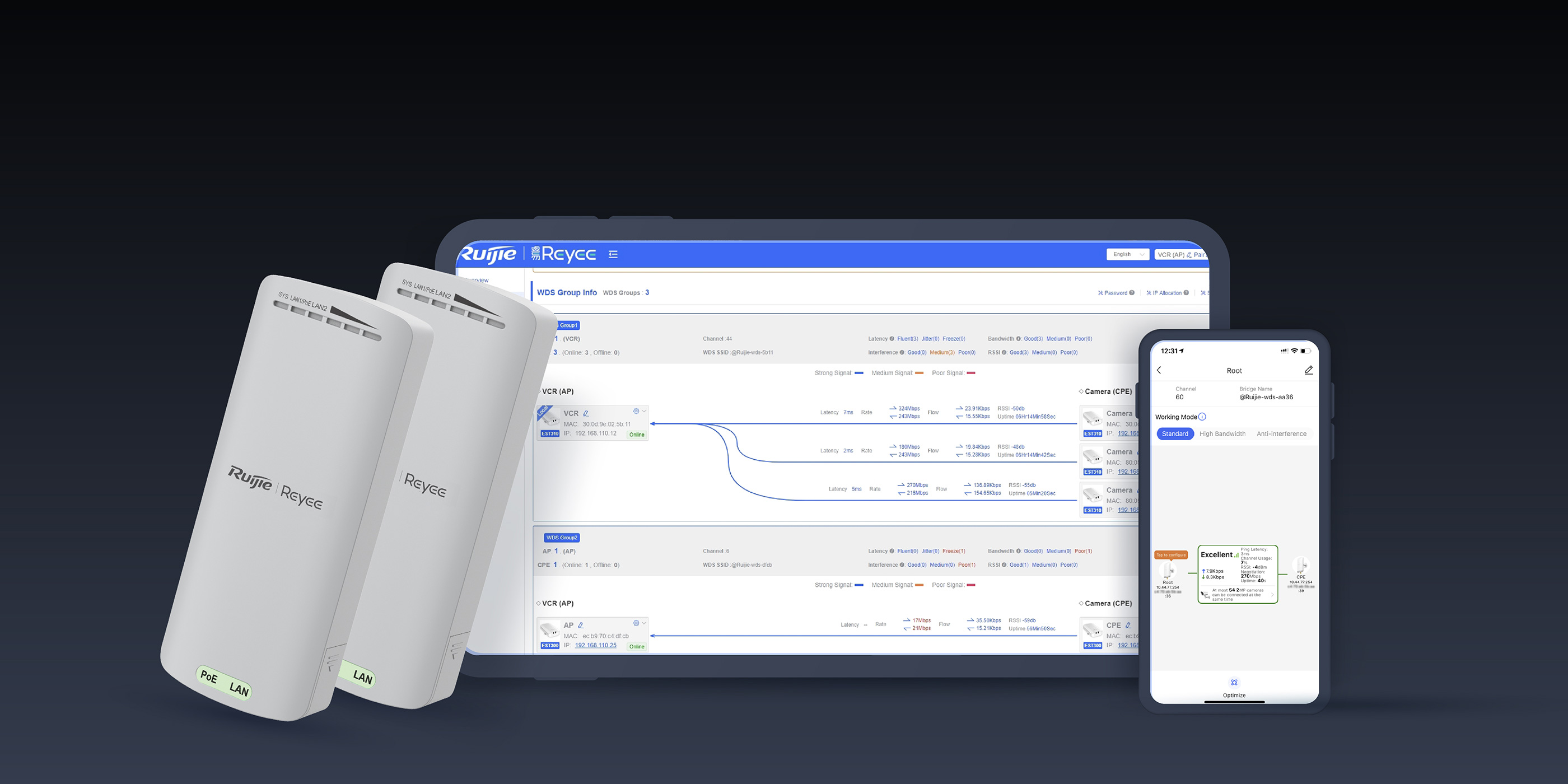

Cloud, Make Your Business Easy

Visually Statistics Monitoring on Ruijie Cloud
