RG-AP680
Ruijie RG-AP680(CD) is a high-performance Wi-Fi 6 (802.11ax) enterprise outdoor AP with IP68 rating designed for extreme outdoor conditions.
The RG-AP680(CD) provide concurrent dual-band with up to 2.4Gbps access rate, offers 4 spatial streams and built-in directional antenna. RG-AP680(CD) supports switching between FAT/FIT mode, offers 1 SFP port and 1 10/100/1000M port with PoE/ local power supply. Taking the wireless network security, RF control, mobile access, QoS, seamless roaming and other important factors into account. Teaming up with Ruijie RG-WS Wireless Controller Series/Cloud AC, the APs offer Wi-Fi user data forwarding, advanced security and access control with ease.
Product Description
| Hardware Specifications | ||
| Model | RG-AP680(CD) | |
| Radio | Dual-radio dual-band： Radio 1: 2.4G 11ax/5G 11ax: 2×2 MIMO Radio 2: 5G 11ax: 2×2 MIMO |
|
| Protocol | Concurrent 802.11ax and 802.11a/b/g/n/ac BLE 5.0 |
|
| Operating Bands | 802.11b/g/n/ac/ax ：2.4G ~ 2.4835GHz 802.11a/n/ac/ax ： 5G：5.150～5.350GHz， 5.725～5.850GHz (Note: the operating bands varies according to different countries) |
|
| Antenna | Built-in directional antenna | |
| Antenna Loba Orientation | Internal Directional: 60 degrees total |
|
| Antenna Gain | 9dBi | |
| Spatial Streams | 4 spatial streams, MU-MIMO | |
| Max Throughput |
Up to 0.575Gbps@2.4G Up to 1.2Gbps@5G 2.4G+5G is recommended with 1.775Gbps access rate |
|
| Modulation | OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps MIMO-OFDM：BPSK，QPSK，16QAM，64QAM and 256QAM OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps MIMO-OFDM：BPSK，QPSK，16QAM，64QAM，256QAM and 1024QAM |
|
| Receiver Sensitivity | 11b：-91dBm(1Mbps)，-88dBm(5Mbps)，-85dBm(11Mbps) 11a/g：-89dBm（6Mbps），-80dBm（24Mbps），-76dBm（36Mbps），-71dBm（54Mbps） 11n：-83dBm@MCS0，-65dBm@MCS7，-83dBm@MCS8，-65dBm@MCS15 11ac HT20：-83dBm（MCS0）, -57dBm（MCS9） 11ac HT40：-79dBm（MCS0）, -57dBm（MCS9） 11ac HT80：-76dBm（MCS0）, -51dBm（MCS9） 11ax HT80：-76dBm（MCS0）, -49dBm（MCS11） |
|
| Maximum Transmit Power | 28dBm (Note: The actual transmit power varies according to different countries and regions) |
|
| Adjustable Power | 1dBm | |

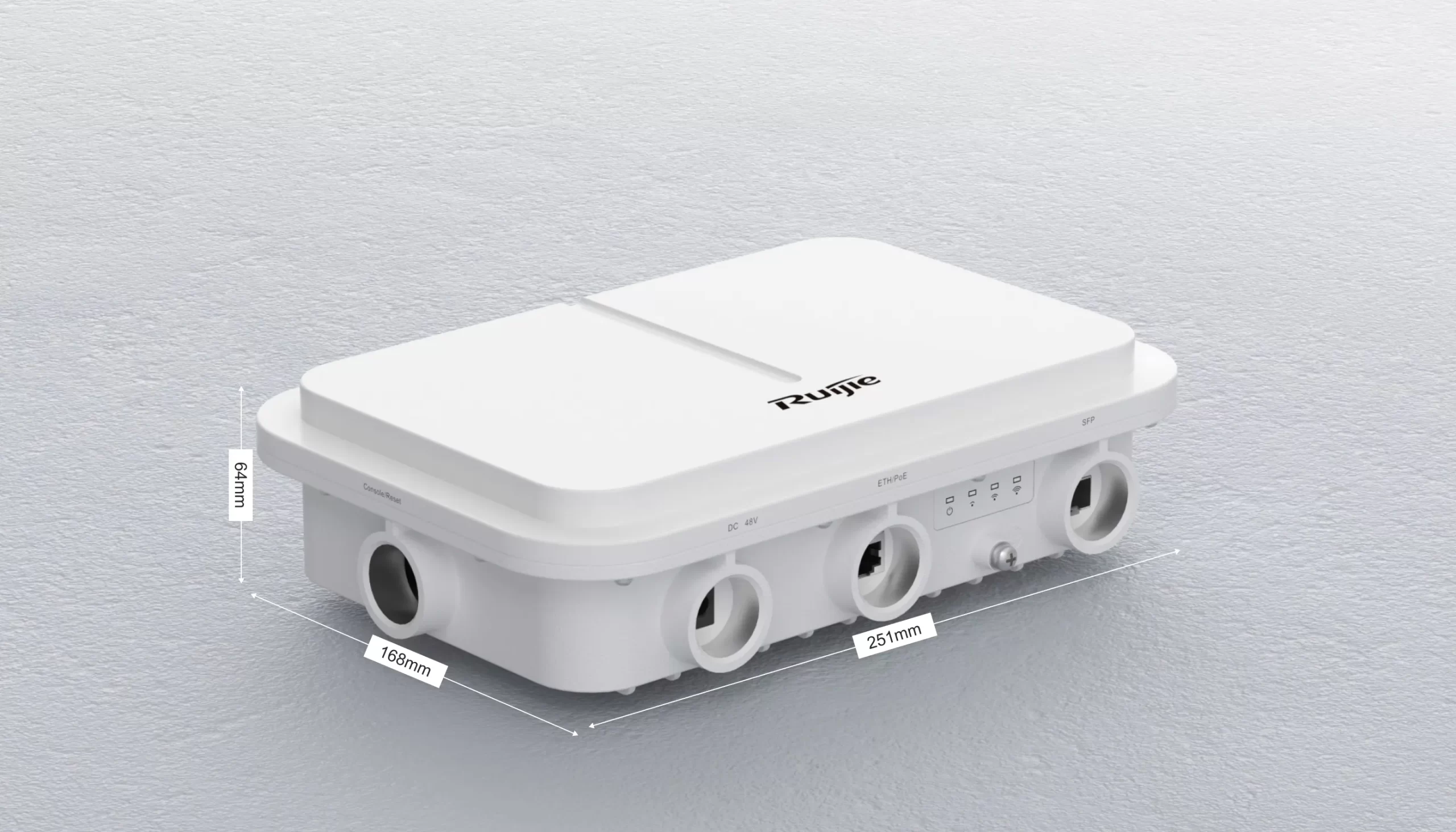

| Dimensions | 251mm × 168mm × 64mm (without mounting bracket) | |
| Weight | <1.5kg | |
| Service Ports | 1 10/100/1000Base-T Ethernet uplink port（PoE） 1 SFP port |
|
| Management Port | 1 console port | |
| Bluetooth | Support switching between Bluetooth serial port and iBeacon | |
| Power Supply | Support PoE (802.3af / 802.3at) Support 44 ~ 57V DC power supply |
|
| Power Consumption | <12.95W | |
|
Operating Environment |
Operating Temperature: -40~65℃ |
|
|
Storage Temperature: -40~85℃ |
||
|
Operating Humidity: 0% to 100% (non-condensing) |
||
|
Storage Humidity: 0% to 100% (non-condensing) |
||

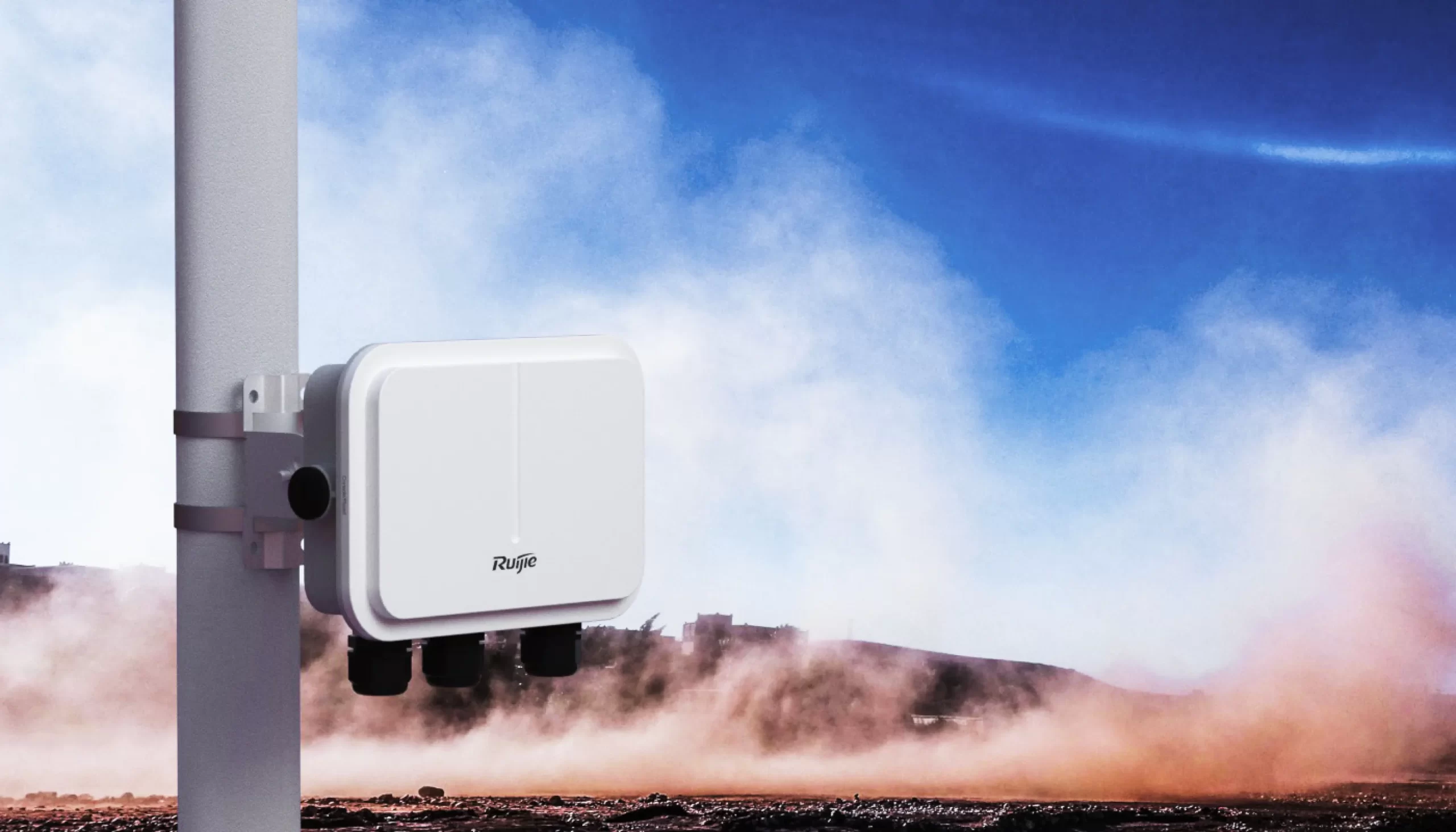

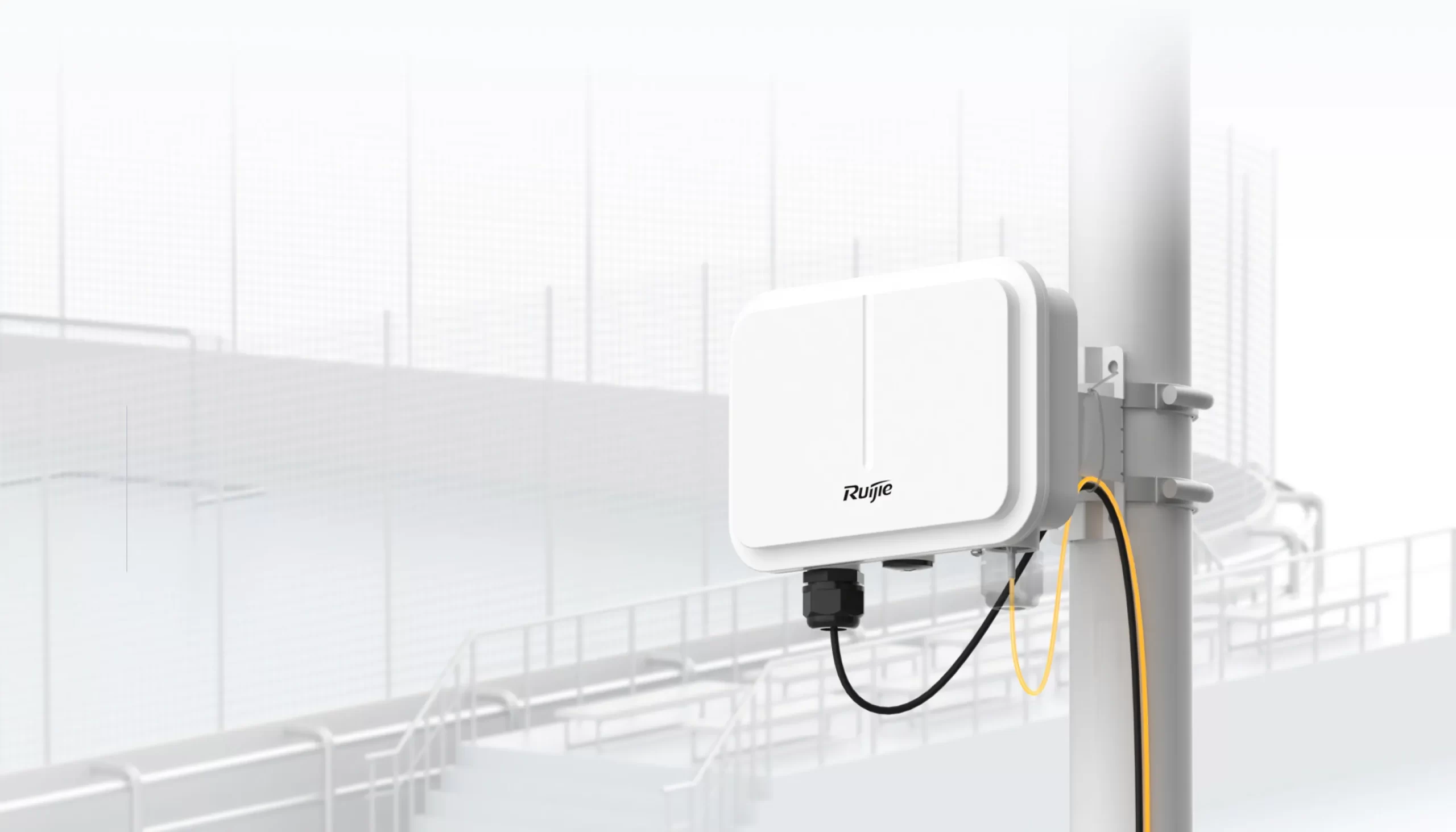

| Installation Mode | Wall/pole-mount installation | |
| IP Rating | IP68 | |
| MTBF | 250,000 hours | |
| Surge Protection | Common mode +/-9kV | |
|
Safety Standard |
GB4943, EN/IEC 60950-1 | |
|
EMC Standard |
GB9254, EN301 489 | |
|
Radio Standard |
SRRC, EN300 328, EN301 893 | |
|
Wi-Fi Alliance |
· Wi-Fi CERTIFIED™ a, b, g, n, ac · Wi-Fi CERTIFIED 6™ · WPA3™-Enterprise, Personal · Wi-Fi Enhanced Open™ · Wi-Fi Agile Multiband™ · WMM® |
|
|
Software Features |
||
| WLAN | Maximum clients per AP | 1024 |
| SSID capacity | Up to 32 | |
| SSID hiding | Support | |
| Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID | Support | |
| Remote Intelligent Perception Technology (RIPT) | Support | |
| Smart device recognition | Support | |
| Intelligent load balancing based on the number of users or traffic | Support | |
| STA control | SSID/radio-based | |
|
Bandwidth control |
STA/SSID/AP-based speed control |
|
| Security | PSK and web authentication | Support |
| Data encryption | WPA (TKIP), WPA-PSK, WPA2 (AES), WEP (64 / 128-bit) | |
| WeChat authentication | Support | |
| QR code authentication | Support | |
| SMS authentication | Support | |
| PEAP authentication | Support | |
| Data frame filtering | Whitelist, static/dynamic blacklist | |
| User isolation | Support | |
| Rogue AP detection and countermeasure | Support | |
| Dynamic ACL assignment | Support | |
| RADIUS | Support | |
| CPU Protection Policy (CPP) | Support | |
| Network Foundation Protection Policy (NFPP) | Support | |
| Routing | IPv4 address | Static IP address or DHCP |
| IPv6 address | IPv6 terminal access authentication, ICMPv6 | |

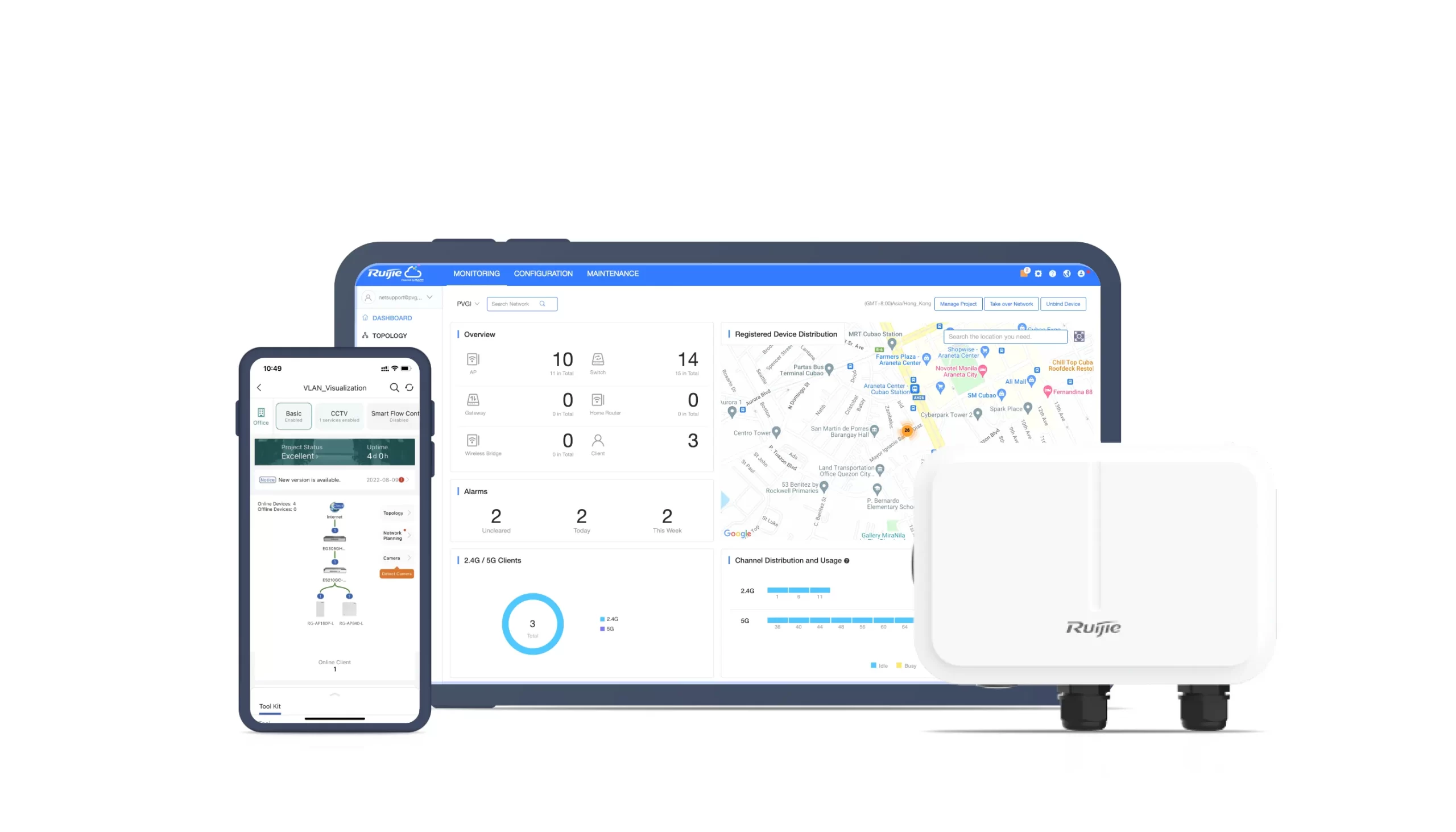

| Management and Maintenance | Supported wireless LAN controllers | Ruijie WS Series Wireless Controller Ruijie MACC-Base Software Controller Ruijie Cloud (Public Cloud) |
| Management protocol | Telnet, SSH, TFTP, Web | |
| Wireless Intelligent AI Optimization Service (WIS) | Support | |
| SNMP | SNMPV1,V2c,V3 | |
| Syslog / Debug | Support | |
| FAT/FIT/MACC mode switching | Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management | |
