RBD53iG-5HacD2HnD

ROSE Data server (RDS)

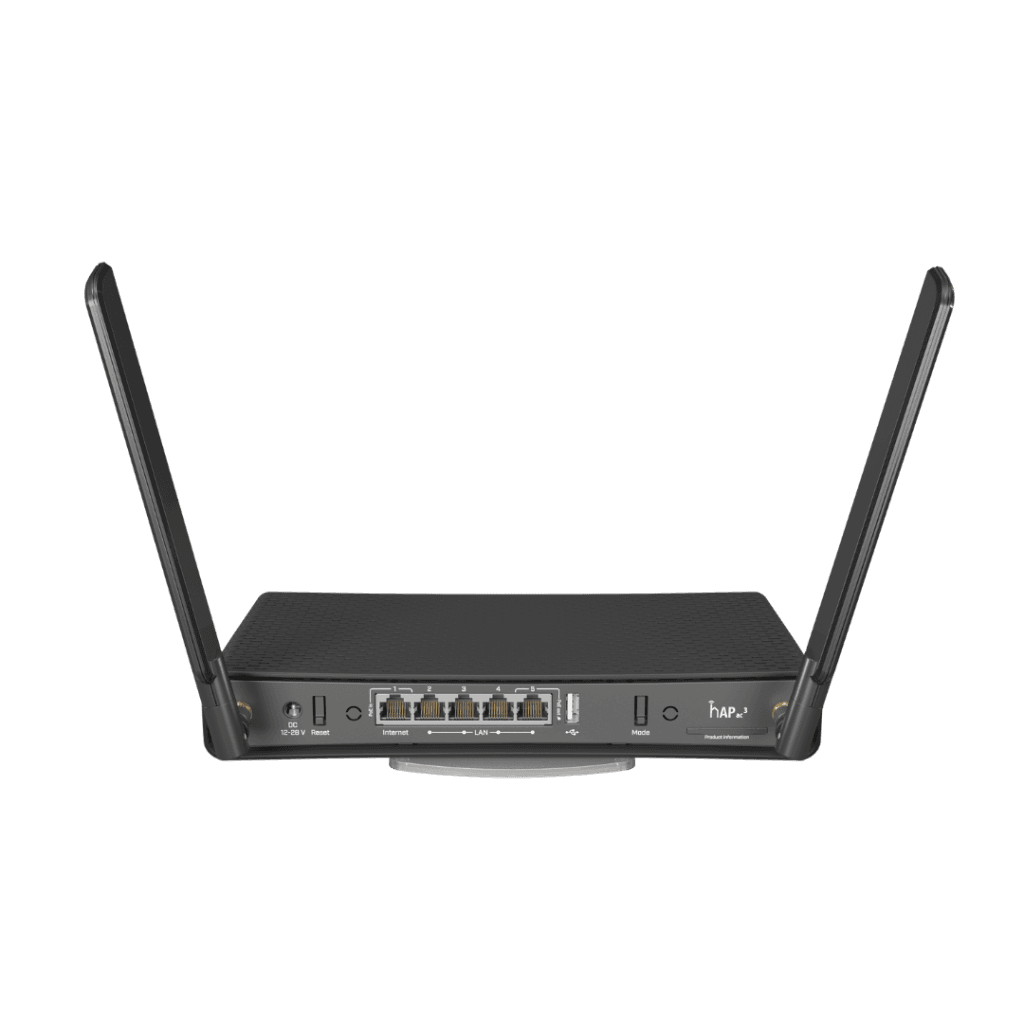

A wireless dual-band router with 5 Gigabit Ethernet ports and external high gain antennas for more coverage.



The hAP ac³ is a powerful and affordable home access point designed to deliver strong, stable Wi-Fi across every room—thanks to high-gain external antennas and optional RP-SMA connectors for even wider coverage. With a quad-core CPU, 5 Gigabit Ethernet ports, 256 MB of RAM, and PoE support, it easily handles the demands of modern households. Add storage via USB, mount it any way you like, and enjoy reliable, highperformance connectivity for years to come.

Specifications

Details
Product codeRBD53iG-5HacD2HnD
ArchitectureARM 32bit
CPUIPQ-4019
CPU core count4
CPU nominal frequency448-896 (auto) MHz
Switch chip modelIPQ-4019
Dimensions251 x 129 x 39 mm
RouterOS license4
Operating System RouterOS
Size of RAM256 MB
Storage size128 MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 70°C
IPsec hardware accelerationYes
Suggested price$109.00

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz3
Wireless 2.4 GHz chip modelIPQ-4019
Wireless 2.4 GHz generationWi-Fi 4
Wireless 5 GHz Max data rate867 Mbit/s
Wireless 5 GHz number of chains2
Wireless 5 GHz standards802.11a/n/ac
Antenna gain dBi for 5 GHz5.5
Wireless 5 GHz chip modelIPQ-4019
Wireless 5 GHz generationWi-Fi 5
WiFi speedAC1200

Ethernet

Details
10/100/1000 Ethernet ports5
Number of 1G Ethernet ports with PoE-out1

Peripherals

Details
Number of USB ports1
USB Power ResetYes
USB slot typeUSB type A
Max USB current (A)1

Powering

Details
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-28 V
Max power consumption30 W
Max power consumption without attachments12 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage18-28 V

PoE-out

Details
PoE-out portsEther5
PoE outPassive PoE
Max out per port output (input 18-30 V)0.5 A
Max total out (A)0.5 A

Certification & Approvals

Details
CertificationCE, FCC, IC, EAC, ROHS
IPIP20

Other

Details
Mode buttonYes

Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s25-100
11MBit/s25-94
6MBit/s26-96
54MBit/s23-78
MCS026-96
MCS722-73
5 GHzTransmit (dBm)Receive Sensitivity
6MBit/s26-96
54MBit/s22-80
MCS026-96
MCS721-75
MCS919-70

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
Block DiagramOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)
FCC Grant of Certification (2.4GHz)Open
FCC Grant of Certification (5GHz)Open

Download: Full CE declaration (PDF)

Information about hAP lite TC

[BG] BulgarianС настоящето, "Mikrotikls SIA", декларира, че hAP lite TC е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/53/EC.
[CZ] Czech"Mikrotikls SIA" tímto prohlašuje, že hAP lite TC splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 2014/53/ES.
[DK] DanishUndertegnede "Mikrotikls SIA" erklærer herved, at følgende udstyr hAP lite TC overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/53/EF.
[DE] GermanHiermit erklärt "Mikrotikls SIA", dass sich das Gerät hAP lite TC in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2014/53/EG befindet.
[EE] EstonianKäesolevaga kinnitab "Mikrotikls SIA" seadme hAP lite TC vastavust direktiivi 2014/53/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
[GR] GreekΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ "Mikrotikls SIA" ΔΗΛΩΝΕΙ ΟΤΙ hAP lite TC ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/ΕΚ
[EN] EnglishHereby, "Mikrotikls SIA", declares that this hAP lite TC is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EC.
[ES] SpanishPor la presente, "Mikrotikls SIA", declara que este hAP lite TC cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 2014/53/EC.
[IT] ItalianCon la presente "Mikrotikls SIA" dichiara che questo hAP lite TC è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2014/53/CE.
[LV] LatvianAr šo "Mikrotikls SIA" deklarē, ka hAP lite TC atbilst Direktīvas 2014/53/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
[LT] LithuanianŠiuo "Mikrotikls SIA" deklaruoja, kad šis hAP lite TC atitinka esminius reikalavimus ir kitas 2014/53/EB Direktyvos nuostatas
[HU] HungarianA "Mikrotikls SIA" ezzennel kijelenti, hogy a hAP lite TC típusú beren-dezés teljesíti az alapvető követelményeket és más 2014/53/EK irányelvben meghatározott vonatkozó rendelkezéseket.
[NL] DutchHierbij verklaart "Mikrotikls SIA" dat het toestel l hAP lite TC in overeenstemming is met de essentiële eisen en de andere relevante bepalin-gen van richtlijn 2014/53/EG.
[PL] PolishNiniejszym "Mikrotikls SIA" deklaruje że hAP lite TC jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy 2014/53/EC.
[PT] PortugueseEu, "Mikrotikls SIA", declaro que o hAP lite TC cumpre os requisitos essenciais e outras provisões relevantes da Directiva 2014/53/EC.
[RO] RomanianPrin prezenta, "Mikrotikls SIA", declară că aparatul hAP lite TC este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 2014/53/CE.
[SK] Slovak"Mikrotikls SIA" týmto vyhlasuje, že hAP lite TC spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 2014/53/ES.
[SI] Slovenian"Mikrotikls SIA" izjavlja, da je ta hAP lite TC v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 2014/53/ES.
[FI] Finish"Mikrotikls SIA" vakuuttaa täten että hAP lite TC tyyppinen laite on direktiivin 2014/53/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
[SE] SwedishDenna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta bestämmelser i direktiv 2014/53/EC.
[NO] Norwegian"Mikrotikls SIA", Erklærer herved at hAP lite TC er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EF.
×
