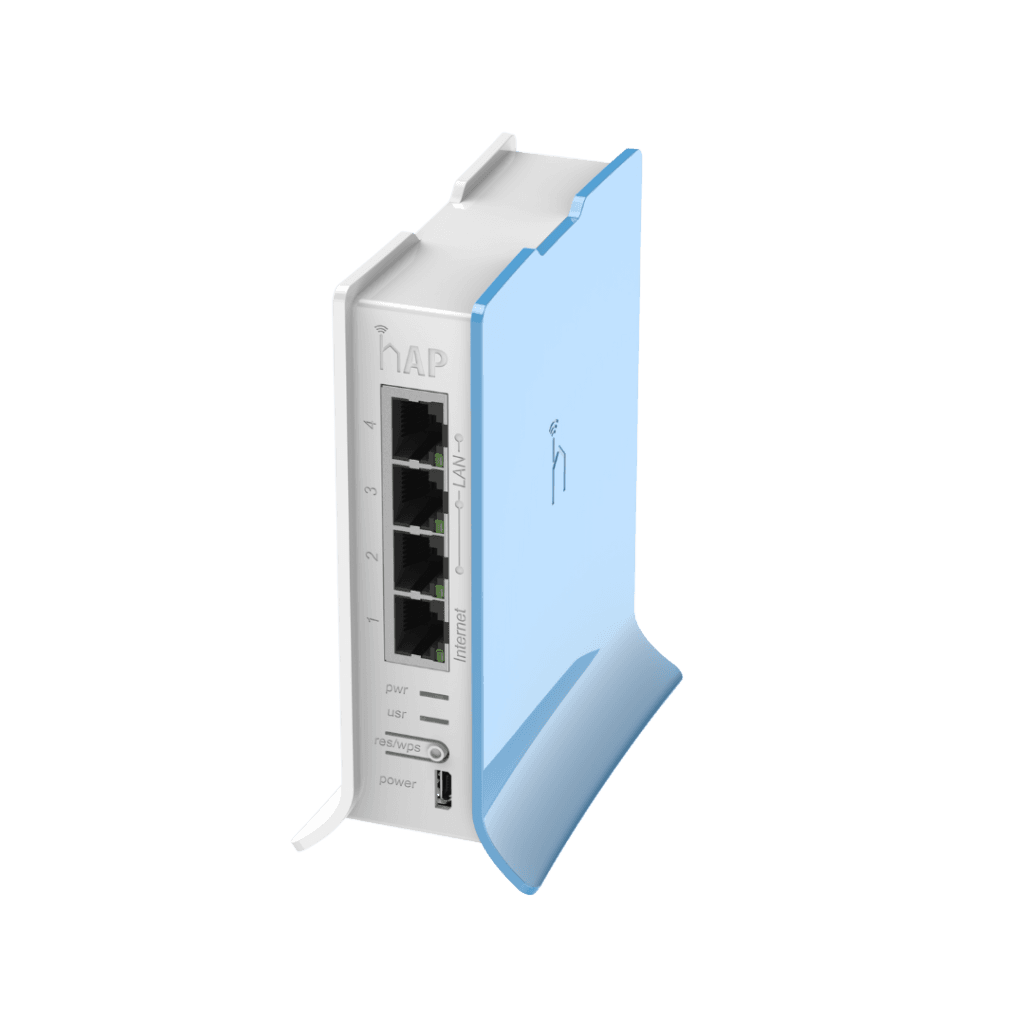

RB941-2nD-TC

hAP lite TC

Small home AP with four ethernet ports and a colorful enclosure.



The hAP lite is a compact and versatile access point perfect for homes, apartments, and small offices. It features a powerful 650MHz CPU, dual-chain 2.4GHz wireless, and four Fast Ethernet ports, all powered by RouterOS for advanced networking capabilities. With WPS button support and CAPsMAN compatibility, it offers seamless connectivity and centralized management with ease.

Specifications

Details
Product codeRB941-2nD-TC
ArchitectureSMIPS
CPUQCA9533
CPU core count1
CPU nominal frequency650 MHz
Switch chip modelQCA9533-BL3A
RouterOS license4
Operating System RouterOS
Size of RAM32 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 100'000 hours at 25C
Tested ambient temperature-20°C to 70°C
Suggested price$24.95

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz1.5
Wireless 2.4 GHz chip modelQCA9533
Wireless 2.4 GHz generationWi-Fi 4

Ethernet

Details
10/100 Ethernet ports4

Powering

Details
MicroUSB input Voltage5 V
Number of DC inputs1 (MicroUSB)
Max power consumption3.5 W
Cooling typePassive

Certification & Approvals

Details
CertificationFCC, IC

Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s22-96
11MBit/s22-89
6MBit/s20-93
54MBit/s18-74
MCS020-93
MCS716-71

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
Block DiagramOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)
FCC Grant of Certification (2.4GHz)Open

Download: Full CE declaration (PDF)

Information about hAP lite TC

[BG] BulgarianС настоящето, "Mikrotikls SIA", декларира, че hAP lite TC е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/53/EC.
[CZ] Czech"Mikrotikls SIA" tímto prohlašuje, že hAP lite TC splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 2014/53/ES.
[DK] DanishUndertegnede "Mikrotikls SIA" erklærer herved, at følgende udstyr hAP lite TC overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/53/EF.
[DE] GermanHiermit erklärt "Mikrotikls SIA", dass sich das Gerät hAP lite TC in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2014/53/EG befindet.
[EE] EstonianKäesolevaga kinnitab "Mikrotikls SIA" seadme hAP lite TC vastavust direktiivi 2014/53/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
[GR] GreekΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ "Mikrotikls SIA" ΔΗΛΩΝΕΙ ΟΤΙ hAP lite TC ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/ΕΚ
[EN] EnglishHereby, "Mikrotikls SIA", declares that this hAP lite TC is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EC.
[ES] SpanishPor la presente, "Mikrotikls SIA", declara que este hAP lite TC cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 2014/53/EC.
[IT] ItalianCon la presente "Mikrotikls SIA" dichiara che questo hAP lite TC è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2014/53/CE.
[LV] LatvianAr šo "Mikrotikls SIA" deklarē, ka hAP lite TC atbilst Direktīvas 2014/53/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
[LT] LithuanianŠiuo "Mikrotikls SIA" deklaruoja, kad šis hAP lite TC atitinka esminius reikalavimus ir kitas 2014/53/EB Direktyvos nuostatas
[HU] HungarianA "Mikrotikls SIA" ezzennel kijelenti, hogy a hAP lite TC típusú beren-dezés teljesíti az alapvető követelményeket és más 2014/53/EK irányelvben meghatározott vonatkozó rendelkezéseket.
[NL] DutchHierbij verklaart "Mikrotikls SIA" dat het toestel l hAP lite TC in overeenstemming is met de essentiële eisen en de andere relevante bepalin-gen van richtlijn 2014/53/EG.
[PL] PolishNiniejszym "Mikrotikls SIA" deklaruje że hAP lite TC jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy 2014/53/EC.
[PT] PortugueseEu, "Mikrotikls SIA", declaro que o hAP lite TC cumpre os requisitos essenciais e outras provisões relevantes da Directiva 2014/53/EC.
[RO] RomanianPrin prezenta, "Mikrotikls SIA", declară că aparatul hAP lite TC este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 2014/53/CE.
[SK] Slovak"Mikrotikls SIA" týmto vyhlasuje, že hAP lite TC spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 2014/53/ES.
[SI] Slovenian"Mikrotikls SIA" izjavlja, da je ta hAP lite TC v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 2014/53/ES.
[FI] Finish"Mikrotikls SIA" vakuuttaa täten että hAP lite TC tyyppinen laite on direktiivin 2014/53/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
[SE] SwedishDenna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta bestämmelser i direktiv 2014/53/EC.
[NO] Norwegian"Mikrotikls SIA", Erklærer herved at hAP lite TC er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EF.
×
