RB750Gr3

hEX

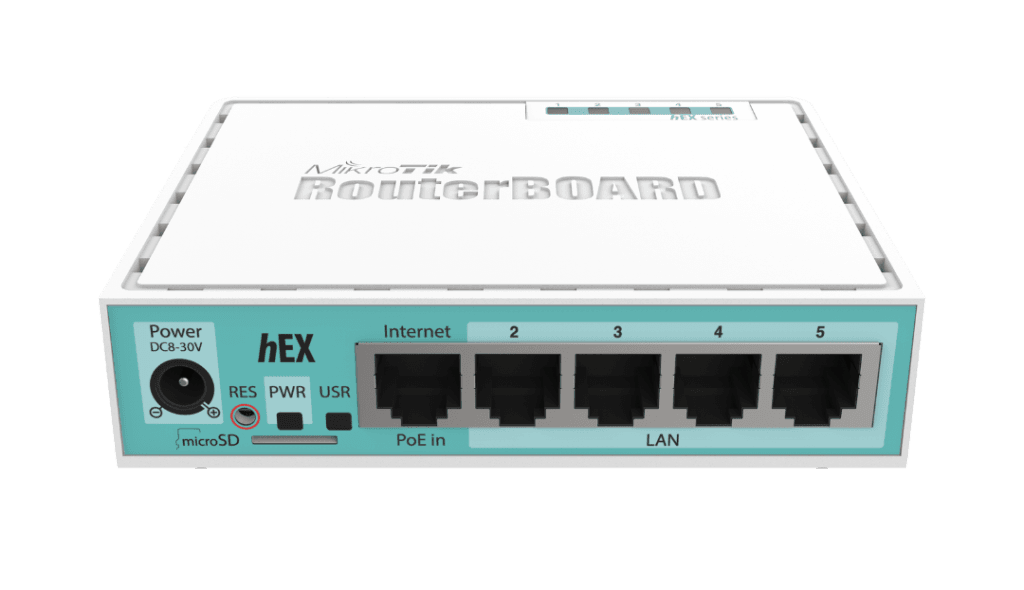

The hEX is a compact yet powerful five-port Gigabit Ethernet router designed for wired network setups. Equipped with a dual-core 880MHz CPU, 256MB RAM, and IPsec hardware encryption, it delivers high performance for advanced networking tasks. With a USB port, microSD slot for enhanced storage speed, and support for The Dude server package, it’s an ideal solution for reliable and secure wired connectivity.

Specifications

Details
Product codeRB750Gr3
ArchitectureMMIPS
CPUMT7621A
CPU core count2
CPU nominal frequency880 MHz
CPU Threads count4
Switch chip modelMT7621A
Dimensions113x89x28mm
RouterOS license4
Operating System RouterOS
Size of RAM256 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 100'000 hours at 25C
Tested ambient temperature-40°C to 60°C
IPsec hardware accelerationYes
Suggested price$59.95

Powering

Details
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage8-30 V
Max power consumption10 W
Max power consumption without attachments5 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage8-30 V

Ethernet

Details
10/100/1000 Ethernet ports5

Peripherals

Details
Memory card typemicroSD
Memory Cards1
Number of USB ports1
USB Power ResetYes
USB slot typeUSB type A
Max USB current (A)1

Other

Details
PCB temperature monitorYes
Voltage MonitorYes
Mode buttonYes
BeeperYes

Certification & Approvals

Details
CertificationCE, EAC, ROHS
IPIP20

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
RouterOS current releaseDownload
RouterBoot firmware Download
Block Diagram with disabled switchingOpen
Block Diagram with enabled switchingOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)

Download: Full CE declaration (PDF)
