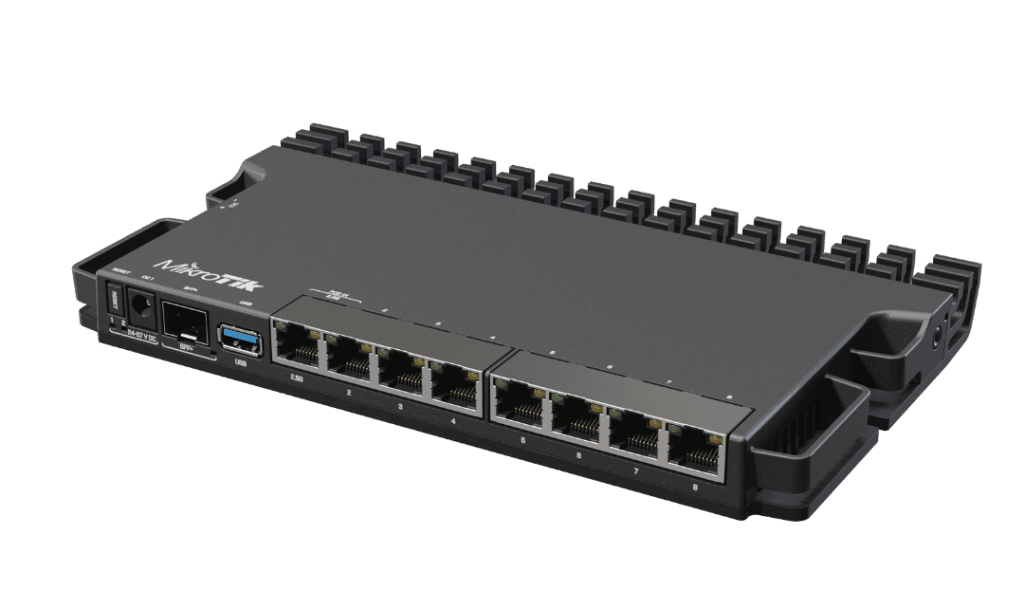

RB5009UG+S+IN

The RB5009UG+S+IN is a powerhouse home lab router, combining compact design with top-tier performance. Featuring nine wired ports—including Gigabit, 2.5G, and 10G SFP+—it’s built for high-speed connectivity and
efficiency. With multiple power options, efficient cooling, and the ability to mount four units in a single 1U rack space, this router is perfect for demanding network setups.

Specifications

Details
Product codeRB5009UG+S+IN
ArchitectureARM 64bit
CPU88F7040
CPU core count4
CPU nominal frequency350-1400 (auto) MHz
Switch chip model88E6393
RouterOS license5
Operating System RouterOS v7
Size of RAM1 GB
Storage size1 GB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 60°C
IPsec hardware accelerationYes
Suggested price$219.00

Powering

Details
Number of DC inputs3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage24-57 V
2-pin terminal input Voltage24-57 V
Max power consumption25 W
Max power consumption without attachments14 W
Cooling typePassive
PoE in802.3af/at
PoE in input Voltage24-57 V

Ethernet

Details
10/100/1000 Ethernet ports7
Number of 2.5G Ethernet ports1

Fiber

Details
SFP+ ports1

Peripherals

Details
Number of USB ports1
USB Power ResetYes
USB slot typeUSB 3.0 type A
Max USB current (A)1.5

Other

Details
CPU temperature monitorYes

Certification & Approvals

Details
CertificationCE, EAC, ROHS

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
RouterOS current releaseDownload
Block DiagramOpen
DimensionsOpen
SFP compatibility listOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)

Download: Full CE declaration (PDF)

Information about RB5009UG+S+IN

[BG] BulgarianС настоящето, "Mikrotikls SIA", декларира, че RB5009UG+S+IN е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/30/EC.
[CZ] Czech"Mikrotikls SIA" tímto prohlašuje, že RB5009UG+S+IN splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 2014/30/ES.
[DK] DanishUndertegnede "Mikrotikls SIA" erklærer herved, at følgende udstyr RB5009UG+S+IN overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/30/EF.
[DE] GermanHiermit erklärt "Mikrotikls SIA", dass sich das Gerät RB5009UG+S+IN in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2014/30/EG befindet.
[EE] EstonianKäesolevaga kinnitab "Mikrotikls SIA" seadme RB5009UG+S+IN vastavust direktiivi 2014/30/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
[GR] GreekΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ "Mikrotikls SIA" ΔΗΛΩΝΕΙ ΟΤΙ RB5009UG+S+IN ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/30/ΕΚ
[EN] EnglishHereby, "Mikrotikls SIA", declares that this RB5009UG+S+IN is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EC.
[ES] SpanishPor la presente, "Mikrotikls SIA", declara que este RB5009UG+S+IN cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 2014/30/EC.
[IT] ItalianCon la presente "Mikrotikls SIA" dichiara che questo RB5009UG+S+IN è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2014/30/CE.
[LV] LatvianAr šo "Mikrotikls SIA" deklarē, ka RB5009UG+S+IN atbilst Direktīvas 2014/30/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
[LT] LithuanianŠiuo "Mikrotikls SIA" deklaruoja, kad šis RB5009UG+S+IN atitinka esminius reikalavimus ir kitas 2014/30/EB Direktyvos nuostatas
[HU] HungarianA "Mikrotikls SIA" ezzennel kijelenti, hogy a RB5009UG+S+IN típusú beren-dezés teljesíti az alapvető követelményeket és más 2014/30/EK irányelvben meghatározott vonatkozó rendelkezéseket.
[NL] DutchHierbij verklaart "Mikrotikls SIA" dat het toestel l RB5009UG+S+IN in overeenstemming is met de essentiële eisen en de andere relevante bepalin-gen van richtlijn 2014/30/EG.
[PL] PolishNiniejszym "Mikrotikls SIA" deklaruje że RB5009UG+S+IN jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy 2014/30/EC.
[PT] PortugueseEu, "Mikrotikls SIA", declaro que o RB5009UG+S+IN cumpre os requisitos essenciais e outras provisões relevantes da Directiva 2014/30/EC.
[RO] RomanianPrin prezenta, "Mikrotikls SIA", declară că aparatul RB5009UG+S+IN este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 2014/30/CE.
[SK] Slovak"Mikrotikls SIA" týmto vyhlasuje, že RB5009UG+S+IN spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 2014/30/ES.
[SI] Slovenian"Mikrotikls SIA" izjavlja, da je ta RB5009UG+S+IN v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 2014/30/ES.
[FI] Finish"Mikrotikls SIA" vakuuttaa täten että RB5009UG+S+IN tyyppinen laite on direktiivin 2014/30/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
[SE] SwedishDenna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta bestämmelser i direktiv 2014/30/EC.
[NO] Norwegian"Mikrotikls SIA", Erklærer herved at RB5009UG+S+IN er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/30/EF.
×
