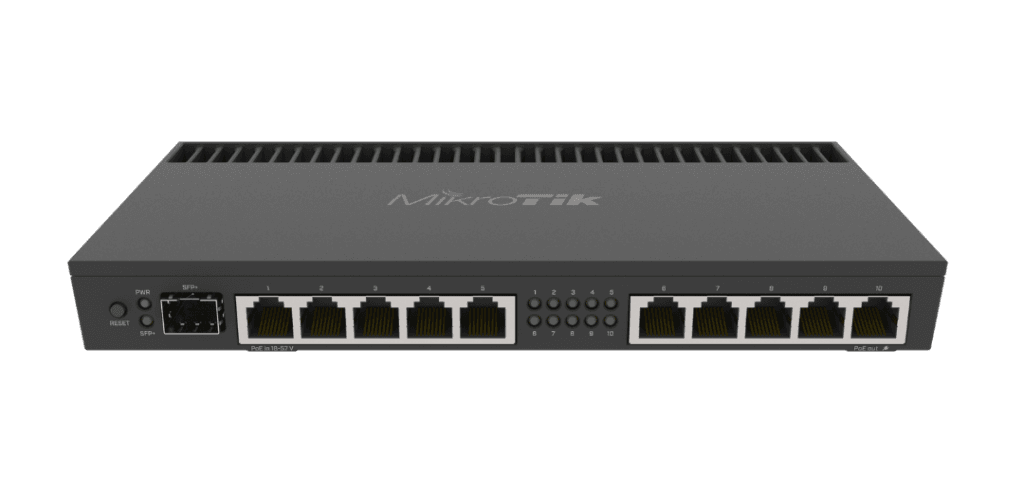

RB4011iGS+RM

The RB4011 series delivers exceptional performance with ten Gigabit ports, a 10Gbps SFP+ interface, and IPsec hardware acceleration—all at an unbeatable price. Powered by a quad-core Cortex A15 CPU and 1GB RAM, it ensures high-speed connectivity and efficient network management. Housed in a sleek matte black metal enclosure, the RB4011iGS+RM model also includes rackmount ears for secure installation in a standard 1U rack space.

Specifications

Details
Product codeRB4011iGS+RM
ArchitectureARM 32bit
CPUAL21400
CPU core count4
CPU nominal frequencyauto (533 - 1900) MHz
Switch chip modelRTL8367SB
Dimensions228 x 120 x 30 mm
RouterOS license5
Operating System RouterOS v7
Size of RAM1 GB
Storage size512 MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 70°C
IPsec hardware accelerationYes
Suggested price$219.00

Powering

Details
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-57 V
Max power consumption33 W
Max power consumption without attachments18 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage18-57 V

PoE-out

Details
PoE-out portsEther10
PoE outPassive PoE up to 57V
Max out per port output (input 18-30 V)600 mA
Max out per port output (input 30-57 V)420 mA
Max total out (A)600 mA

Ethernet

Details
10/100/1000 Ethernet ports10

Fiber

Details
SFP+ ports1

Peripherals

Details
Serial console portRJ45

Other

Details
PCB temperature monitorYes
Voltage MonitorYes

Certification & Approvals

Details
CertificationCE, EAC, ROHS
IPIP20

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
RouterOS current releaseDownload
Mounting dimensionsOpen
Block diagramOpen
SFP compatibility listOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)

Download: Full CE declaration (PDF)

Information about RB4011iGS+RM

[BG] BulgarianС настоящето, "Mikrotikls SIA", декларира, че RB4011iGS+RM е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/30/EC.
[CZ] Czech"Mikrotikls SIA" tímto prohlašuje, že RB4011iGS+RM splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 2014/30/ES.
[DK] DanishUndertegnede "Mikrotikls SIA" erklærer herved, at følgende udstyr RB4011iGS+RM overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/30/EF.
[DE] GermanHiermit erklärt "Mikrotikls SIA", dass sich das Gerät RB4011iGS+RM in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2014/30/EG befindet.
[EE] EstonianKäesolevaga kinnitab "Mikrotikls SIA" seadme RB4011iGS+RM vastavust direktiivi 2014/30/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
[GR] GreekΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ "Mikrotikls SIA" ΔΗΛΩΝΕΙ ΟΤΙ RB4011iGS+RM ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/30/ΕΚ
[EN] EnglishHereby, "Mikrotikls SIA", declares that this RB4011iGS+RM is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EC.
[ES] SpanishPor la presente, "Mikrotikls SIA", declara que este RB4011iGS+RM cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 2014/30/EC.
[IT] ItalianCon la presente "Mikrotikls SIA" dichiara che questo RB4011iGS+RM è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2014/30/CE.
[LV] LatvianAr šo "Mikrotikls SIA" deklarē, ka RB4011iGS+RM atbilst Direktīvas 2014/30/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
[LT] LithuanianŠiuo "Mikrotikls SIA" deklaruoja, kad šis RB4011iGS+RM atitinka esminius reikalavimus ir kitas 2014/30/EB Direktyvos nuostatas
[HU] HungarianA "Mikrotikls SIA" ezzennel kijelenti, hogy a RB4011iGS+RM típusú beren-dezés teljesíti az alapvető követelményeket és más 2014/30/EK irányelvben meghatározott vonatkozó rendelkezéseket.
[NL] DutchHierbij verklaart "Mikrotikls SIA" dat het toestel l RB4011iGS+RM in overeenstemming is met de essentiële eisen en de andere relevante bepalin-gen van richtlijn 2014/30/EG.
[PL] PolishNiniejszym "Mikrotikls SIA" deklaruje że RB4011iGS+RM jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy 2014/30/EC.
[PT] PortugueseEu, "Mikrotikls SIA", declaro que o RB4011iGS+RM cumpre os requisitos essenciais e outras provisões relevantes da Directiva 2014/30/EC.
[RO] RomanianPrin prezenta, "Mikrotikls SIA", declară că aparatul RB4011iGS+RM este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 2014/30/CE.
[SK] Slovak"Mikrotikls SIA" týmto vyhlasuje, že RB4011iGS+RM spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 2014/30/ES.
[SI] Slovenian"Mikrotikls SIA" izjavlja, da je ta RB4011iGS+RM v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 2014/30/ES.
[FI] Finish"Mikrotikls SIA" vakuuttaa täten että RB4011iGS+RM tyyppinen laite on direktiivin 2014/30/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
[SE] SwedishDenna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta bestämmelser i direktiv 2014/30/EC.
[NO] Norwegian"Mikrotikls SIA", Erklærer herved at RB4011iGS+RM er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/30/EF.
×
