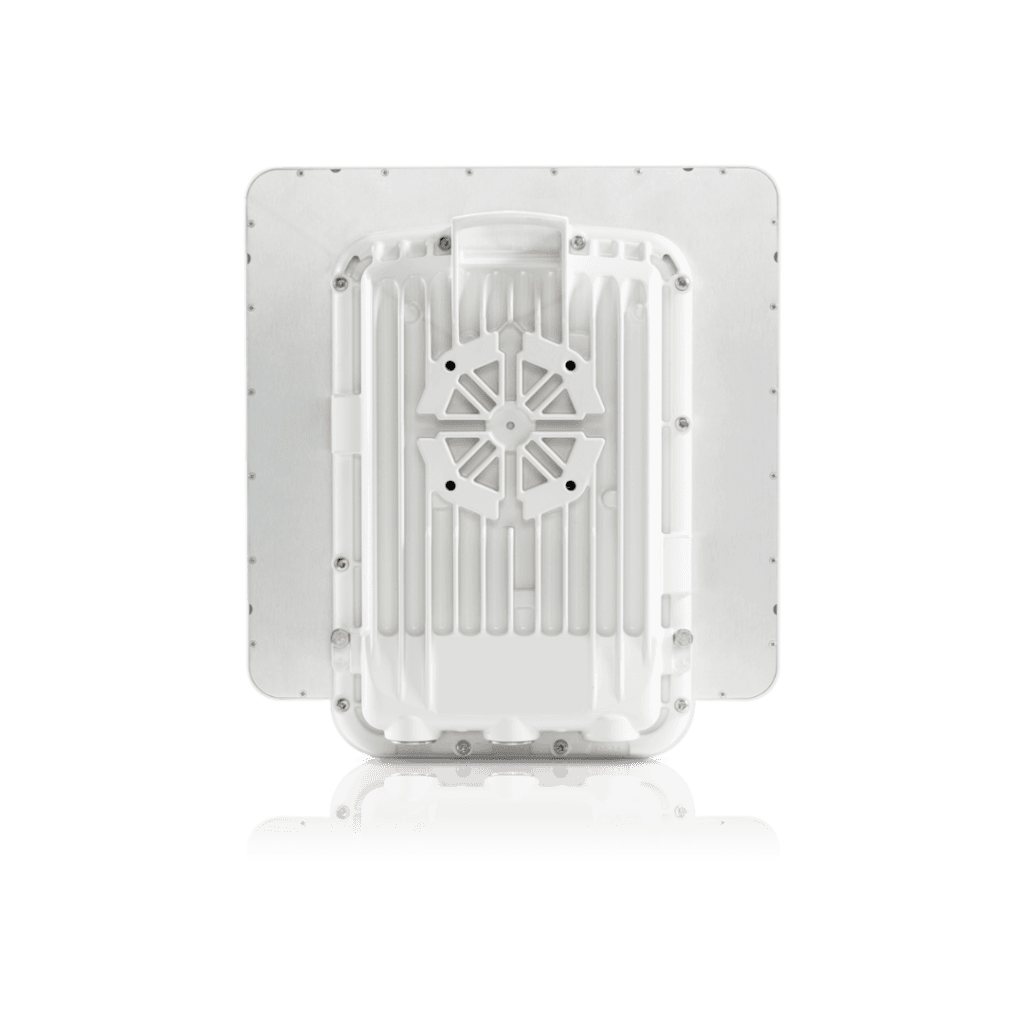

PTP 670
PTP 670 systems provide 4.9 to 6.05 GHz, multi-band flexibility in a single radio and operate in channel sizes from 5 to 45 MHz.
Product Description
RADIO TECHNOLOGY
RF Bands
Wide-band operation 4.9 to 6.05 GHz (Allowable frequencies and bands are dictated by individual country regulations)
Channel Sizes
5, 10, 15, 20, 30, 40, and 45 MHz channels Channel sizes depend on individual country regulations
Spectral Efficiency
10 bps/Hz maximum
Channel Selection
By Dynamic Spectrum Optimization or manual intervention Automatic selection on start-up and continual self-optimization to avoid interference
Maximum Transmit Power
Up to 27 dBm
System Gain
Up to 164 dB with Integrated antenna
Antenna
Connectorized: operate with a selection of separately-purchased single and dual polarity antennas through 2 x N-type female connectors
Range
Up to 155 miles (250 km)
Security
FIPS-197 compliant 128/256-bit AES Encryption (optional) HTTPS and SNMPv3 Identity-based user accounts Configurable password rules User authentication and RADIUS support Event logging and management; optional logging via syslog Disaster recovery and vulnerability management
ETHERNET BRIDGING
Latency
1-3 milliseconds one direction
QOS
Extensive QOS supporting up to 8 Queues
Packet Classification
Layer 2 and Layer 3 IEEE 802.1p, MPLS, Ethernet priority
Packet Performance
Line rate ( >850K packets per second)
Frame Support
PTP Mode: Jumbo frame up to 9600 bytes HCMP Mode: 2000 bytes per frame
MANAGEMENT
Network Management
In-band and out-of-band management (OOBM)
System Management
IPv6/IPv4 dual-stack management support Web access via browser using HTTP or HTTPS/TLS3 SNMP v1, v2c and v3, MIB-II & proprietary PTP MIB Online spectrum analyzer (no impact on payload traffic or network operation)
Installation
Built-in audio and graphical assistance for link optimization
Remote Modules Master
Up to 8 Nodes
Channel Bandwidth
20 MHz and 40 MHz
Dimensions
Connectorized ODU: Width 204mm (8.0”), Height 318mm (12.5”), Depth 90mm (3.5”)
Weight
Connectorized ODU: 3.1 kg (6.8 lbs) including bracket
Operating Temperature
-40° to +140° F (-40° to +60° C), including solar radiation
Dust- Water Intrusion Protection
IP66 and IP67
Wind Speed Survival
200 mph (322 kph)
Power Supply
1. AC power injector: 32° to 104° F (0° to +40° C); 35 W; 90-240 VAC, 50/60Hz Dimensions: Width 5.2”(132mm), Height 1.4”(36mm), Depth 2”(51mm) 2. AC + DC power injector: -40° to 140° F (-40° to +60° C); 70 W; 90-240 VAC, 50/60 Hz Dimensions: Width 9.75” (250 mm), Height 1.5” (40 mm), Depth 3” (80 mm)
Power Consumption
30 W maximum (up to 70 W with 802.3at device on auxiliary port
ENVIRONMENTAL & REGULATORY
Protection and Safety
UL60950-1; IEC60950-1; EN60950-1; CSA-C22.2 NO. 60950-1; CB approval for Global
Radio
4.9 GHz: FCC Part 90Y, RSS-111 5.x GHz: FCC Part 15, sub-parts 15C and 15E; RSS 210 Issue 8; EN 302 502; EN 301 893 Eire ComReg 02/71R1, UK Approval to IR2007
EMC
Europe – EN 301 489-1 and -4
