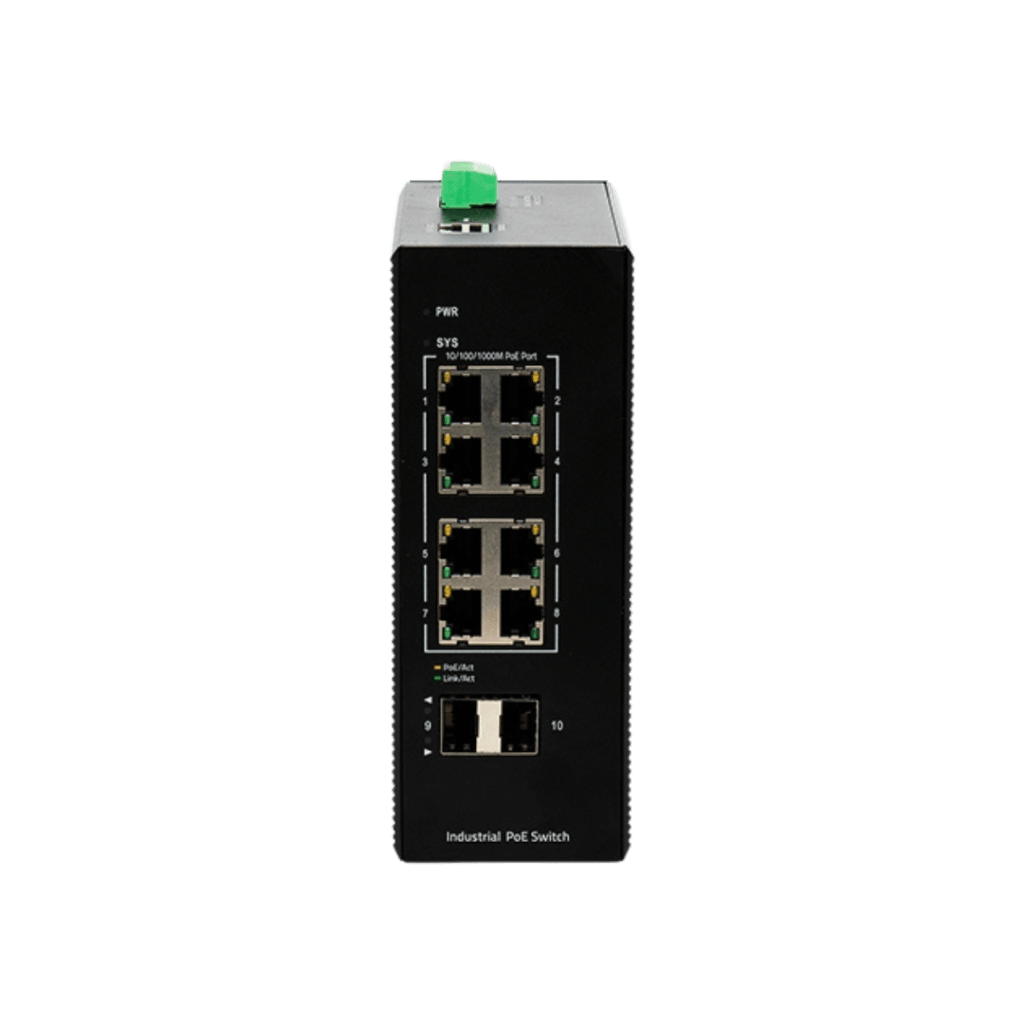

Managed L2+ Full Gigabit PoE+ Industrial Switch

IES200-V25-2S8P

IES200-V25-P series, based on a new generation of high-performance hardware and BDROS platform of BDCOM’s independent intellectual property rights, supports ACL, QinQ, QoS and static routing.
  • Advanced equipment architecture and industry-leading port density with IP40 protection and 6KV lightning protection
Gigabit Interface
RJ458 PoE+
SFP2
Console (RJ45)1
Backplane (Gbps)56
Forwarding rate (Mpps)15
Chassis
Dimensions (WxDxH)(mm)165x130x65
Weight (KG)(empty)1.1
Package
Dimensions (WxDxH)(mm)242*207*86
Weight(KG)1.6
Power consumption
no-load<12W
full-load(with PoE)260W
Power supplyDual DC 48~ 55V
PoE power budget240W
Total output BTU (1000BTU/H=293W)887.37
MTBF(H)>800,000
Forwarding modeStore-forward
Flash (MB)16
DRAM (MB)128
MAC8K
Buffer size(Mb)4
Jumbo frame9K
Total SVI10

VLAN

4K VLAN entries

GVRP

QinQ

Private VLAN

Ring protection

802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)

BPDU protection, root protection and ring protection

EAPS

ERPS

Multicast

MVR

IGMP Snooping

IGMP Fast Leave

Multicast group policy and multicast number limit

IP routing

Default Gateway

DHCP

DHCP Client

DHCP Snooping

QoS

CAR traffic control

802.1P/DSCP priority remark

Multiple queuing algorithms such as SP, WRR or SP+WRR

IP ACL/ANY/VLAN/COS/

DSCP/IP Preference based QoS

Traffic supervision and traffic shaping

Drop,Redirect

Security features

Identification and filtering of L2/L3/L4-based ACL

Suppression of broadcast, multicast and unknown unicast packet

Port isolation

Port security, IP+MAC+port binding

DHCP sooping, DHCP option82

IEEE 802.1x authentication

Radius and TACACS+ authentication

Command line hierarchical protection

Reliability

Static/LACP

Ethernet OAM

ISSU

Backuplink

Management and maintenance

Console, Telnet, SSH 2.0

Zero Touch Provisioning (ZTP)

HTTP/HTTPS

SNMP v1/v2/v3

Upload and download files through TFTP/FTP

Remote

IPv6

ICMPv6, DHCPv6, ACLv6, IPv6 Telnet

IPv6 Neighbor Discovery

Path MTU Discovery

MLD Snooping

ACL

L2/L3/L4 ACL

IPv4, IPv6 ACL

VLAN ACL
