L41G-2axD

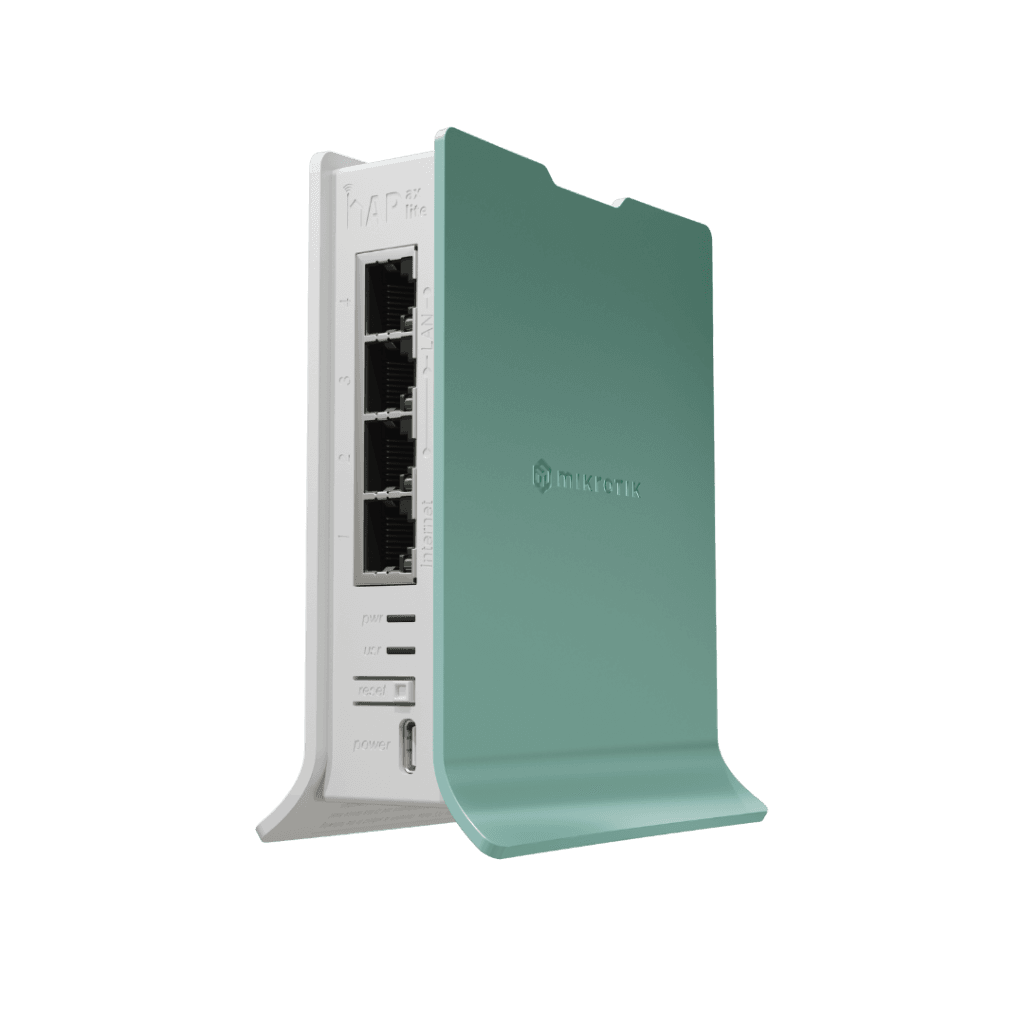

hAP ax lite is the perfect tiny solution when you’ve got to cut costs but can’t afford to sacrifice performance. Our latest Gen6 AX wireless chip allows you to squeeze the traditional 2.4 GHz wireless spectrum like a lemon!
Our hAP lite devices have always been about value. With 256 MB of RAM , a modern ARM CPU running at 800 MHz, 4x Gigabit Ethernet ports , much higher dual-chain antenna gain (up to 4.3 dBi!), and a complete visual redesign, the new hAP ax lite is a real trailblazer of value and affordable networking.
Date Uploaded: March 15, 2023
Product Description
Specifications
Details | |
---|---|
Product code | L41G-2axD |
Architecture | ARM |
CPU | IPQ-5010 |
CPU core count | 2 |
CPU nominal frequency | 800 MHz |
Switch chip model | MT7531BE |
RouterOS license | 4 |
Operating System | RouterOS v7 |
Size of RAM | 256 MB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 100’000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Wireless capabilities
Details | |
---|---|
Wireless 2.4 GHz Max data rate | 574 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n/ax |
Antenna gain dBi for 2.4 GHz | 4.3 |
Wireless 2.4 GHz chip model | IPQ-5010 |
Wireless 2.4 GHz generation | Wi-Fi 6 |
WiFi speed | AX600 |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 4 |
Powering
Details | |
---|---|
Number of DC inputs | 1 (USB-C) |
Supported Voltage | 5 V |
Max power consumption | 8 W |
Cooling type | Passive |
Certification & Approvals
Details | |
---|---|
Certification | CE, FCC, IC, EAC, ROHS |
IP | 20 |
Other
Details | |
---|---|
Mode button | Yes |
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
1MBit/s | 22 | -100 |
11MBit/s | 22 | -100 |
6MBit/s | 22 | -95 |
54MBit/s | 18 | -77 |
MCS0 | 22 | -95 |
MCS7 | 17 | -75 |
MCS9 | 16 | -69 |
MCS11 | 15 | -61 |
