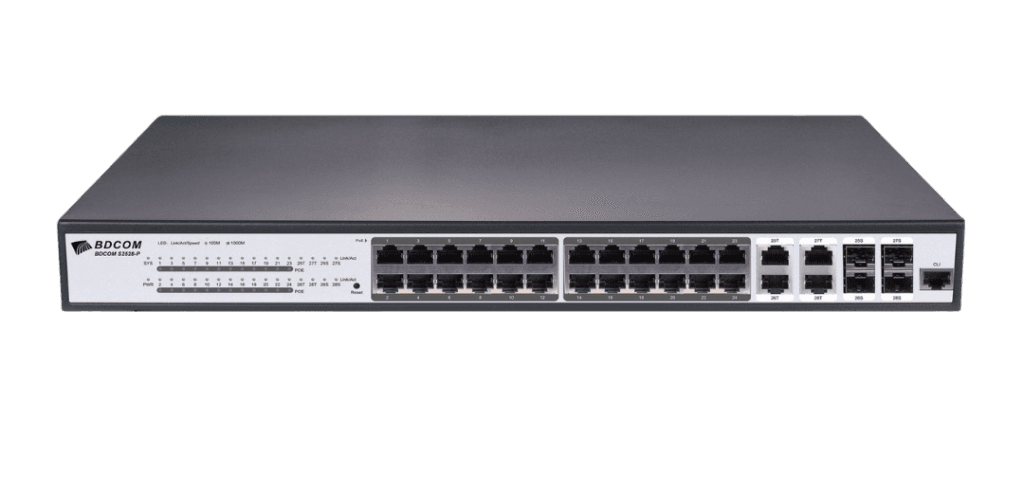

Interface | 24 GE PoE ports, 4 GE TX/SFP combo ports |
Console | 1 RJ45 port, 1 RST button |
Backplane | 56 Gbps |
Forwarding rate | 42 Mpps |
Chassis | |
Dimensions (WxDxH)(mm) | 440x210x44 |
Weight(KG)(empty) | 3 |
Package | |
Dimensions (WxDxH)(mm) | 555x295x88 |
Weight(KG) | 4.1 |
Power consumption | |
no-load | <17W |
full-load | 393.5W |
Power supply (AC: 100V-240V, 50Hz±10%) | 400W |
POE power budget | 370 W |
Total output BTU (1000BTU/H=293W) | 1365.19 |
Noise@25°C(dBA) | 37.5 |
MTBF(H) | >50,000 |
Forwarding mode | Store-forward |
Flash (MB) | 16 |
DRAM (MB) | 128 |
MAC | 8K |
Buffer size(Mb) | 4.1 |
Jumbo frame | 9K |
Total SVI | 10 |
4K Active VLAN,
QinQ & Selective QinQ
GVRP, Private VLAN
Voice VLAN
802.1D (STP), 802.1W(RSTP)and 802.1S(MSTP)
BPDU guard, root guard and loopback guard
IGMP v1/2/3
IGMP Snooping
IGMP Fast Leave
IGMP Filter
MVR
Static route
RIP, OSPF
128 routing table
IPv4/v6 dual stack
DHCP Server/Client/Relay
CAR, HQoS, MAC/IP/TCP/UDP/VLAN/ COS/DSCP/TOS based
QoS, 802.1P/DSCP priority relabeling, SP,WRR, and “SP+WRR”,
Tail-Drop, WRED, flow monitoring and traffic shaping
Port isolation, Port security, and“IP+MAC+port” binding, MAC sticky DHCP Snooping and option 82, DAI& IP source guard,
IEEE 802.1x, Radius and BDTacacs+
L2/L3/L4 ACL flow identification and filtration Anti-attack from DDoS, TCP’s SYN Flood, Flood, etc.
Broadcast/multicast/unknown unicast storm-control
Md5, SHA-256, RSA-1024, AES256, etc.
Static/LACP link aggregation, Interface backup
EAPS and ERPS
ISSU
Console, Telnet,SSH v1/2,HTTP, HTTPS SNMP v1/v2/v3, RMON
TFTP, FTP, SFTP
NTP
ZTP(Zero Touch Provisioning)
SPAN, RSPAN
Power cord, rackmount kits, console cable, anti-slipping pad
Operating temperature/humidity: -10°C-50°C, 10%-90% non-condensing
Storage temperature/humidity: -20°C-70°C, 5%-90% non-condensing
CE, FCC,ROHS
