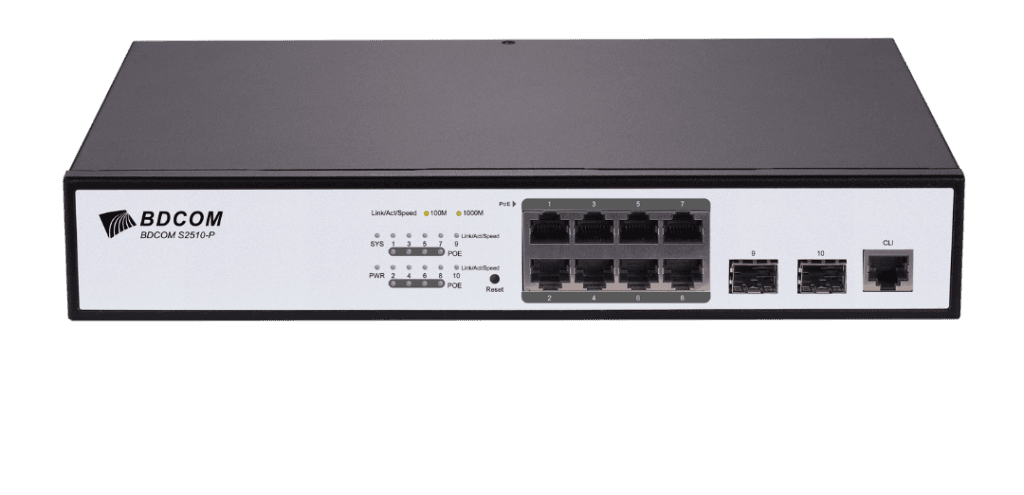

S2500-P Full-gigabit BDCOM PoE series is L3-lite Managed for SMB and enterprise access network with rich functionality and robust performance
Interface | 8 GE PoE ports, 2 100/1000M SFP ports |
Console | 1 RJ45 port, 1 RST button |
Backplane | 20 Gbps |
Chassis | |
Dimensions (WxDxH)(mm) | 280x180x44 |
Weight(KG)(empty) | 1.6 |
Package | |
Dimensions (WxDxH)(mm) | 346x289x92 |
Weight(KG) | 2.4 |
Power consumption | |
no-load | <7W |
full-load | 142.5W |
Power supply (AC: 100V-240V, 50Hz±10%) | 150W |
POE power budget | 130 W |
Total output BTU (1000BTU/H=293W) | 511.95 |
Fan number | / |
Noise@25°C(dBA) | 0 |
MTBF(H) | >50,000 |
Forwarding mode | Store-forward |
Flash (MB) | 16 |
DRAM (MB) | 128 |
MAC | 8K |
Buffer size(Mb) | 4.1 |
Jumbo frame | 9K |
Total SVI | 10 |
4K Active VLAN,
QinQ & Selective QinQ
GVRP, Private VLAN
Voice VLAN
802.1D (STP), 802.1W(RSTP)and 802.1S(MSTP)
BPDU guard, root guard and loopback guard
IGMP v1/2/3
IGMP Snooping
IGMP Fast Leave
IGMP Filter
MVR
Static route
RIP, OSPF
128 routing table
IPv4/v6 dual stack
DHCP Server/Client/Relay
CAR, HQoS, MAC/IP/TCP/UDP/VLAN/ COS/DSCP/TOS based
QoS, 802.1P/DSCP priority relabeling, SP,WRR, and “SP+WRR”,
Tail-Drop, WRED, flow monitoring and traffic shaping
Port isolation, Port security, and“IP+MAC+port” binding, MAC sticky DHCP Snooping and option 82, DAI& IP source guard,
IEEE 802.1x, Radius and BDTacacs+
L2/L3/L4 ACL flow identification and filtration Anti-attack from DDoS, TCP’s SYN Flood, Flood, etc.
Broadcast/multicast/unknown unicast storm-control
Md5, SHA-256, RSA-1024, AES256, etc.
Static/LACP link aggregation, Interface backup
EAPS and ERPS
ISSU
Console, Telnet,SSH v1/2,HTTP, HTTPS SNMP v1/v2/v3, RMON
TFTP, FTP, SFTP
NTP
ZTP(Zero Touch Provisioning)
SPAN, RSPAN
Power cord, rackmount kits, console cable, anti-slipping pad
Operating temperature/humidity: -10°C-50°C, 10%-90% non-condensing
Storage temperature/humidity: -20°C-70°C, 5%-90% non-condensing
CE, FCC,ROHS
