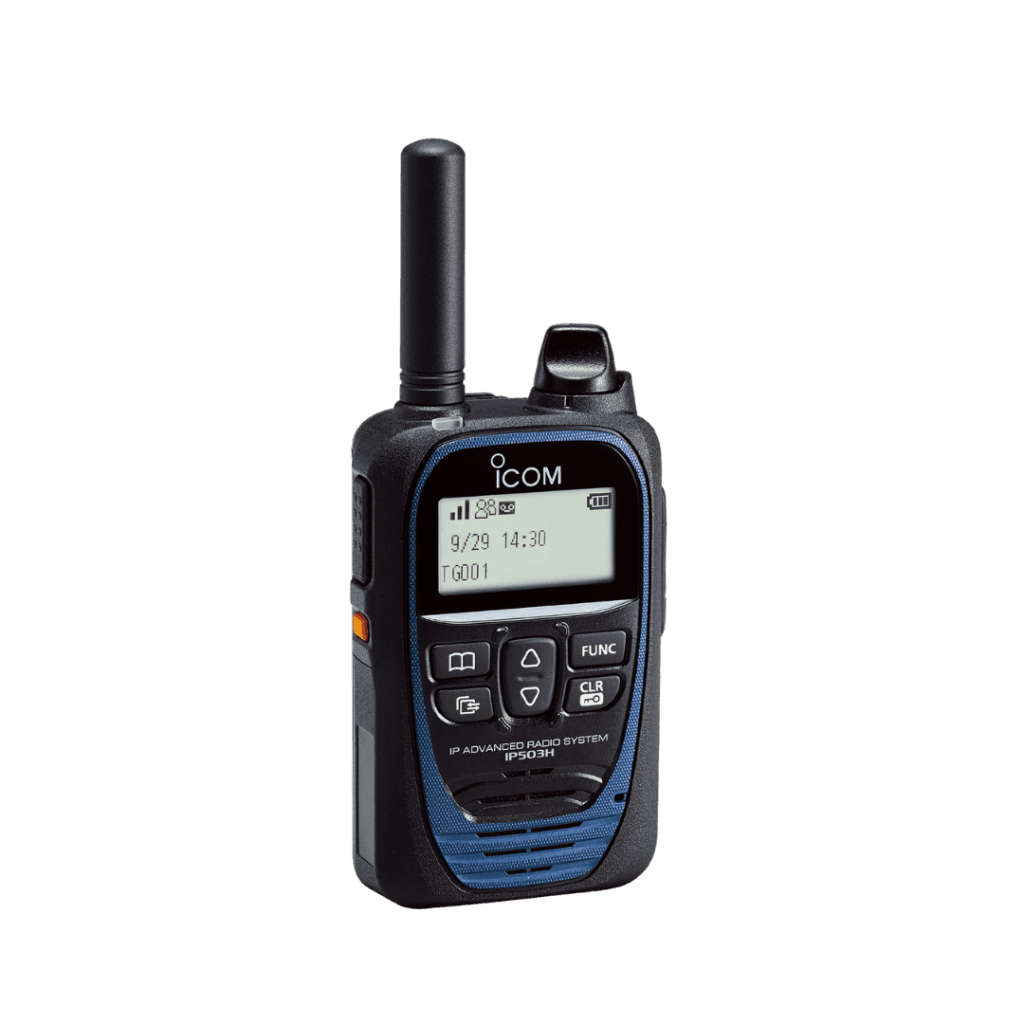

IP503H Lite

IP Transceiver

The Icom IP503H Lite is a compact and reliable LTE radio that provides nationwide communication without the need for traditional repeaters or base stations. It offers instant push-to-talk functionality, clear audio, and a durable design, making it ideal for businesses and professionals who need seamless communication. With its
long battery life and robust network coverage, the IP503H Lite ensures efficient and uninterrupted connectivity

Instant Wide Area Coverage Over an LTE/3G Network

It provides wide area communication using a cellular network.*

* Network coverage provided by a generally available data SIM card. Radio registration is required separately.

Simultaneous TalkListen Function for Full-Duplex Communication

The Simultaneous TalkListen function provides full-duplex one-to-many communication which users can talk and receive at the same time like a telephone style conversation.

Two different SIM cards can be installed. Switch between them as required.*

* Single standby only

Multiple User Communication

Multiple users in the call groups can initiate calls instantaneously.

Priority Interrupt Calling

You can break into an on-going call to transmit an important message.

Industry Leading Compact and Lightweight Design

IP67 Dust-Tight and Waterproof

900 mW Powerful and Clear Audio

Other Features

  • Individual, Group, Talkgroup, Multiplex Talkgroup and All calls*1
  • Emergency button, Lone Worker and Man Down functions
  • Vibration alert function notifies of incoming call
  • Up to 500 memory address book (including Group, Individual, Talkgroup and Telephone lists)
  • Voice message recording
  • Built-in Bluetooth®*2 capability and GPS

*1 Depending on system configuration *2 Version without Bluetooth also available. Ask your Dealer for details.

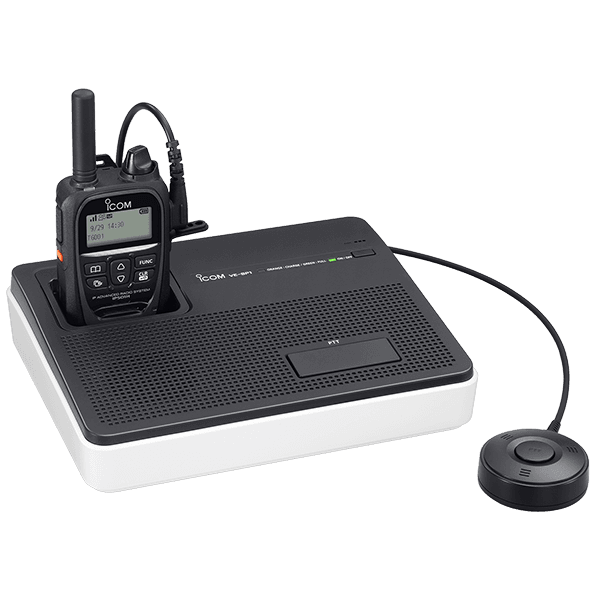

VE-SP1, Just Slot in the IP503H Lite and Start a Voice Conference

  • Portable operation with LR6 (AA)×8 cells
  • Built-in loudspeaker and high sensitivity microphone
  • Charges the radio while using with the AC adapter
  • Great as a teleworking type solution

* The transceiver is not supplied.

Note for IP503H users

The IP503H Lite (front panel is blue) uses a generally available data SIM card and is controlled by the IP4000C system.
The IP503H Lite is not compatible with IP503H radios (black front panel) which use a closed network provided by custom Icom SIM card.

Bluetooth® connection has not been tested for all Bluetooth® compatible devices with this product. This does not guarantee that all devices will work with this product.

NetworkEXP

LTE B1, B3, B7, B8, B20
W-CDMA B1, B8

AUSLTE B1, B3, B5, B7, B8, B28
W-CDMA B1, B5
Dimensions
(W × H × D; Projections not included)
59 × 95 × 32 mm; 2.3 × 3.7 × 1.3 in
(with BP-272)
Weight (approx.)240 g; 8.5 oz
(with BP-272 and antenna)
Voice Codec

G.726 (32 kbps)

AF output power
(8 Ω at 10% distortion)
Internal SPMore than 900 mW
External SPMore than 200 mW
Operating time*1
(TX : RX : standby = 5 : 5 : 90)
More than 17 hours (with BP-272)
Bluetooth*2Ver 2.1 +EDR
GPSBuilt-in
Operating temperature–10 °C to +60 °C; +14 °F to +140 °F
IP rating

IP67 (dust-tight and waterproof)
IP55/54 (dust and water jet / water resistance)

*1 Operating time may differ depending on operating environments. *2 Version without Bluetooth also available. Ask your Dealer for details.
All stated specifications are subject to change without notice or obligation.

You can scroll

Applicable U.S. Military Specifications

Standard
MIL 810 G
Method
Procedure
Low Pressure500.5I, II
High Temperature501.5I, II
Low Temperature502.5I, II
Temperature Shock503.5I-C
Solar Radiation505.5I
Rain Blowing/Drip506.5I, III
Dust Blowing510.5I
Immersion512.5I
Vibration514.6I
Shock516.6I, IV

Also meets equivalent MIL-STD-810 -C, -D, -E and -F.

You can scroll

Supplied Accessories

  • BP-272 Li-ion battery pack
  • MB-135 belt clip
  • Hand strap
  • Antenna
