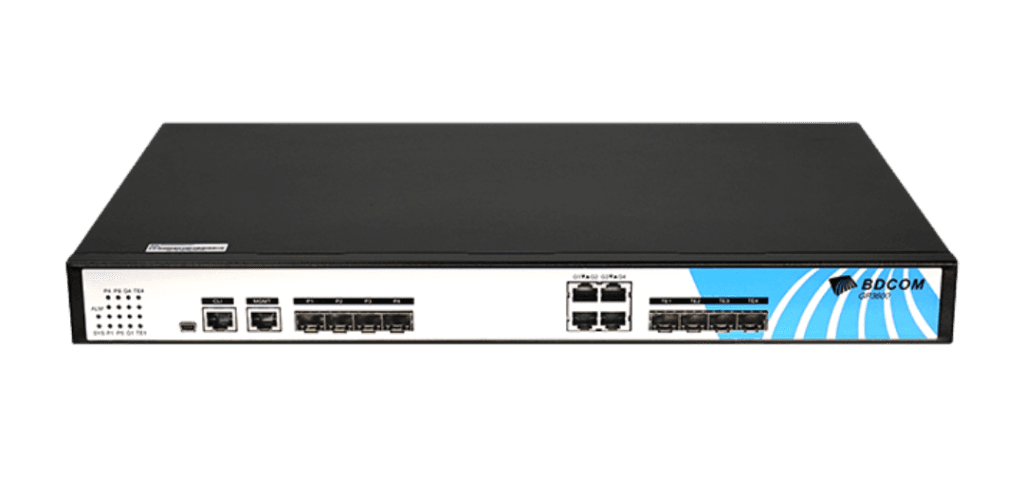

High-density Pizza-box GPON OLT

GP3600-04L

  • 4 PON ports
  • 4 GE TX ports
  • 4 10GE SFP+ ports
  • Built-in single AC100~240V
  • 19-inch rack-mounted installation
PON ports4
GE uplink4-Port Gigabit RJ45
10GE uplink4-Port 10G/GE SFP+
Supported GPON SFP moduleClass B+, C+, C++, C+++
RJ45 console1
Mini-USB console1
Out-of-Band1
DRAM (MB)512
Flash (MB)32
Backplane (Gbps)126
MAC table64K
Buffer size (MB)2
Jumbo frame (KB)2
IPv4 routing table32K
IPv6 routing table8K
Active VLAN4,094
SVI number400
Forwarding modeStore-and-forward
AC (V)100~240
Max. consumption (W)50
Total output BTU (note: 1000 BTU/hr = 293W)170.65
Fan number3
Air-flowLeft-right
Noise@25°C(dBA)< 45
Chassis
Dimensions(WxDxH mm)440.5 x 280 x 44.5
Weight (Kg)(empty)3.8
Package
Dimensions(WxDxH mm)576 x 448 x 94
Weight (Kg)4.8
Operating
Temperature0~45°C
Humidity (non-condensing )10%~85%
Storage
Temperature-40°C-80°C
Humidity (non-condensing )5%-95%
PartsPower cord, rackmount kits, console cable
MTBF (Hr)95,000
CertificationCE, FCC, ROHS

Standards

ITU-T G.984/G.988

IEEE 802.11D, Spanning Tree

IEEE 802.1Q, VLAN

IEEE 802.1w, RSTP

IEEE 802.3ad physical link static/dynamic aggregation (LACP), Ethernet - II

VLAN

Port/IP/Protocol/MAC-based VLAN

4K VLAN

QinQ and flexible QinQ

Multicast

L2 multicast

IGMP snooping

MLD snooping

Fast-leave

Layer 3 Function

Static route

RIPv1/v2

OSPF

BGP

QoS

Backpressure flow control (half duplex)

IEEE 802.3x flow control (full duplex)

IEEE 802.1p, CoS

WRR, SP and FIFO queue schedule

Limiting the uplink/downlink rate based on each ONU

DBA and SLA

Reliability

Unidirectional Link Detection (UDLD)

Abnormal luminescence ONU detection such as long luminescence

IEEE 802.3ad LACP

DHCP Function

Server/Relay/Client

DHCP snooping

DHCP option 66,67,82

DAI

IP source guard

Network Availability

STP/RSTP/MSTP

BPDU guard

EAPS

Network Security

L2~4 ACL

Flow-based ACL

MAC limitation

MAC sticky

Port isolation

Packet storm control

Transmission data encryption on the PON interface

Anti attack for DDOS, TCPSYN-flood, UDP-flood, ARPflood, etc.

Management

Various management modes such as CLI, Telnet, SSH, HTTP, SSL and SNMP

ISSU

FTP/TFTP

SPAN/RSPAN

NTP
