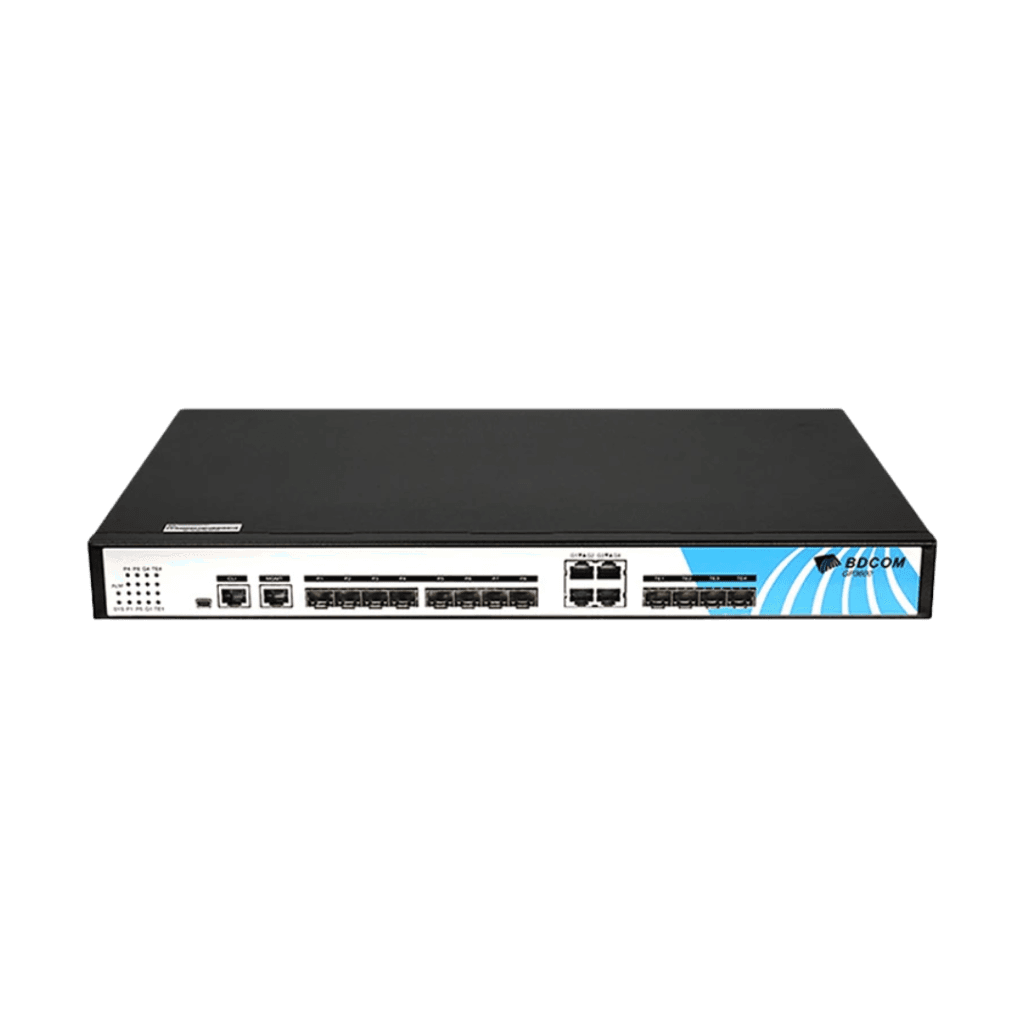

High-density Pizza-box GPON OLT

BDCOM GP3600-D Series complies with ITU-T G.984/G.988 and meets requirements about GPON OLT in
Network Access Technical Requirements. It fully supports CTC2.0, automatic discovery and cooperation with
ONUs of different manufacturers.

Supports 4/8 GPON ports
1U, occupies a small space
GP3600-D Series is equipped with 4 GE RJ45 ports and 4 10GE SFP+ ports
low power consumption and low operating cost
Dual 100-240V power supply

PON ports	4
GE uplink	4-Port Gigabit RJ45
10GE uplink	4-Port 10G/GE SFP+
Supported GPON SFP module	Class B+, C+, C++, C+++
RJ45 console	1
Mini-USB console	1
Out-of-Band	1
DRAM (MB)	512
Flash (MB)	32
Backplane (Gbps)	126
MAC table	64K
Buffer size (MB)	2
Jumbo frame (KB)	2
IPv4 routing table	32K
IPv6 routing table	8K
Active VLAN	4,094
SVI number	400
Forwarding mode	Store-and-forward
Max. consumption (W)	50
Total output BTU (note: 1000 BTU/hr = 293W)	170.65
Fan number	3
Air-flow	Left-right
Noise@25°C(dBA)	< 45
Chassis
Dimensions(WxDxH mm)	440.5 x 280 x 44.5
Weight (Kg)(empty)	3.8
Package
Dimensions(WxDxH mm)	576 x 448 x 94
Weight (Kg)	4.8
Operating
Temperature	0~45°C
Humidity (non-condensing )	10%~85%
Storage
Temperature	-40°C-80°C
Humidity (non-condensing )	5%-95%
Parts	Power cord, rackmount kits, console cable
MTBF (Hr)	95,000
Certification	CE, FCC, ROHS

Standards

ITU-T G.984/G.988

IEEE 802.11D, Spanning Tree

IEEE 802.1Q, VLAN

IEEE 802.1w, RSTP

IEEE 802.3ad physical link static/dynamic aggregation (LACP), Ethernet - II

VLAN

Port/IP/Protocol/MAC-based VLAN

4K VLAN

QinQ and flexible QinQ

Multicast

L2 multicast

IGMP snooping

MLD snooping

Fast-leave

Layer 3 Function

Static route

RIPv1/v2

OSPF

BGP

QoS

Backpressure flow control (half duplex)

IEEE 802.3x flow control (full duplex)

IEEE 802.1p, CoS

WRR, SP and FIFO queue schedule

Limiting the uplink/downlink rate based on each ONU

DBA and SLA

Reliability

Unidirectional Link Detection (UDLD)

Abnormal luminescence ONU detection such as long luminescence

IEEE 802.3ad LACP

DHCP Function

Server/Relay/Client

DHCP snooping

DHCP option 66,67,82

DAI

IP source guard

Network Availability

STP/RSTP/MSTP

BPDU guard

EAPS

Network Security

L2~4 ACL

Flow-based ACL

MAC limitation

MAC sticky

Port isolation

Packet storm control

Transmission data encryption on the PON interface

Anti attack for DDOS, TCPSYN-flood, UDP-flood, ARPflood, etc.

Management

Various management modes such as CLI, Telnet, SSH, HTTP, SSL and SNMP

ISSU

FTP/TFTP

SPAN/RSPAN

NTP
