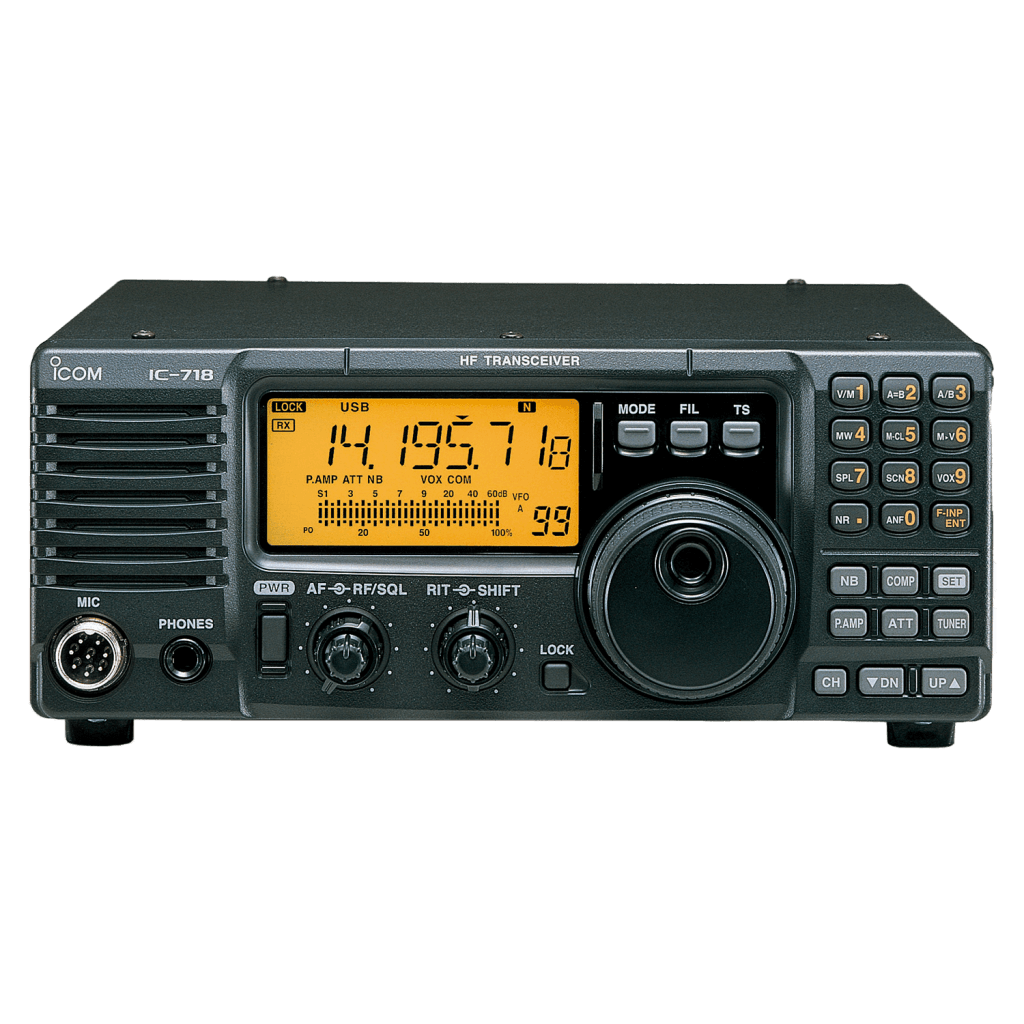

IC-718

HF ALL BAND TRANSCEIVER

The ICOM IC-718 is a compact and reliable HF transceiver designed for seamless communication in various conditions. With five selectable IF filter widths, superior noise reduction, and interference rejection, it ensures clear and uninterrupted transmissions. Its front-mounted loudspeaker, RF gain control, and optional automatic antenna tuner make it an excellent choice for both beginners and experienced operators seeking simple yet powerful performance.

Classic Simplicity, Compact, and Timeless Reliability

The IC-718 is a compact rig with ample features for HF communications. The HF bands enable you to communicate across long distances, even reaching the other side of the Earth. With its wide dynamic range, high S/N ratio, and full duty operation, you will make contacts easily. Experience the combination of RF and digital technology and you will realize the IC-718 is the most practical rig for your needs.

Front Mounted Speaker

The IC-718 has a speaker mounted on the front panel. With the speaker facing the operator, audio sounds can be clearly heard without impediment during operation.

Superior Basic Performance

The IC-718 has 0.03 ~ 29.999999 MHz* general coverage receive capability. A 4-element system is employed for the 1st receive mixer, providing superior receive IMD, especially from in-band near-by interfering signals. A well-designed double-conversion system to help minimize image and spurious responses for better signal fidelity, is also built-in. Its PLL circuit improves C/N ratio characteristics. PLL circuit has been adopted to improve C/N ratio characteristics. The combination of the 4-element system mixer and new PLL circuit allows superior basic performance as that of a commercial grade transceiver.
* Guaranteed range: 0.5 ~ 29.999999 MHz.

Noise Reduction Function*

The Noise Reduction pulls desired AF signals from noise. Outstanding S/N ratio is achieved, providing clean audio in SSB and AM.
*Depending on version.

Automatic Notch Out of the Filter*

The Notch Filter function automatically minimizes beat signals and heterodynes while preserving the received signal. Also, the notch frequency is automatically adjusted to follow interfering beat signals. For example, reducing interference from RTTY signals during SSB operation.
*Depending on version.

Interference Rejection — IF Shift

To reject interference, the IC-718 has an IF Shift function which shifts the center frequency of the IF passband electronically to reduce adjacent interference.

Microphone Compressor

The IC-718 has a low distortion microphone compressor. This feature compresses microphone audio input to increase average audio output level. The result is that talk power is increased. This function is effective for long distance communication, or when propagation conditions are poor.

RF Gain Control

The RF gain adjusts minimum response receiver gain and ignores signals weaker than the preset level — providing pleasant standby or scanning operation. It is combined with the squelch control.

Ample CW Features

An electronic keyer with a variable dot/dash ratio (2.8:1 to 4.5:1) control is built in. By simply connecting a paddle, easy CW operation can be made. The CW pitch and the key speed are also variable from 300 ~ 900 Hz, 6 ~ 60 wpm, respectively. Of course, full break-in capability is available with an adjustable break-in delay.

Easy VOX Operation

A VOX (voice operated transmission) is included with the IC-718. It provides hands-free operation by detecting audio signals from the microphone.

Five Selectable IF Filter Widths

6 kHz: Wide standard filter
2.4 kHz: Normal (Narrow for AM) standard filter

The FPGA (Field Programmable Gate Array) digital filtering system has been adopted. Two standard IF widths are available, and a third width can be selected from five to suit your style of operation and no need to purchase a filter.

Digital S/RF Meter

Built-in multi-functional digital S/RF meter indicates signal strength level while receiving, and either transmit output power, ALC level or VSWR ratio while transmitting.

Simple Operation

The IC-718 is equipped with a minimum number of buttons and knobs for superior feature selectability. Use the 10-key pad on the front panel to directly enter an operating frequency, or a memory channel number. The auto tuning steps function helps quick tuning activates when quickly turning the dial. And the band stacking register is very convenient when changing operating bands.

Optional Automatic Antenna Tuner

The optional automatic antenna tuner, AH-730 performs tuning operations at a high speed of about 2 to 3 seconds. When you change the operation band, band information is transferred to the tuner and automatically matches to the antenna.

Optional Automatic Tuning Antenna AH-740

The optional vehicle mount automatic tuning antenna provides relay-driven highspeed tuning from 2.5 to 30 MHz. Its IP55 dust-protection and water jet resistance ensures reliable operation in harsh weather conditions.

Other Features

• USB, LSB, CW, RTTY (FSK) and AM modes are built-in
• Level adjustable noise blanker
• RF attenuator and Pre-amplifier
• A variety of scanning function types
• At total of 101 memory channels
• A hand microphone is supplied

Rear Panel View

General

Frequency coverage
(Differs according to version)
Rx0.030 ~ 29.999 MHz*1
Tx1.800 ~ 1.999*2, 3.500 ~ 3.999*2, 7.000 ~ 7.300,
10.100 ~ 10.150, 14.000 ~ 14.350, 18.068 ~ 18.168,
21.000 ~ 21.450, 24.890 ~ 24.990, 28.000 ~ 29.700 MHz
ModeUSB, LSB, CW, RTTY (FSK), AM
Frequency resolution1 Hz
Frequency stabilityLess than ±200 Hz from 1 min. ~ 60 min. after power ON
Less than ±30 Hz/hour at +25˚C (+77˚F) 1 hour later after power ON
Less than ±350 Hz between 0˚C ~ +50˚C (+32˚F ~ +122˚F)
Maximum current drain20 A at 13.8 V DC
Power supply requirement13.8 V DC ±15 %
Antenna connectorSO-239 (50 Ω unbalanced)
Number of memory channels101 (99 regular, 2 scan edges)
Power consumptionRx1.3 A (Standby), 2.0 A (Maximum audio)
Tx20 A (at 100 W output power)
Operating temperature range–10˚C ~ +60˚C, 14˚F ~ 140˚F
Dimensions (W×H×D; projections are not included)240 × 95 × 239 mm, 9.4 × 3.7 × 9.4 in
Weight (Approximately)3.8 kg, 8.4 lb


*1 Guaranteed range 0.5 ~ 29.999 MHz.  *2 Varies according to version.

You can scroll

Transmitter

Output powerSSB, CW, RTTY2 ~ 100 W
AM2 ~ 35 W
Modulation systemSSBBalanced modulation
AMLow level modulation
Spurious emissionsLess than –50 dB below peak output power
Carrier suppressionMore than 40 dB
Unwanted sidebandMore than 50 dB
Microphone impedance8-pin connector (600 Ω)
You can scroll

Receiver

Receiver systemDouble-conversion superheterodyne
Sensitivity (at 10 dB S/N)
(For all versions)
SSB, CW, RTTY0.16 μV (1.8 ~ 29.999 MHz)
AM13 μV (0.5 ~ 1.799 MHz)
2 μV (1.8 ~ 29.999 MHz)
SelectivitySSB, CW, RTTYMore than 2.1 kHz / –6 dB
Less than 4.5 kHz / –60 dB
AMMore than 6.0 kHz/–6 dB
Less than 20 kHz / –40 dB
Squelch sensitivity (Threshold)Less than 5.6 μV (SSB)
Spurious and image rejectionMore than 70 dB (1.8 ~ 29.999 MHz)
Audio output powerMore than 2.0 W (at 10 % distortion with an 8 Ω load)
External speaker connector2-conductor 3.5 (d) mm (1/8) / 8 Ω

The LCD display may have cosmetic imperfections that appear as small or dark spots. This is not a malfunction or defect, but a normal characteristic of LCD displays.

All stated specifications are subject to change without notice or obligation.

You can scroll

Applicable U.S. Military Specifications

Standard

MIL 810 F
MethodProcedure
Temperature Shock

503.4

I

Rain Drip*

506.4

III

Vibration

514.5

I

Shock

516.5

I, IV

*Rain Drip test was performed on the front panel only. Also meets equivalent MIL-STD-810-C, -D and -E.

You can scroll

Supplied Accessories

  • Hand microphone
  • DC power cable
  • Spare fuses

(May differ depending on the version)
