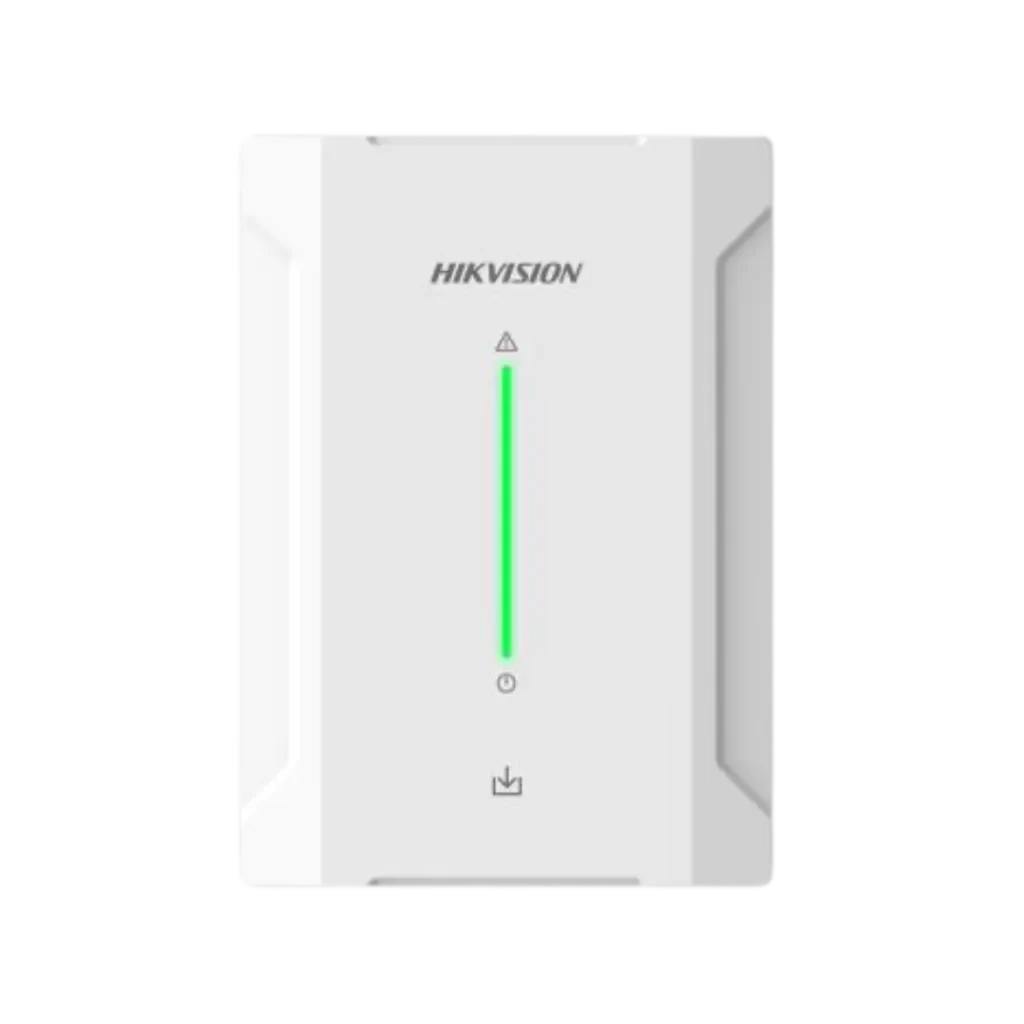

DS-PM1-I8O2-H

Wired Input Expander（Cascade）

This wired security module features 8 on-board zones with 3EOL support for alarm, tamper, and fault detection. It includes a power output for wired detectors and dual Speed-X bus support for seamless integration and expansion, ensuring reliable perimeter protection.



  • 8 on-board wired zones
  • Support 3EOL connection(Alarm: 1KΩ; Tamper: 1KΩ; Fault: 2.2KΩ)
  • Support zone alarm, tamper, masking, fault, short detection
  • 1 power output for wired detectors
  • 2 Speed-X bus, supporting wired input expander cascade mode

Specification

  • Hardware features
  • Alarm input8
  • IO Output2 (connect to relay module)
  • Bus2×Speed-X bus, 1 input for control panel connection and 1 output for expander cascading
  • Tamper-ProofSupport (front and rear)
  • Electrical characteristics
  • Power supply11 to 24 VDC
  • Typical voltage12 VDC
  • Power consumption

    Maximum current: 119 mA@12 VDC

    Quiescent current: 45 mA@12 VDC

  • Output Voltage9 to 12 VDC
  • Output CurrentMaximum 500 mA
  • Display
  • LED IndicatorLED indicators: 1 for power, 1 for fault
  • General
  • Operation temperature -10°C to 40°C
  • Operation humidity10% to 90%
  • Shell materialPlastic
  • Dimension(WxHxD)110 mm × 155 mm × 32 mm
  • Weight252.5 g
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Hardware features
Alarm input
8
IO Output
2 (connect to relay module)
Bus
2×Speed-X bus, 1 input for control panel connection and 1 output for expander cascading
Tamper-Proof
Support (front and rear)
Electrical characteristics
Power supply
11 to 24 VDC
Typical voltage
12 VDC
Power consumption
Maximum current: 119 mA@12 VDC Quiescent current: 45 mA@12 VDC
Output Voltage
9 to 12 VDC
Output Current
Maximum 500 mA
Display
LED Indicator
LED indicators: 1 for power, 1 for fault
General
Operation temperature
-10°C to 40°C
Operation humidity
10% to 90%
Shell material
Plastic
Dimension(WxHxD)
110 mm × 155 mm × 32 mm
Weight
252.5 g
