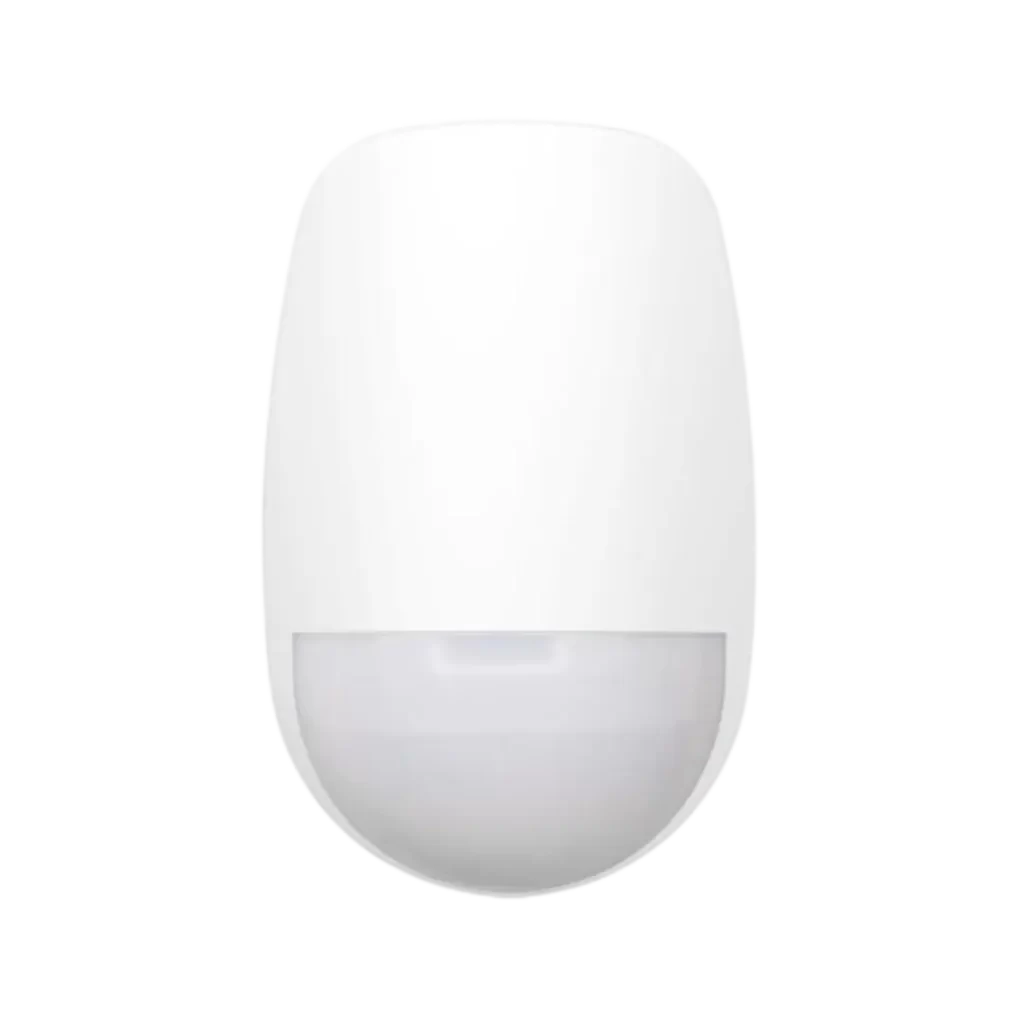

DS-PDD12P-EG2

Wired Dual-tech Detector

This motion detector offers a 12m detection range with an 85.9° field of view and pet immunity up to 30kg, reducing false alarms. It features digital temperature compensation, 52-zone 3D optics with creep-zone protection, and sealed optics to prevent insect interference. With 24GHz microwave technology, IFT false alarm prevention, and wide voltage adaptation (9-16V) with polarity protection, it ensures reliable security in any environment.



  • Detection Range: 12m / 85.9°
  • Up to 30kg pey immunity
  • Automatic sensitivity
  • Digital temperature compensation
  • 52 zones of 3D optics including creep-zone protection, full coverage without dead angle
  • selectable EOL resistors for alarm and tamper-proof wiring
  • Sealed optics preventing insect interference
  • 24Ghz microwave
  • 9 to 16 V wide voltage adaptation with polarity reverse connection protection
  • Wall/Ceiling-mounting brackets available (sold separately)
  • IFT technology prevents false alarms

Specification

  • Detection Performance
  • Detection MethodPassive Infrared;Microwave
  • Detection Range12m
  • Detection Angle85.9°
  • Detection Zones52
  • Detectable Speed0.3～2m/s
  • SensitivityAuto;Pet
  • Pet Immunity30Kg
  • White Light Filter6500lux
  • Microwave Frequency24GHz(24.15～24.25GHz)
  • Digital Temperature CompensationSupport
  • Creep Zone ProtectionSupport
  • Feature
  • Digital ProcessingSupport
  • Sealed OpticsSupport
  • Tamper ProtectionFront
  • Interface
  • Alarm OutputNormally Closed
  • LED IndicatorGreen(PIR), Orange(Microwave), Blue(Alarm)
  • Transmission
  • Transmission MethodWired
  • Electrical Characteristics
  • Power Supply9 to 16 VDC
  • Typical Voltage12 VDC
  • Power Consumption

    Maximum current：17mA@12VDC

    Quiescent current：17mA@12VDC

  • General
  • Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)65.7 mm (2.59 ") × 103.8 mm (4.09 ") × 45.5 mm (1. 79 ")
  • Weight99g (3.5 oz)
  • Mounting Height1.8 m to 2.4 m
  • Mounting MethodWall
  • Application ScenarioIndoor
  • BracketOptional wall & ceiling accessory
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Detection Performance
Detection Method
Passive Infrared;Microwave
Detection Range
12m
Detection Angle
85.9°
Detection Zones
52
Detectable Speed
0.3～2m/s
Sensitivity
Auto;Pet
Pet Immunity
30Kg
White Light Filter
6500lux
Microwave Frequency
24GHz(24.15～24.25GHz)
Digital Temperature Compensation
Support
Creep Zone Protection
Support
Feature
Digital Processing
Support
Sealed Optics
Support
Tamper Protection
Front
Interface
Alarm Output
Normally Closed
LED Indicator
Green(PIR), Orange(Microwave), Blue(Alarm)
Transmission
Transmission Method
Wired
Electrical Characteristics
Power Supply
9 to 16 VDC
Typical Voltage
12 VDC
Power Consumption
Maximum current：17mA@12VDC Quiescent current：17mA@12VDC
General
Operation Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
65.7 mm (2.59 ") × 103.8 mm (4.09 ") × 45.5 mm (1. 79 ")
Weight
99g (3.5 oz)
Mounting Height
1.8 m to 2.4 m
Mounting Method
Wall
Application Scenario
Indoor
Bracket
Optional wall & ceiling accessory
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Technical Documents
Data Sheet Download
User Manual Download
