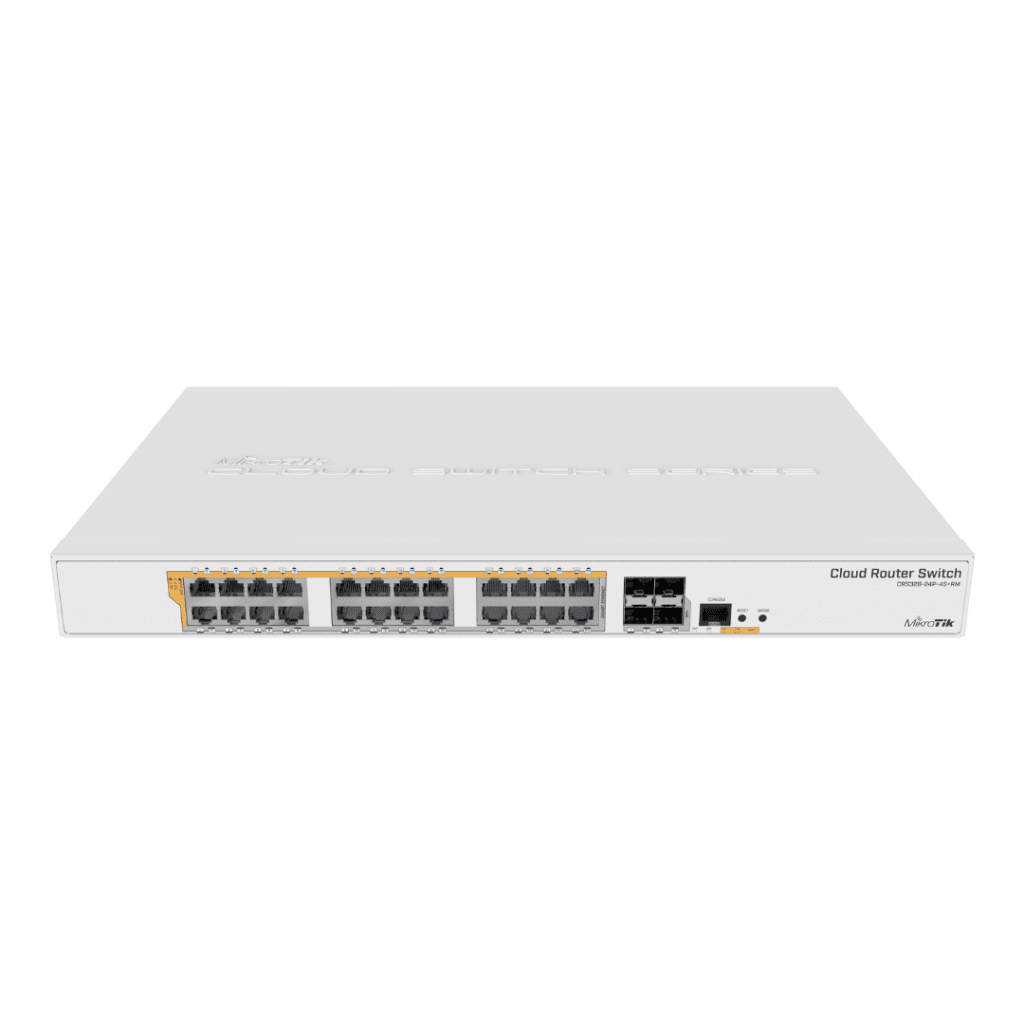

CRS328-24P-4S+RM

ROSE Data server (RDS)

24 port Gigabit Ethernet router/switch with four 10Gbps SFP+ ports in 1U rackmount case, Dual Boot and PoE output, 500W



The CRS328-24P-4S+RM is a powerful 28-port switch with 24 Gigabit Ethernet ports supporting Passive PoE, low voltage PoE, and 802.3af/at with auto-sensing, plus 4 SFP+ ports for 10G high-speed connectivity. With a built-in 500 W power supply, it can deliver up to 30 W per port and guarantees 450 W total PoE output—perfect for powering multiple devices. Dual boot support for RouterOS and SwOS gives you the flexibility to choose between advanced routing features or simplified switch management.

Specifications

Details
Product codeCRS328-24P-4S+RM
ArchitectureARM 32bit
CPU98DX3236
CPU core count1
CPU nominal frequency800 MHz
Switch chip model98DX3236
Dimensions443 x 300 x 44 mm
RouterOS license5
Operating System RouterOS / SwitchOS
Size of RAM512 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-20°C to 60°C
Suggested price$489.00

Powering

Details
Number of AC inputs1
AC input range100-240
Number of PSU slots2
Max power consumption494 W
Max power consumption without attachments44 W
Cooling type2 fans

PoE-out

Details
PoE-out portsEther1-Ether24
PoE out802.3af/at
Max out per port output (input 18-30 V)1000 mA
Max out per port output (input 30-57 V)450 mA
Max total out (A)20 A

Ethernet

Details
10/100/1000 Ethernet ports24

Fiber

Details
SFP+ ports4

Peripherals

Details
Serial console portRJ45

Other

Details
CPU temperature monitorYes
Current MonitorYes
PCB temperature monitorYes
Voltage MonitorYes
Mode buttonYes

Certification & Approvals

Details
CertificationCE, EAC, ROHS
IPIP00

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
RouterOS current releaseDownload
DimensionsOpen
Block DiagramOpen
SFP compatibility listOpen
RouterOS software manualOpen
SwOS software manualOpen
Declaration of conformityOpen (CE)
