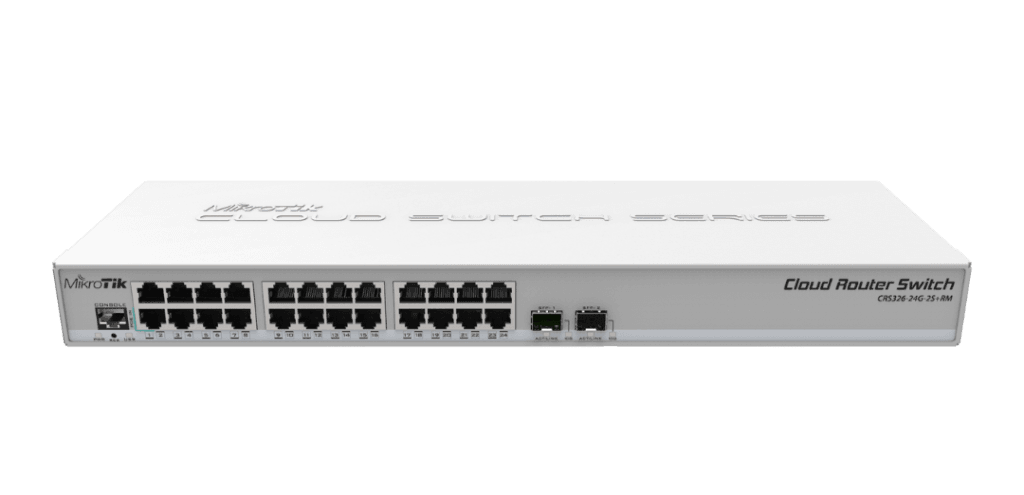

CRS326-24G-2S+RM

The SwOS/RouterOS-powered 24-port Gigabit Ethernet switch offers high-speed connectivity with two SFP+ ports and advanced switching features. Its dual-boot functionality lets you choose between RouterOS for Layer 3 capabilities or SwOS for a streamlined switching experience. With VLAN support, MAC filtering, bandwidth control, and SFP compatibility up to 10Gbps, it’s a versatile solution for managing network traffic efficiently.

Specifications

Details
Product codeCRS326-24G-2S+RM
ArchitectureARM 32bit
CPU98DX3236
CPU core count1
CPU nominal frequency800 MHz
Switch chip model98DX3236
Dimensions443 x 144 x 44 mm
RouterOS license5
Operating System RouterOS / SwitchOS
Size of RAM512 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 60°C
Suggested price$209.00

Powering

Details
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage10-30 V
Max power consumption24 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage10-30 V

Ethernet

Details
10/100/1000 Ethernet ports24

Fiber

Details
SFP+ ports2

Peripherals

Details
Serial console portRJ45

Certification & Approvals

Details
CertificationCE, EAC, ROHS
IPIP20

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
RouterOS current releaseDownload
RouterBoot firmware Download
DimensionsOpen
Block DiagramOpen
SFP compatibility listOpen
RouterOS software manualOpen
SwOS software manualOpen
Declaration of conformityOpen (CE)

Download: Full CE declaration (PDF)

Information about CRS326-24G-2S+RM

[BG] BulgarianС настоящето, "Mikrotikls SIA", декларира, че CRS326-24G-2S+RM е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/30/EC.
[CZ] Czech"Mikrotikls SIA" tímto prohlašuje, že CRS326-24G-2S+RM splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 2014/30/ES.
[DK] DanishUndertegnede "Mikrotikls SIA" erklærer herved, at følgende udstyr CRS326-24G-2S+RM overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/30/EF.
[DE] GermanHiermit erklärt "Mikrotikls SIA", dass sich das Gerät CRS326-24G-2S+RM in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2014/30/EG befindet.
[EE] EstonianKäesolevaga kinnitab "Mikrotikls SIA" seadme CRS326-24G-2S+RM vastavust direktiivi 2014/30/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
[GR] GreekΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ "Mikrotikls SIA" ΔΗΛΩΝΕΙ ΟΤΙ CRS326-24G-2S+RM ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/30/ΕΚ
[EN] EnglishHereby, "Mikrotikls SIA", declares that this CRS326-24G-2S+RM is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EC.
[ES] SpanishPor la presente, "Mikrotikls SIA", declara que este CRS326-24G-2S+RM cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 2014/30/EC.
[IT] ItalianCon la presente "Mikrotikls SIA" dichiara che questo CRS326-24G-2S+RM è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2014/30/CE.
[LV] LatvianAr šo "Mikrotikls SIA" deklarē, ka CRS326-24G-2S+RM atbilst Direktīvas 2014/30/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
[LT] LithuanianŠiuo "Mikrotikls SIA" deklaruoja, kad šis CRS326-24G-2S+RM atitinka esminius reikalavimus ir kitas 2014/30/EB Direktyvos nuostatas
[HU] HungarianA "Mikrotikls SIA" ezzennel kijelenti, hogy a CRS326-24G-2S+RM típusú beren-dezés teljesíti az alapvető követelményeket és más 2014/30/EK irányelvben meghatározott vonatkozó rendelkezéseket.
[NL] DutchHierbij verklaart "Mikrotikls SIA" dat het toestel l CRS326-24G-2S+RM in overeenstemming is met de essentiële eisen en de andere relevante bepalin-gen van richtlijn 2014/30/EG.
[PL] PolishNiniejszym "Mikrotikls SIA" deklaruje że CRS326-24G-2S+RM jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy 2014/30/EC.
[PT] PortugueseEu, "Mikrotikls SIA", declaro que o CRS326-24G-2S+RM cumpre os requisitos essenciais e outras provisões relevantes da Directiva 2014/30/EC.
[RO] RomanianPrin prezenta, "Mikrotikls SIA", declară că aparatul CRS326-24G-2S+RM este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 2014/30/CE.
[SK] Slovak"Mikrotikls SIA" týmto vyhlasuje, že CRS326-24G-2S+RM spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 2014/30/ES.
[SI] Slovenian"Mikrotikls SIA" izjavlja, da je ta CRS326-24G-2S+RM v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 2014/30/ES.
[FI] Finish"Mikrotikls SIA" vakuuttaa täten että CRS326-24G-2S+RM tyyppinen laite on direktiivin 2014/30/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
[SE] SwedishDenna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta bestämmelser i direktiv 2014/30/EC.
[NO] Norwegian"Mikrotikls SIA", Erklærer herved at CRS326-24G-2S+RM er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/30/EF.
×
