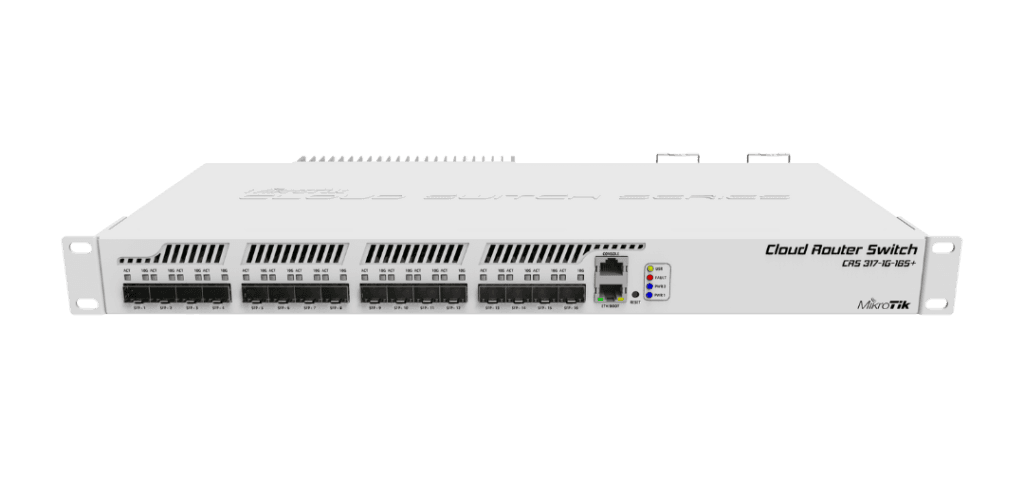

CRS317-1G-16S+RM

The CRS317-1G-16S+RM is a high-performance, rack-mountable switch designed for demanding networks, featuring 16 SFP+ ports for blazing-fast 10GbE connectivity and a dedicated 1GbE management port. Powered by a next-gen switching chip, it delivers wire-speed performance with advanced features like hardware-based Spanning Tree Protocol and Link Aggregation (LACP) for enhanced reliability. With dual redundant power supplies and a passive cooling design complemented by automatic fans, it ensures seamless operation even in high-temperature environments

Specifications

Details
Product codeCRS317-1G-16S+RM
ArchitectureARM 32bit
CPU98DX8216
CPU core count2
CPU nominal frequency800 MHz
Switch chip model98DX8216
Dimensions443 x 224 x 44 mm
RouterOS license6
Operating System RouterOS / SwitchOS
Size of RAM1 GB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-20°C to 60°C
Suggested price$499.00

Powering

Details
Number of AC inputs2
AC input range100-240
Number of PSU slots2
Frequency (Hz)50-60
Max power consumption44 W
Cooling type2 fans

Ethernet

Details
10/100/1000 Ethernet ports1

Fiber

Details
SFP+ ports16

Peripherals

Details
Serial console portRJ45

Other

Details
CPU temperature monitorYes
BeeperYes

Certification & Approvals

Details
CertificationCE, EAC, ROHS

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
RouterOS current releaseDownload
RouterBoot firmware Download
Block DiagramOpen
SFP compatibility listOpen
RouterOS software manualOpen
SwOS software manualOpen
Declaration of conformityOpen (CE)

Download: Full CE declaration (PDF)

Information about CRS317-1G-16S+RM
