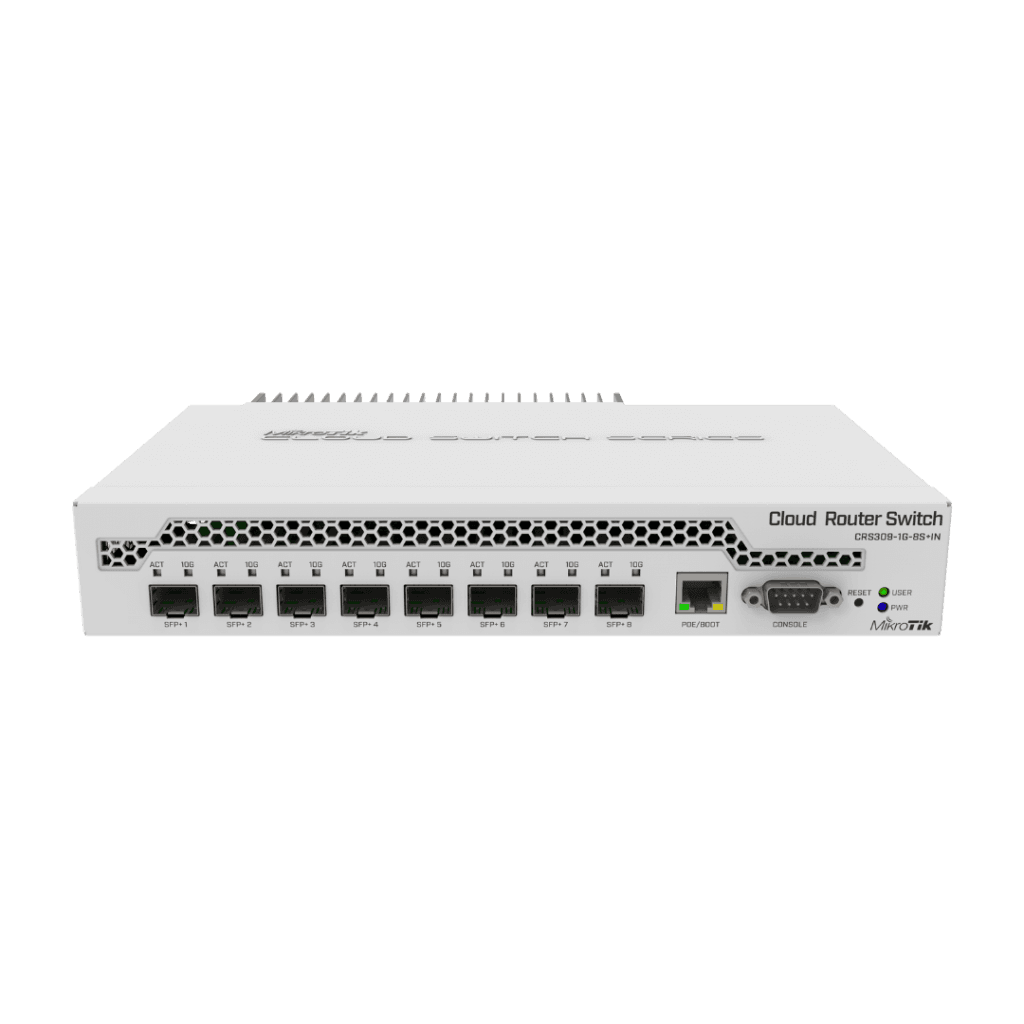

CRS309-1G-8S+IN

ROSE Data server (RDS)

Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports



The CRS309-1G-8S+ is a compact yet high-performance switch featuring eight 10G SFP+ ports, delivering up to 162 Gbps switching capacity and 81 Gbps non-blocking throughput. It includes a dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE input, and dual boot support for RouterOS or SwOS. Ideal for high-speed, space-conscious networking setups.

Specifications

Details
Product codeCRS309-1G-8S+IN
ArchitectureARM 32bit
CPU98DX8208
CPU core count2
CPU nominal frequency800 MHz
Switch chip model98DX8208
Dimensions272 x 191 x 44 mm
RouterOS license5
Operating System RouterOS / SwitchOS
Size of RAM512 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 70°C
Suggested price$269.00

Powering

Details
Number of DC inputs2 (PoE-IN, DC jack)
DC jack input Voltage12-57 V
Max power consumption23 W
Max power consumption without attachments17 W
Cooling typePassive
PoE in802.3af/at
PoE in input Voltage18-57 V

Ethernet

Details
10/100/1000 Ethernet ports1

Fiber

Details
SFP+ ports8

Peripherals

Details
Serial console portRS232

Other

Details
CPU temperature monitorYes
BeeperYes

Certification & Approvals

Details
CertificationCE, EAC, ROHS
IPIP20

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
RouterOS current releaseDownload
Block DiagramOpen
SFP compatibility listOpen
RouterOS software manualOpen
SwOS software manualOpen
Declaration of conformityOpen (CE)

Download: Full CE declaration (PDF)
