Cloud Gateway Ultra

UCG-Ultra

Compact Cloud Gateway with 30+ UniFi device / 300+ client support, 1 Gbps IPS routing, and multi-WAN load balancing.

  • Runs UniFi Network for full-stack network management
  • Manages 30+ UniFi Network devices and 300+ clients
  • 1 Gbps routing with IDS/IPS
  • Multi-WAN load balancin
  • 0.96″ LCM status display
  • USB-C powered (adapter included)
Priority Phone Support from World-Class UniFi Professionals
Overview

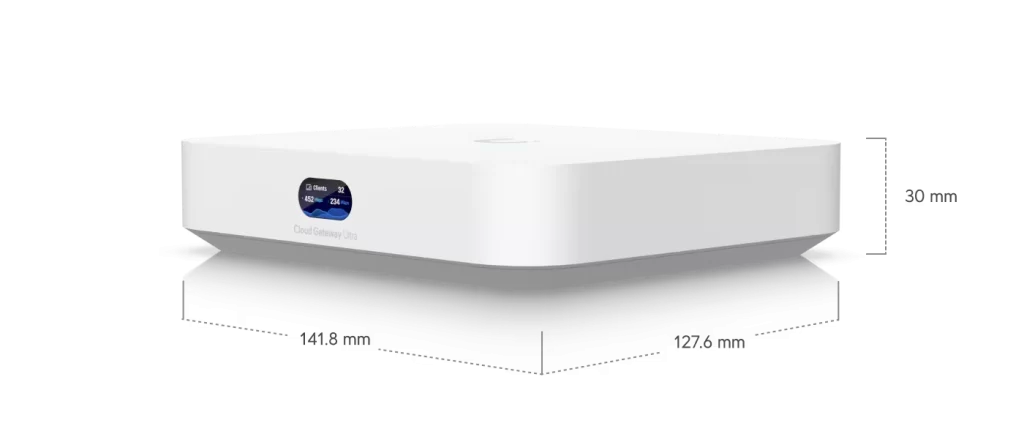

Dimensions
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
UniFi Application Suite
Network
Yes
Managed UniFi Devices
30+
Simultaneous Users Connected
300+
Default WAN Ports
(1) 2.5 GbE RJ45
LAN Ports
(4) GbE RJ45
IDS/IPS Throughput
1 Gbps
Form Factor
Compact desktop
Security
Stateful Firewall
Yes
Application-Aware Layer 7 Firewall
Yes
DPI & Traffic Identification
Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes
Content Filtering
Yes
Intrusion Prevention (IPS/IDS)
Yes
Ad Blocking
Yes
IDS/IPS Signatures
55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
Yes
VPN & SD-WAN
License-Free SD-WAN
Yes
Site-to-Site VPN
Site Magic
Yes
IPsec
Yes
OpenVPN
Yes
VPN Server
Identity Endpoint One-Click VPN
Yes
Teleport Zero-Configuration VPN
Yes
WireGuard
Yes
OpenVPN
Yes
L2TP
Yes
VPN Client
OpenVPN
Yes
WireGuard
Yes
Networking
Multi-WAN Load Balancing
Yes
Dynamic Routing
OSPF
Yes
Advanced QoS
Yes
Multicast DNS (mDNS)
Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes
Integrated RADIUS Server
Yes
RADIUS over TLS (RadSec)
Yes
Additional Internet Failover with UniFi LTE Backup
Yes
Internet Quality and Outage Reporting
Yes
MAC Address Table Size
2,000
Policy-based WAN and VPN Routing
Yes
Customizable DHCP Server
Yes
IPv6 ISP Support
Yes
IGMP Proxy
Yes
Hardware
Max. Power Consumption
6.2W
Power Method
USB type C (5V DC/3A)
Power Supply
USB type C (5V DC/3A) (Adapter included)
Supported Voltage Range
100—240V AC
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory
3 GB
On-board Storage
16 GB
Weight
520 g (1.1 lb)
Enclosure Material
Polycarbonate
LCM Display
0.96" status display
Management
Ethernet Bluetooth
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
LEDs
Ethernet
Yes
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Button
(1) Factory-reset
Software
Application Requirements
Mobile App
UniFi iOS™: Version 10.12.0 and later UniFi Android™: Version 10.11.2 and later
