CCR2116-12G-4S+

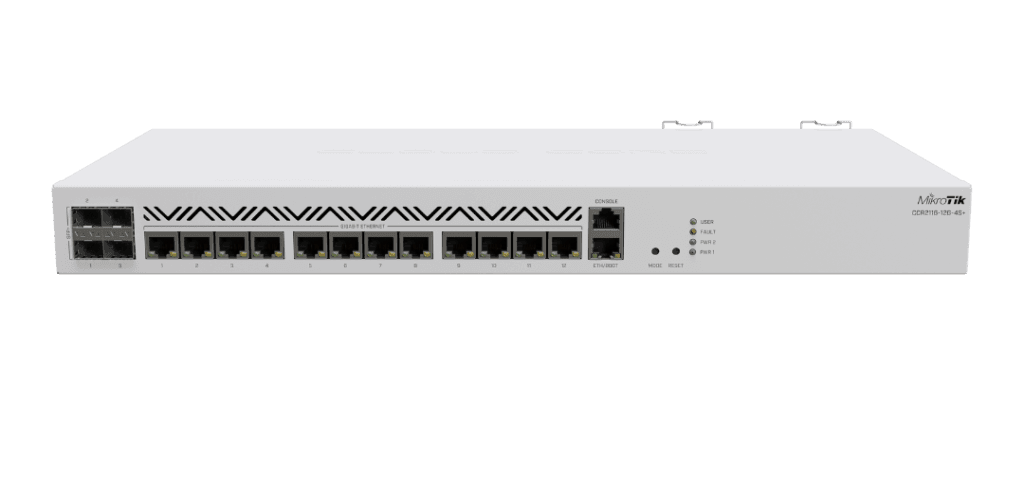

The CCR2116-12G-4S+ is a high-performance 10G router designed for ISPs and enterprise networks handling heavy workloads. Powered by a 16-core 2GHz Amazon Annapurna Labs Alpine CPU, it delivers exceptional single-core performance, Layer 3 Hardware Offloading, and switch-like throughput with four 10G SFP+ and 12 Gigabit Ethernet ports. With a dual-redundant power supply and advanced routing capabilities, it’s the ultimate solution for dynamic networking demands.

Specifications

Details
Product codeCCR2116-12G-4S+
ArchitectureARM 64bit
CPUAL73400
CPU core count16
CPU nominal frequency2000 MHz
Switch chip model98DX3255
Dimensions443 x 199 x 44 mm
RouterOS license6
Operating System RouterOS v7
Size of RAM16 GB
Storage size128 MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-20°C to 60°C
IPsec hardware accelerationYes
Suggested price$995.00

Powering

Details
Number of AC inputs2
AC input range100-240
Number of PSU slots2
Frequency (Hz)47-63
Max power consumption83 W
Max power consumption without attachments60 W
Cooling type4 fans

Ethernet

Details
10/100/1000 Ethernet ports13

Fiber

Details
SFP+ ports4

Peripherals

Details
Serial console portRJ45
Number of M.2 slots1

Other

Details
CPU temperature monitorYes
PCB temperature monitorYes
Voltage MonitorYes
Mode buttonYes

Certification & Approvals

Details
CertificationCE, EAC, ROHS

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
RouterOS current releaseDownload
Block DiagramOpen
SFP compatibility listOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)

Download: Full CE declaration (PDF)
