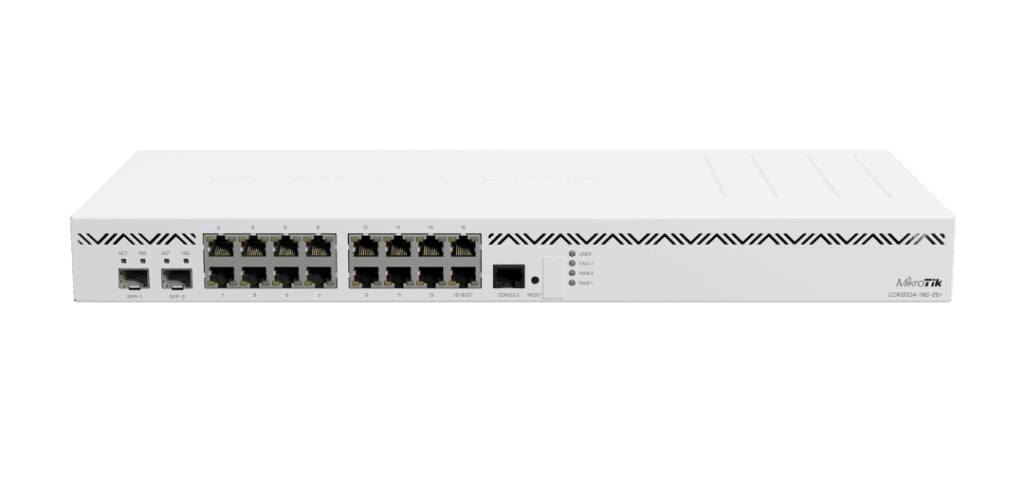

CCR2004-16G-2S+

The CCR2004 is a powerful yet affordable router designed for small to medium-sized businesses seeking high performance and efficiency. Featuring a 4-core Annapurna Labs Alpine v2 CPU, 16 Gigabit Ethernet ports, and 2 high-speed 10G SFP+ cages, it delivers exceptional single-core processing and seamless connectivity. With dual redundant power supplies and active cooling, it ensures reliability while maximizing performance per watt for cost-effective networking.

Specifications

Details
Product codeCCR2004-16G-2S+
ArchitectureARM 64bit
CPUAL32400
CPU core count4
CPU nominal frequency1700 MHz
Switch chip model88E6191X
Dimensions443 x 210 x 44 mm
RouterOS license6
Operating System RouterOS v7
Size of RAM4 GB
Storage size128 MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-20°C to 60°C
IPsec hardware accelerationYes
Suggested price$465.00

Powering

Details
Number of AC inputs2
AC input range100-240
Number of PSU slots2
Frequency (Hz)50-60
Max power consumption48 W
Max power consumption without attachments35 W
Cooling type2 fans

Ethernet

Details
10/100/1000 Ethernet ports16

Fiber

Details
SFP+ ports2

Peripherals

Details
Serial console portRJ45

Other

Details
CPU temperature monitorYes
PCB temperature monitorYes
Voltage MonitorYes

Certification & Approvals

Details
CertificationCE, EAC, ROHS
IPIP20

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
RouterOS current releaseDownload
Block DiagramOpen
SFP compatibility listOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)

Download: Full CE declaration (PDF)

Information about CCR2004-16G-2S+

[BG] BulgarianС настоящето, "Mikrotikls SIA", декларира, че CCR2004-16G-2S+ е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/30/EC.
[CZ] Czech"Mikrotikls SIA" tímto prohlašuje, že CCR2004-16G-2S+ splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 2014/30/ES.
[DK] DanishUndertegnede "Mikrotikls SIA" erklærer herved, at følgende udstyr CCR2004-16G-2S+ overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/30/EF.
[DE] GermanHiermit erklärt "Mikrotikls SIA", dass sich das Gerät CCR2004-16G-2S+ in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2014/30/EG befindet.
[EE] EstonianKäesolevaga kinnitab "Mikrotikls SIA" seadme CCR2004-16G-2S+ vastavust direktiivi 2014/30/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
[GR] GreekΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ "Mikrotikls SIA" ΔΗΛΩΝΕΙ ΟΤΙ CCR2004-16G-2S+ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/30/ΕΚ
[EN] EnglishHereby, "Mikrotikls SIA", declares that this CCR2004-16G-2S+ is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EC.
[ES] SpanishPor la presente, "Mikrotikls SIA", declara que este CCR2004-16G-2S+ cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 2014/30/EC.
[IT] ItalianCon la presente "Mikrotikls SIA" dichiara che questo CCR2004-16G-2S+ è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2014/30/CE.
[LV] LatvianAr šo "Mikrotikls SIA" deklarē, ka CCR2004-16G-2S+ atbilst Direktīvas 2014/30/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
[LT] LithuanianŠiuo "Mikrotikls SIA" deklaruoja, kad šis CCR2004-16G-2S+ atitinka esminius reikalavimus ir kitas 2014/30/EB Direktyvos nuostatas
[HU] HungarianA "Mikrotikls SIA" ezzennel kijelenti, hogy a CCR2004-16G-2S+ típusú beren-dezés teljesíti az alapvető követelményeket és más 2014/30/EK irányelvben meghatározott vonatkozó rendelkezéseket.
[NL] DutchHierbij verklaart "Mikrotikls SIA" dat het toestel l CCR2004-16G-2S+ in overeenstemming is met de essentiële eisen en de andere relevante bepalin-gen van richtlijn 2014/30/EG.
[PL] PolishNiniejszym "Mikrotikls SIA" deklaruje że CCR2004-16G-2S+ jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy 2014/30/EC.
[PT] PortugueseEu, "Mikrotikls SIA", declaro que o CCR2004-16G-2S+ cumpre os requisitos essenciais e outras provisões relevantes da Directiva 2014/30/EC.
[RO] RomanianPrin prezenta, "Mikrotikls SIA", declară că aparatul CCR2004-16G-2S+ este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 2014/30/CE.
[SK] Slovak"Mikrotikls SIA" týmto vyhlasuje, že CCR2004-16G-2S+ spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 2014/30/ES.
[SI] Slovenian"Mikrotikls SIA" izjavlja, da je ta CCR2004-16G-2S+ v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 2014/30/ES.
[FI] Finish"Mikrotikls SIA" vakuuttaa täten että CCR2004-16G-2S+ tyyppinen laite on direktiivin 2014/30/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
[SE] SwedishDenna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta bestämmelser i direktiv 2014/30/EC.
[NO] Norwegian"Mikrotikls SIA", Erklærer herved at CCR2004-16G-2S+ er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/30/EF.
×
