C53UiG+5HPaxD2HPaxD

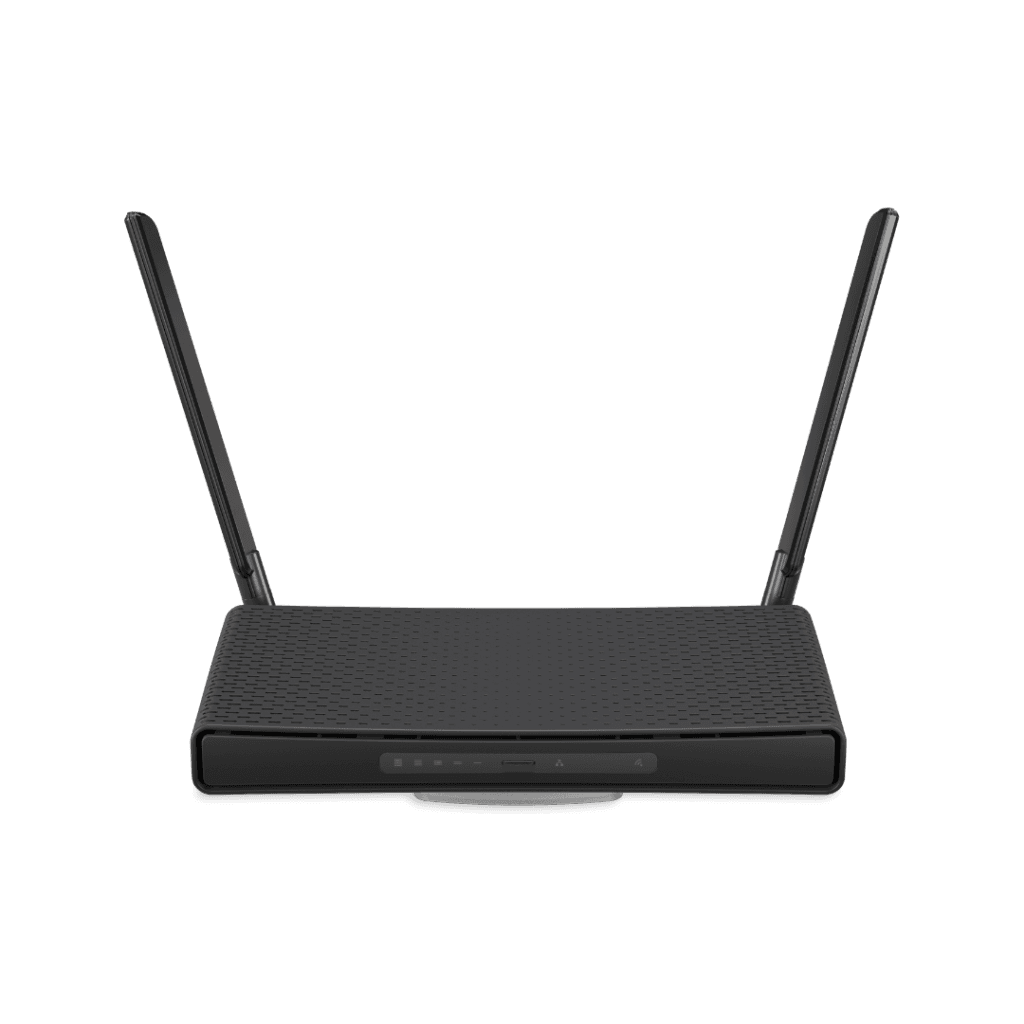

hAP ax³

The hAP ax³ is a high-performance home access point designed for ultimate speed and coverage, featuring a powerful quad-core ARM CPU, 1GB RAM, and advanced AX wireless technology. With up to 40% faster speeds on 5GHz and 90% on 2.4GHz, plus potent external antennas, it ensures seamless streaming, gaming, and browsing for the whole household. Equipped with Gigabit and 2.5G Ethernet ports, robust security features, and the advanced RouterOS system, it delivers a reliable, secure, and subscription-free networking experience.

Specifications

Details
Product codeC53UiG+5HPaxD2HPaxD
ArchitectureARM 64bit
CPUIPQ-6010
CPU core count4
CPU nominal frequencyauto (864 - 1800) MHz
Switch chip modelIPQ-6010
RouterOS license6
Operating System RouterOS v7
Size of RAM1 GB
Storage size128 MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 70°C
IPsec hardware accelerationYes
Suggested price$139.00

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate574 Mbit/s
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz3.3
Wireless 2.4 GHz chip modelQCN-5022
Wireless 2.4 GHz generationWi-Fi 6
Wireless 5 GHz Max data rate1200 Mbit/s
Wireless 5 GHz number of chains2
Wireless 5 GHz standards802.11a/n/ac/ax
Antenna gain dBi for 5 GHz5.5
Wireless 5 GHz chip modelQCN-5052
Wireless 5 GHz generationWi-Fi 6
WiFi speedAX1800

Ethernet

Details
10/100/1000 Ethernet ports4
Number of 1G Ethernet ports with PoE-out1
Number of 2.5G Ethernet ports1

Peripherals

Details
Number of USB ports1
USB Power ResetYes
USB slot typeUSB 3.0 type A
Max USB current (A)1.5

Powering

Details
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-28 V
Max power consumption38 W
Max power consumption without attachments15 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage18-28 V

PoE-out

Details
PoE-out portsEther 1
PoE outPassive PoE
Max out per port output (input 18-30 V)0.625 A
Max total out (A)0.625 A
Total output current0.625
Total output power15

Certification & Approvals

Details
CertificationCE, FCC, IC, EAC, ROHS
IP20

Other

Details
CPU temperature monitorYes
Mode buttonYes

Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s27-100
11MBit/s27-94
6MBit/s29-96
54MBit/s27-80
MCS029-96
MCS726-75
MCS924-70
MCS1122-67
5 GHzTransmit (dBm)Receive Sensitivity
6MBit/s28-96
54MBit/s26-80
MCS028-96
MCS725-75
MCS923-70
MCS1120-67

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
FCC Grant of Certification (2.4GHz)Open
FCC Grant of Certification (5GHz)Open
DimensionsOpen
Block DiagramOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)

Download: Full CE declaration (PDF)

Information about hAP ax³

[BG] BulgarianС настоящето, "Mikrotikls SIA", декларира, че hAP ax³ е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/53/EC.
[CZ] Czech"Mikrotikls SIA" tímto prohlašuje, že hAP ax³ splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 2014/53/ES.
[DK] DanishUndertegnede "Mikrotikls SIA" erklærer herved, at følgende udstyr hAP ax³ overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/53/EF.
[DE] GermanHiermit erklärt "Mikrotikls SIA", dass sich das Gerät hAP ax³ in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2014/53/EG befindet.
[EE] EstonianKäesolevaga kinnitab "Mikrotikls SIA" seadme hAP ax³ vastavust direktiivi 2014/53/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
[GR] GreekΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ "Mikrotikls SIA" ΔΗΛΩΝΕΙ ΟΤΙ hAP ax³ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/ΕΚ
[EN] EnglishHereby, "Mikrotikls SIA", declares that this hAP ax³ is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EC.
[ES] SpanishPor la presente, "Mikrotikls SIA", declara que este hAP ax³ cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 2014/53/EC.
[IT] ItalianCon la presente "Mikrotikls SIA" dichiara che questo hAP ax³ è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2014/53/CE.
[LV] LatvianAr šo "Mikrotikls SIA" deklarē, ka hAP ax³ atbilst Direktīvas 2014/53/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
[LT] LithuanianŠiuo "Mikrotikls SIA" deklaruoja, kad šis hAP ax³ atitinka esminius reikalavimus ir kitas 2014/53/EB Direktyvos nuostatas
[HU] HungarianA "Mikrotikls SIA" ezzennel kijelenti, hogy a hAP ax³ típusú beren-dezés teljesíti az alapvető követelményeket és más 2014/53/EK irányelvben meghatározott vonatkozó rendelkezéseket.
[NL] DutchHierbij verklaart "Mikrotikls SIA" dat het toestel l hAP ax³ in overeenstemming is met de essentiële eisen en de andere relevante bepalin-gen van richtlijn 2014/53/EG.
[PL] PolishNiniejszym "Mikrotikls SIA" deklaruje że hAP ax³ jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy 2014/53/EC.
[PT] PortugueseEu, "Mikrotikls SIA", declaro que o hAP ax³ cumpre os requisitos essenciais e outras provisões relevantes da Directiva 2014/53/EC.
[RO] RomanianPrin prezenta, "Mikrotikls SIA", declară că aparatul hAP ax³ este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 2014/53/CE.
[SK] Slovak"Mikrotikls SIA" týmto vyhlasuje, že hAP ax³ spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 2014/53/ES.
[SI] Slovenian"Mikrotikls SIA" izjavlja, da je ta hAP ax³ v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 2014/53/ES.
[FI] Finish"Mikrotikls SIA" vakuuttaa täten että hAP ax³ tyyppinen laite on direktiivin 2014/53/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
[SE] SwedishDenna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta bestämmelser i direktiv 2014/53/EC.
[NO] Norwegian"Mikrotikls SIA", Erklærer herved at hAP ax³ er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EF.
×
