C52iG-5HaxD2HaxD-TC

ROSE Data server (RDS)

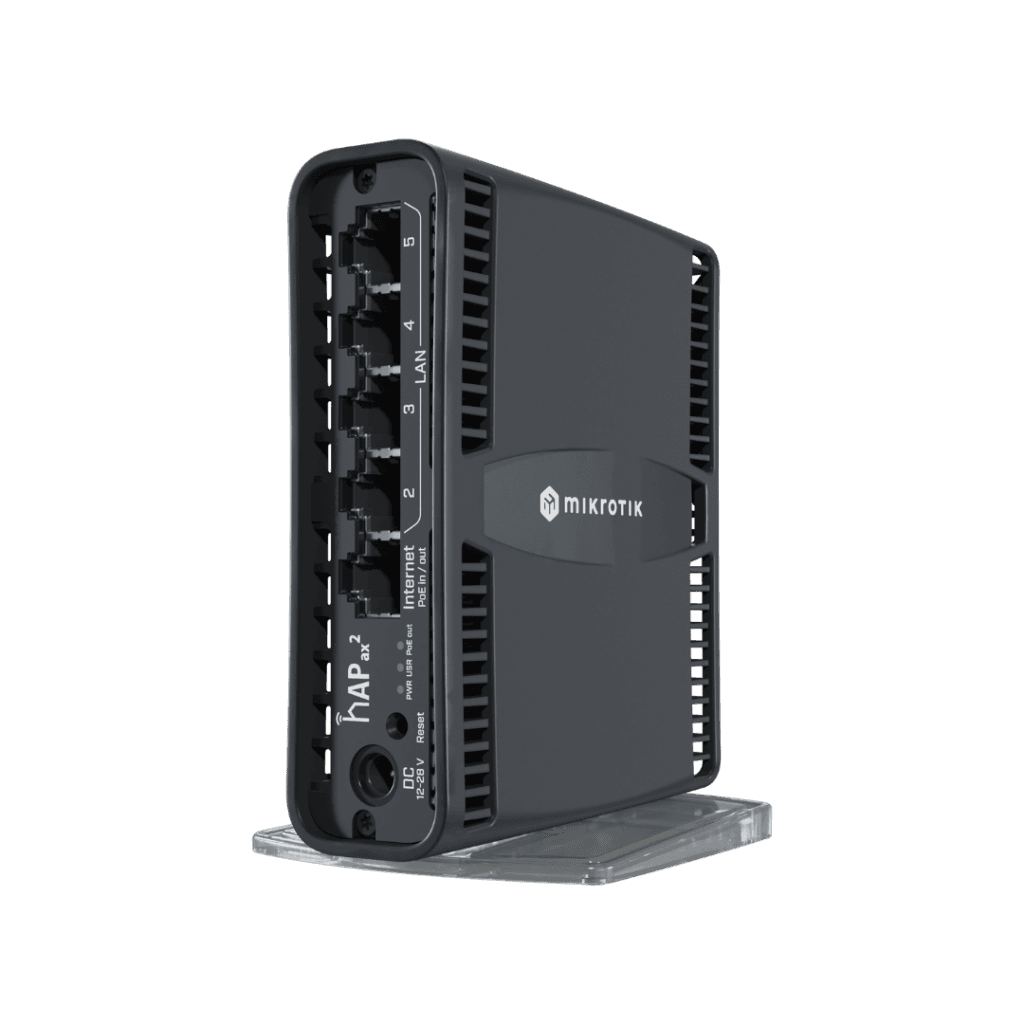

A Generation 6 version of the legendary hAP ac². With PoE-in and PoE-out, much faster wireless, more RAM,
and a modern CPU. The smallest fully-fledged AX router on the market!


The hAP ax² is a powerful dual-band Wi-Fi 6 access point, delivering up to 90% faster 2.4 GHz and 40% faster
5 GHz speeds compared to previous generations—perfect for modern home networks. With a fast quad-core
CPU, 1 GB RAM, WPA3 security, and flexible mounting options, it’s built to handle everything from media
streaming to advanced RouterOS features. Simple, reliable, and future-ready, the hAP ax² is an ideal all-in-one
solution for most households.

Specifications

Details
Product codeC52iG-5HaxD2HaxD-TC
ArchitectureARM 64bit
CPUIPQ-6010
CPU core count4
CPU nominal frequency864 MHz
Switch chip modelIPQ-6010
RouterOS license4
Operating System RouterOS v7
Size of RAM1 GB
Storage size128 MB
Storage typeNAND
MTBFApproximately 100'000 hours at 25C
Tested ambient temperature-40°C to 50°C
IPsec hardware accelerationYes
Suggested price$99.00

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate574 Mbit/s
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz4
Wireless 2.4 GHz chip modelQCN-5022
Wireless 2.4 GHz generationWi-Fi 6
Wireless 5 GHz Max data rate1200 Mbit/s
Wireless 5 GHz number of chains2
Wireless 5 GHz standards802.11a/n/ac/ax
Antenna gain dBi for 5 GHz4.5
Wireless 5 GHz chip modelQCN-5052
Wireless 5 GHz generationWi-Fi 6
WiFi speedAX1800

Ethernet

Details
10/100/1000 Ethernet ports5
Number of 1G Ethernet ports with PoE-out1

Powering

Details
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-28 V
Max power consumption27 W
Max power consumption without attachments12 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage18-28 V

PoE-out

Details
PoE-out portsEther 1
PoE outPassive PoE
Max out per port output (input 18-30 V)600 mA
Max total out (A)0.6 A
Total output current0.6
Total output power16.8W

Certification & Approvals

Details
CertificationCE, FCC, IC, EAC, ROHS
IP20

Other

Details
CPU temperature monitorYes
Mode buttonYes

Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s27-100
11MBit/s27-94
6MBit/s27-96
54MBit/s25-80
MCS027-96
MCS724-75
MCS922-70
MCS1120-67
5 GHzTransmit (dBm)Receive Sensitivity
6MBit/s26-96
54MBit/s23-80
MCS026-96
MCS722-75
MCS920-70
MCS1118-67

Included parts

BrochureOpen
Quick GuideOpen
User ManualOpen
Block DiagramOpen
DimensionsOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)

Download: Full CE declaration (PDF)
